GE
Countertop Microwave

Model # JE740WW01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE740WW01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Switch WB24X0801
#1445

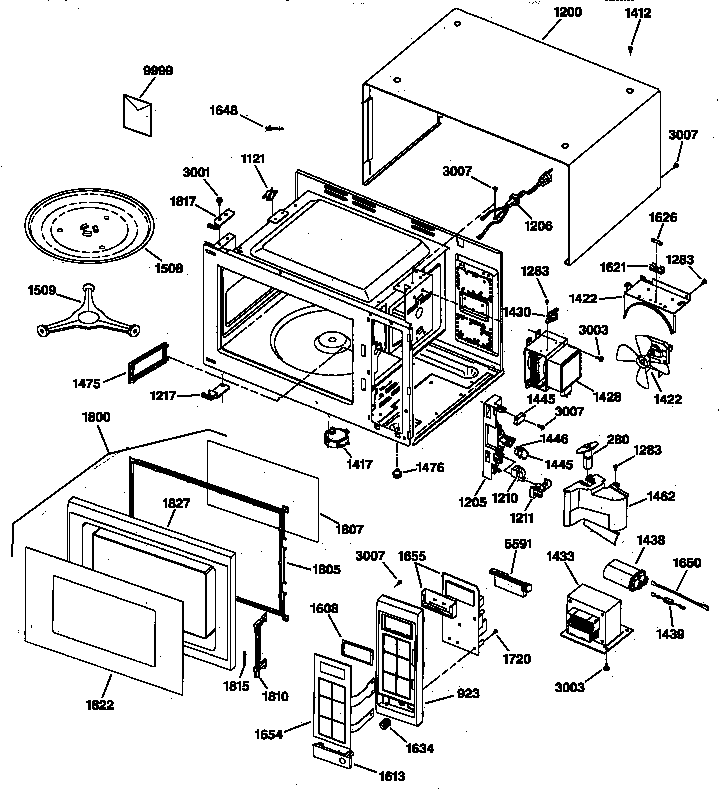

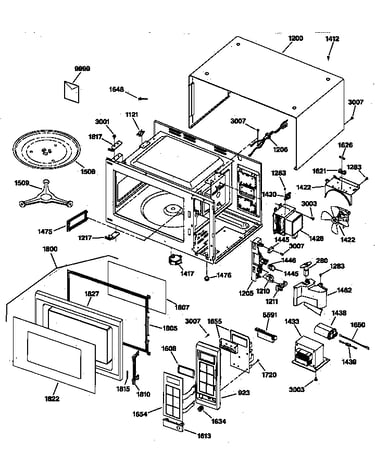

Microwave parts diagram

Switch

Part #WB24X0801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Switch WB24X0800
#1446

Microwave parts diagram

Switch

Part #WB24X0800

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0800. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
High-voltage Diode WB27X0944
#1439

Microwave parts diagram

High-voltage diode

Part #WB27X0944

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X0944. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Lamp WB36X0904
#280

Microwave parts diagram

Lamp

Part #WB36X0904

Replaced by #WB36X10194

?
Manufacturer substitution
This part replaces WB36X0904. Substitute parts can look different from the original.
$36.47 |
14% OFF Phone Price : $42.47
In Stock
Fuse WB27X0619
#1626

Microwave parts diagram

Fuse

Part #WB27X0619

Replaced by #WB27X7

?
Manufacturer substitution
This part replaces WB27X0619. Substitute parts can look different from the original.
$7.83 |
11% OFF Phone Price : $8.83
In Stock
Je 740 Gw Ww 49-8738
#9999A

Microwave parts diagram

Je 740 gw ww

Part #49-8738

$8.49
In Stock
Clip Plug Wh WB06X0321
#1412

Microwave parts diagram

Clip plug wh

Part #WB06X0321

Replaced by #WB6X321

?
Manufacturer substitution
This part replaces WB06X0321. Substitute parts can look different from the original.
$10.89
In Stock
Microwave Turntable Motor WB26X0172
#1417

Microwave parts diagram

Microwave turntable motor

Part #WB26X0172

Replaced by #WB26X172

?
Manufacturer substitution
This part replaces WB26X0172. Substitute parts can look different from the original.
$48.06 |
11% OFF Phone Price : $54.06
In Stock
Magnetron WB27X0706
#1428

Microwave parts diagram

Magnetron

Part #WB27X0706

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw WB01X1436
#3003

Microwave parts diagram

Washer screw

Part #WB01X1436

Replaced by #WB01X10084

?
Manufacturer substitution
This part replaces WB01X1436. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
