Amana
Countertop Microwave

Model # 90/46.500EVP Official Amana microwave

Here are the diagrams and repair parts for Official Amana 90-46500EVP microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Captive Nut, Panel Assembly Mounting M1D758
#43C

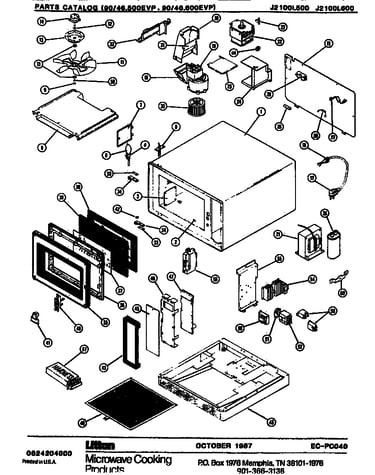

Replacement parts diagram

Captive nut, panel assembly mounting

Part #M1D758

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (all Evp Models) (includes Shelf, Sealan M77D148
#1A

Replacement parts diagram

Cavity assembly (all evp models) (includes shelf, sealan

Part #M77D148

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Transition Duct M65D347
#32

Replacement parts diagram

Exhaust transition duct

Part #M65D347

The manufacturer no longer makes this part, and there's no substitute part

H.v. Lead Kit M5D350
H.v. lead kit

Part #M5D350

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Motor (incl. Nos. 9 And 12) M12D115
#14A

Replacement parts diagram

Stirrer motor (incl. nos. 9 and 12)

Part #M12D115

The manufacturer no longer makes this part, and there's no substitute part

Gasket R.f. Sealing M2D152
#12

Replacement parts diagram

Gasket r.f. sealing

Part #M2D152

The manufacturer no longer makes this part, and there's no substitute part

Screw M1D888
Screw

Part #M1D888

The manufacturer no longer makes this part, and there's no substitute part

Shim M25D78
#33

Replacement parts diagram

Shim

Part #M25D78

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor (.600) M12D117
#18

Replacement parts diagram

Blower motor (.600)

Part #M12D117

The manufacturer no longer makes this part, and there's no substitute part

Baffle M65D344
#25A

Replacement parts diagram

Baffle

Part #M65D344

The manufacturer no longer makes this part, and there's no substitute part
