Model # OPTURA20A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon OPTURA20A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Cover Assembly DY1-8541-000
#200

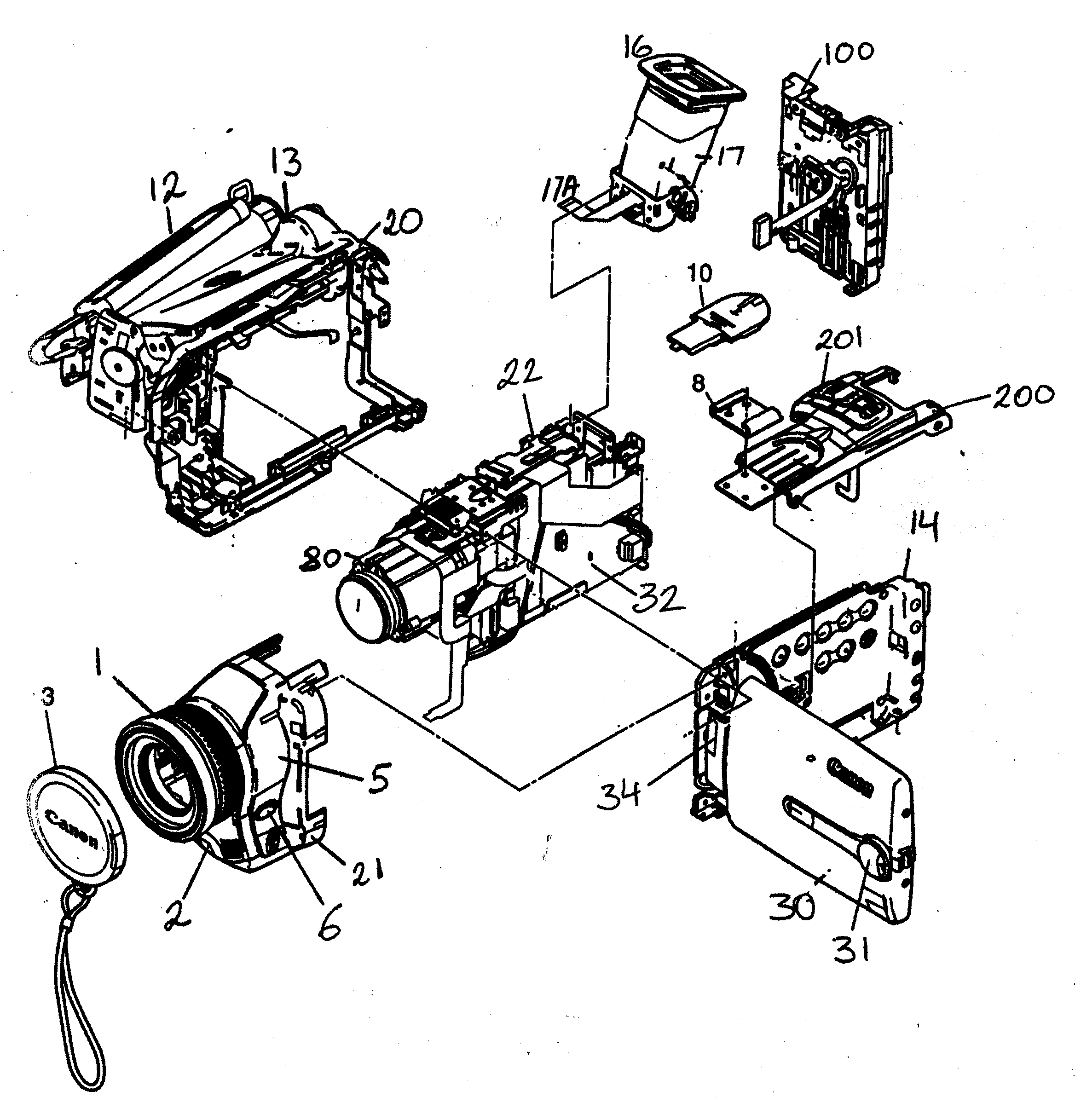

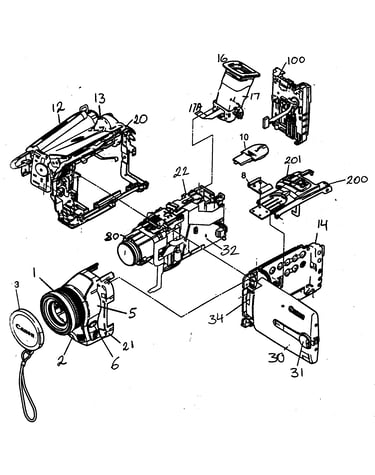

Cabinet parts diagram

Cover assembly

Part #DY1-8541-000

The manufacturer no longer makes this part, and there's no substitute part

Remote D83-0622-000
#NI

Cabinet parts diagram

Remote

Part #D83-0622-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DG3-0129-000
#NI

Cabinet parts diagram

Pcb assembly

Part #DG3-0129-000

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb DY1-8543-000
#32

Cabinet parts diagram

Main pcb

Part #DY1-8543-000

The manufacturer no longer makes this part, and there's no substitute part

Shldr Strp D81-1430-000
#NI

Cabinet parts diagram

Shldr strp

Part #D81-1430-000

The manufacturer no longer makes this part, and there's no substitute part

Motor DG1-4503-000
#NI

Cabinet parts diagram

Motor

Part #DG1-4503-000

The manufacturer no longer makes this part, and there's no substitute part

Battery Cover DY1-8528-000
#NI

Cabinet parts diagram

Battery cover

Part #DY1-8528-000

The manufacturer no longer makes this part, and there's no substitute part

Microphone Assembly DF1-5033-000
#NI

Cabinet parts diagram

Microphone assembly

Part #DF1-5033-000

The manufacturer no longer makes this part, and there's no substitute part

Knob DA3-0361-000
#NI

Cabinet parts diagram

Knob

Part #DA3-0361-000

The manufacturer no longer makes this part, and there's no substitute part

Drum Assembly DY1-8500-000
#NI

Cabinet parts diagram

Drum assembly

Part #DY1-8500-000

The manufacturer no longer makes this part, and there's no substitute part
