Kenmore
Electric Water Heater

Model # 183320711 Official Kenmore dual 14 electric water heater

Here are the diagrams and repair parts for Official Kenmore 183320711 dual 14 electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Gasket 053037
#3

Controls diagram

Gasket

Part #053037

Replaced by #100108379

?
Manufacturer substitution
This part replaces 053037. Substitute parts can look different from the original.
$33.33
In Stock
Screw #10 X 1 In, S.m. 161928
#14

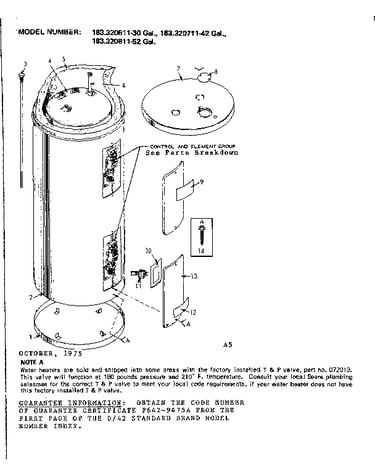

Replacement parts diagram

Screw #10 x 1 in, s.m.

Part #161928

The manufacturer no longer makes this part, and there's no substitute part

240 Volt 5000 Watt 074311
#2L

Controls diagram

240 volt 5000 watt

Part #074311

The manufacturer no longer makes this part, and there's no substitute part

Lower Temp 2 Pole W/hi Temp Limit 4 Pole 018030
#4

Controls diagram

Lower temp 2 pole w/hi temp limit 4 pole

Part #018030

The manufacturer no longer makes this part, and there's no substitute part

Access Cover 119670
#13

Replacement parts diagram

Access cover

Part #119670

The manufacturer no longer makes this part, and there's no substitute part

Protector, Terminal 047096
#7

Controls diagram

Protector, terminal

Part #047096

The manufacturer no longer makes this part, and there's no substitute part

240 Volt 3500 Watt 074307
#2I

Controls diagram

240 volt 3500 watt

Part #074307

The manufacturer no longer makes this part, and there's no substitute part

Manual Owners F642-10975 029409

#NI

All parts diagram

Manual owners f642-10975

Part #029409

The manufacturer no longer makes this part, and there's no substitute part

Anode, Magnesium N/P
Anode, magnesium

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

F/183.320710 013144
#5B

Replacement parts diagram

F/183.320710

Part #013144

The manufacturer no longer makes this part, and there's no substitute part
