Model # 143953507 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143953507 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

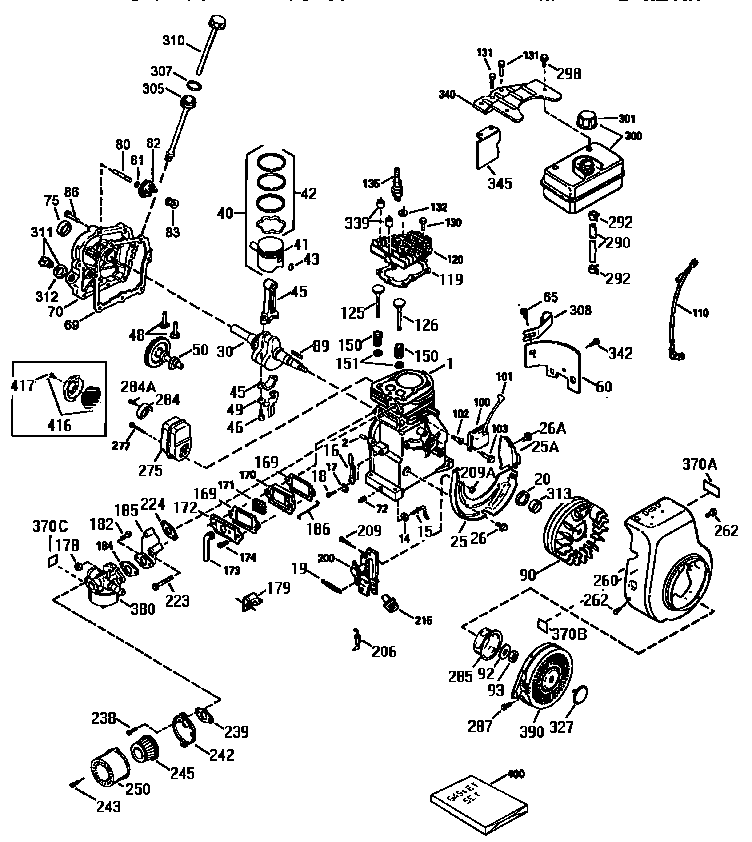

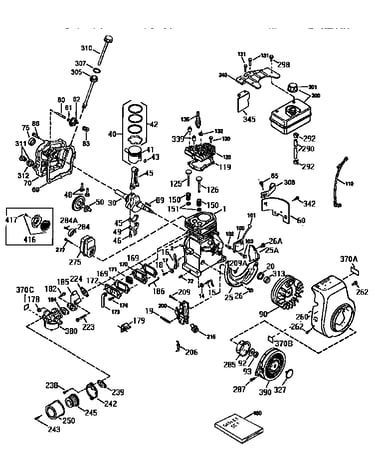

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Lawn Mower O-ring 631028
#29

Carburetor 632589 (71/143) diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Primer 36045
#35

Carburetor 632589 (71/143) diagram

Primer

Part #36045

Replaced by #36045A

?
Manufacturer substitution
This part replaces 36045. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.74 |
13% OFF Phone Price : $7.74
In Stock
Startrer 590695
#11

Rewind starter diagram

Startrer

Part #590695

Replaced by #590785

?
Manufacturer substitution
This part replaces 590695. Substitute parts can look different from the original.
BEST SELLER
$29.58 |
17% OFF Phone Price : $35.58
Back Order
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#290

Replacement parts diagram

Generac lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Gasket 27110
#44

Carburetor 632589 (71/143) diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#292

Replacement parts diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap 35355
#301

Replacement parts diagram

Lawn & garden equipment engine fuel tank cap

Part #35355

Replaced by #37845

?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Generac Lawn & Garden Equipment Engine Stop Wire Terminal 610973
#206

Replacement parts diagram

Generac lawn & garden equipment engine stop wire terminal

Part #610973

This item is not returnable
$4.11 |
20% OFF Phone Price : $5.11
Back Order
Troybilt Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 632808) 631867
#25

Carburetor 632589 (71/143) diagram

Troybilt lawn & garden equipment engine carburetor float bowl (replaces 631025, 632808)

Part #631867

This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
Back Order
