Frigidaire
Countertop Microwave

Model # MC590E2 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire MC590E2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

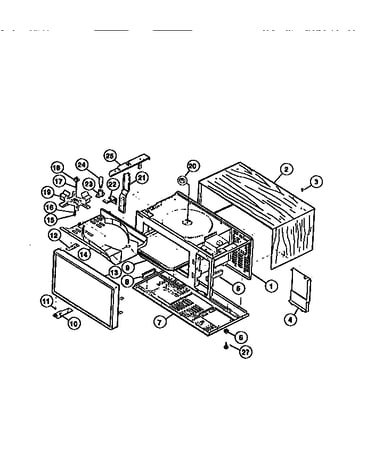

Spacer, Foot 08037530
#6

Oven chassis diagram

Spacer, foot

Part #08037530

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 08037523
#2

Oven chassis diagram

Wrapper

Part #08037523

The manufacturer no longer makes this part, and there's no substitute part

Washer, Hinge (non-illustrated) 08037587
#25A

Oven chassis diagram

Washer, hinge (non-illustrated)

Part #08037587

The manufacturer no longer makes this part, and there's no substitute part

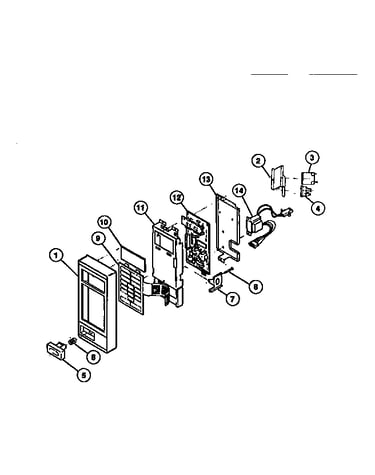

Touch Panel, Switch 08037998
#9

Control panel diagram

Touch panel, switch

Part #08037998

The manufacturer no longer makes this part, and there's no substitute part

Circuit Board 3012165
#12A

Control panel diagram

Circuit board

Part #3012165

The manufacturer no longer makes this part, and there's no substitute part

Door Release Lever 08037557
#2

Magnetron diagram

Door release lever

Part #08037557

The manufacturer no longer makes this part, and there's no substitute part

Light Socket 08037521
#23

Oven chassis diagram

Light socket

Part #08037521

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness (non-illustrated) 08037609
#22B

Magnetron diagram

Wire harness (non-illustrated)

Part #08037609

The manufacturer no longer makes this part, and there's no substitute part

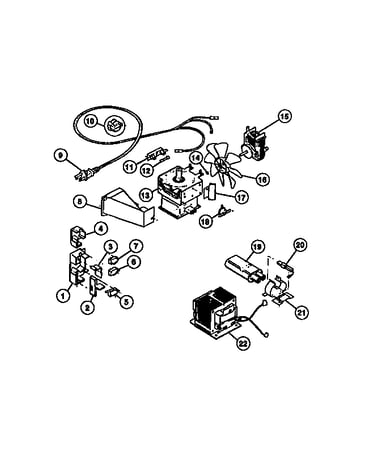

Magnetron 08037541
#13

Magnetron diagram

Magnetron

Part #08037541

The manufacturer no longer makes this part, and there's no substitute part

Foot Screw 08037592
#27

Oven chassis diagram

Foot screw

Part #08037592

The manufacturer no longer makes this part, and there's no substitute part
