Wall Oven/Microwave Combo

Model # FDO-250-2D Official Modern Maid electric self-cleaning wall oven - fdo-250-2d fdo-250-2w

Here are the diagrams and repair parts for Official Modern Maid FDO-250-2D electric self-cleaning wall oven - fdo-250-2d fdo-250-2w, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

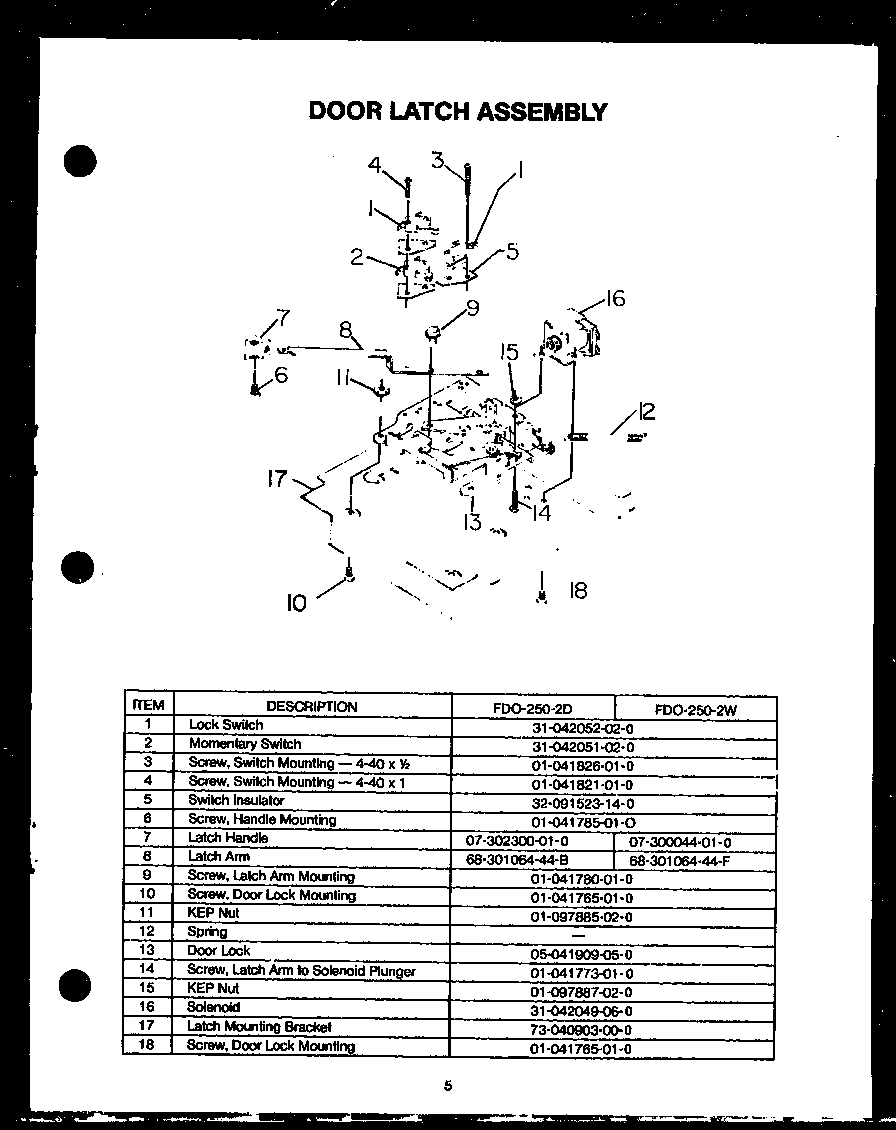

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Fan Motor Mount 73-062140-00-0
#7

Control compartment section diagram

Fan motor mount

Part #73-062140-00-0

The manufacturer no longer makes this part, and there's no substitute part

Window Assembly 83-041491-07-0
#8

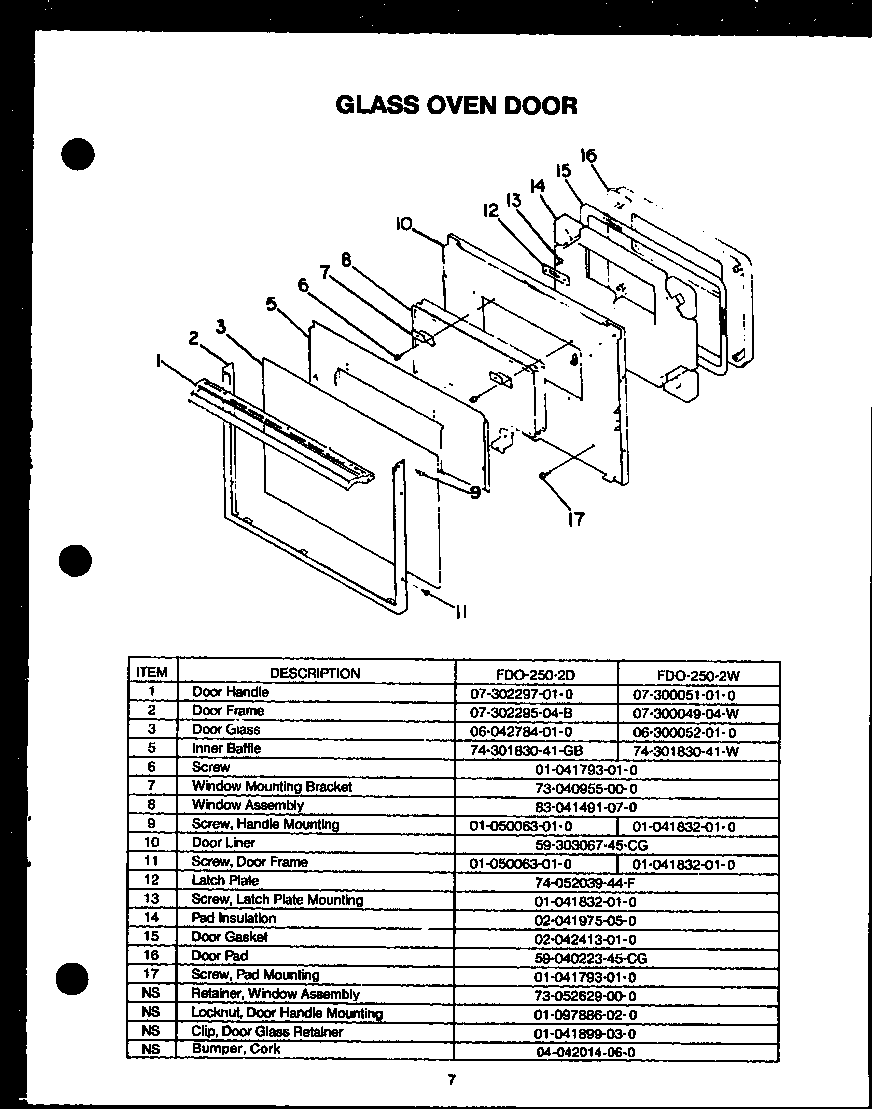

Glass oven door diagram

Window assembly

Part #83-041491-07-0

The manufacturer no longer makes this part, and there's no substitute part

Door Spring Rod Bracket 73-040990-00-0
#13

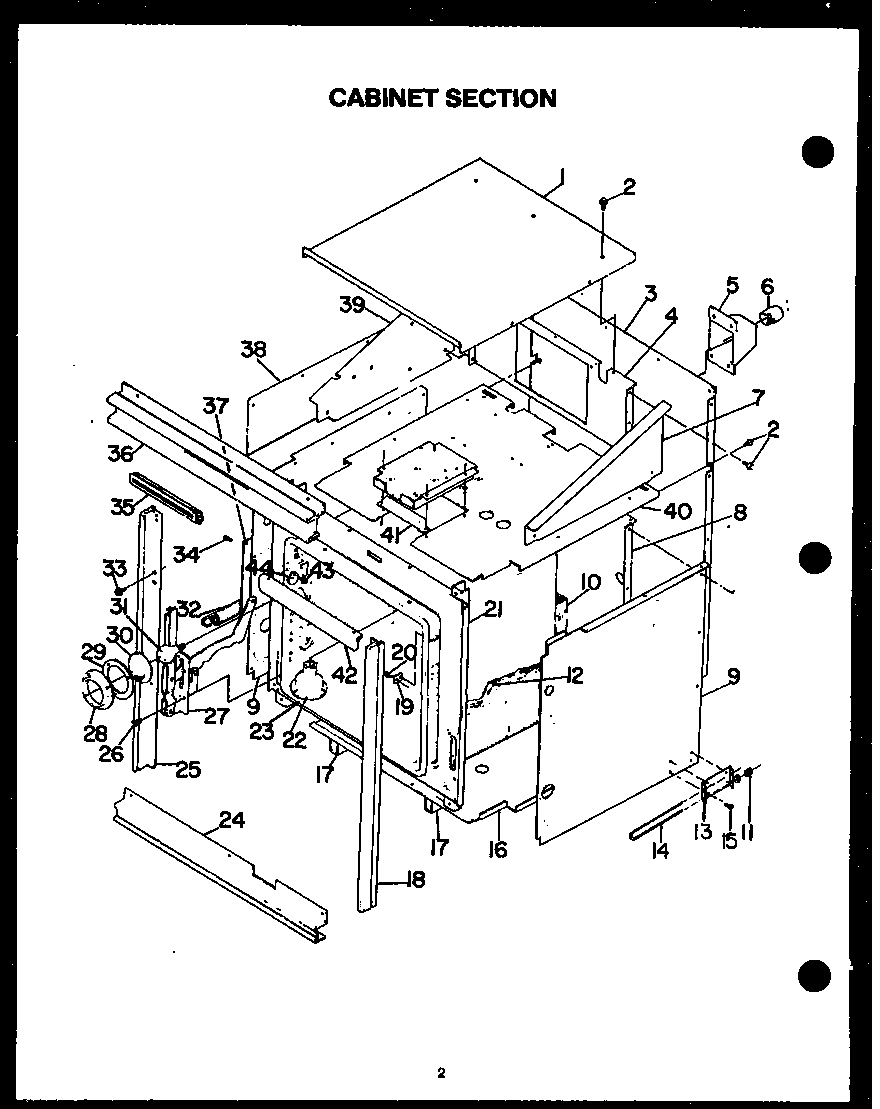

Cabinet section diagram

Door spring rod bracket

Part #73-040990-00-0

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Back 64-059744-00-0
#3

Cabinet section diagram

Cabinet back

Part #64-059744-00-0

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 31-042226-03-0
#14

Control compartment section diagram

Fan motor

Part #31-042226-03-0

The manufacturer no longer makes this part, and there's no substitute part

Main Front 52-040150-45-CG
#21

Cabinet section diagram

Main front

Part #52-040150-45-CG

The manufacturer no longer makes this part, and there's no substitute part

Control Mounting Bracket 73-302105-41-GB
#1

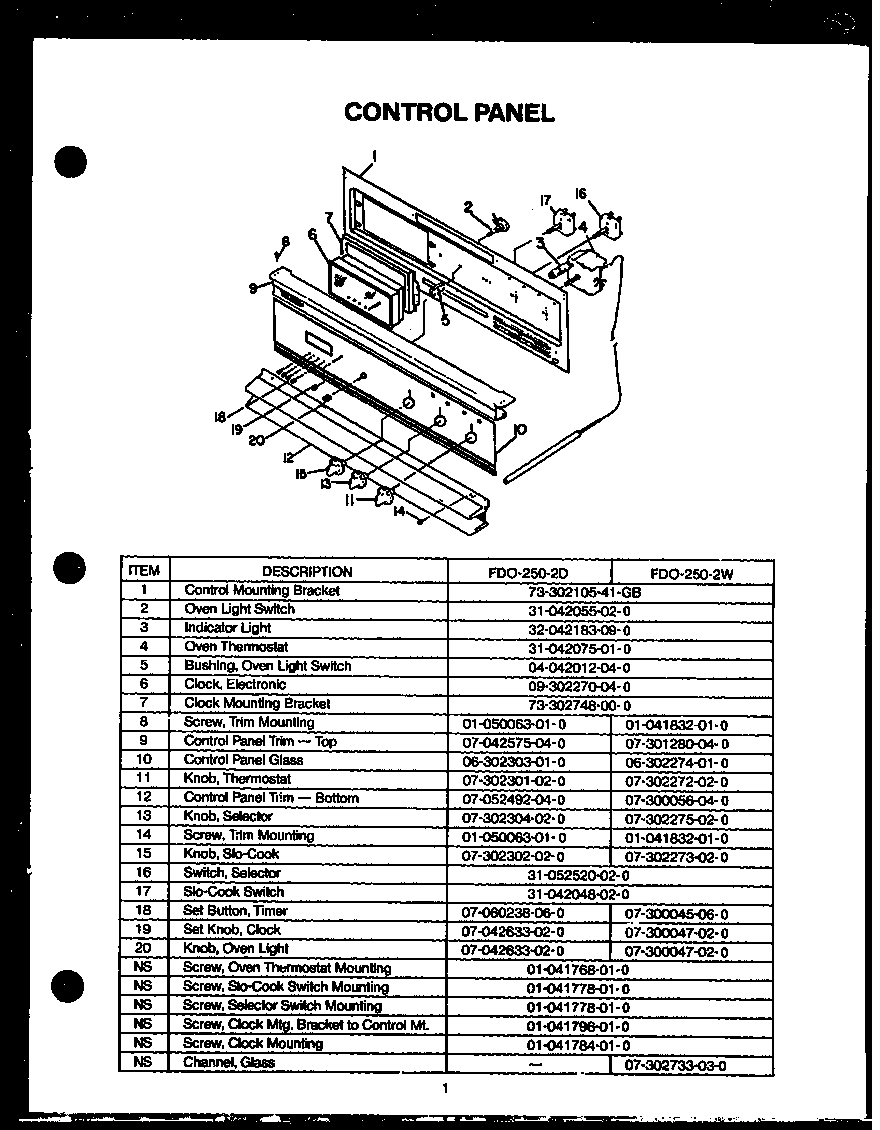

Control panel diagram

Control mounting bracket

Part #73-302105-41-GB

The manufacturer no longer makes this part, and there's no substitute part

Bottom Trim 07-042576-04-0
#24A

Cabinet section diagram

Bottom trim

Part #07-042576-04-0

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Mounting Bracket, Front 73-040907-00-0
#7

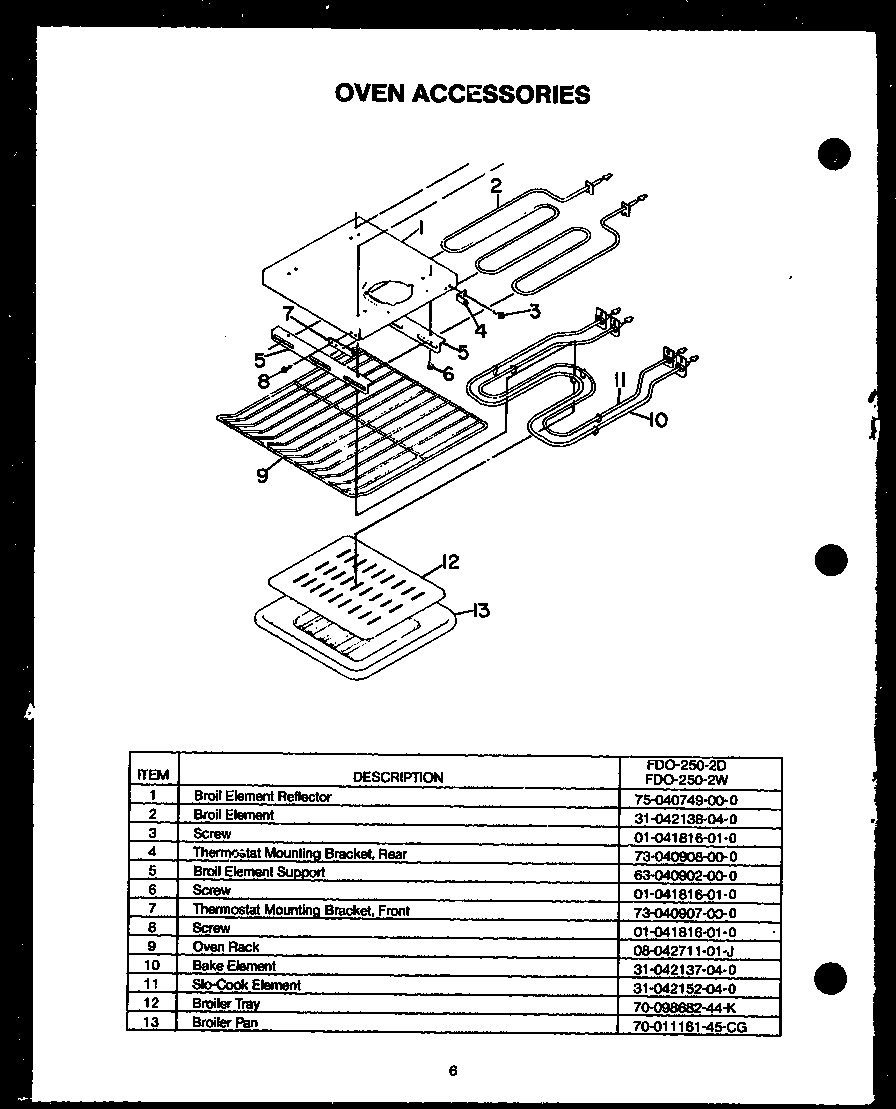

Oven accessories diagram

Thermostat mounting bracket, front

Part #73-040907-00-0

The manufacturer no longer makes this part, and there's no substitute part

Side Trim - Rt. 07-301278-04-0
#18B

Cabinet section diagram

Side trim - rt.

Part #07-301278-04-0

The manufacturer no longer makes this part, and there's no substitute part
