Model # PEB7227AN1DD Official GE built-in microwave

Here are the diagrams and repair parts for Official GE PEB7227AN1DD built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Microwave Door Interlock Switch (replaces Wb24x28941) WB24X10146
#1446

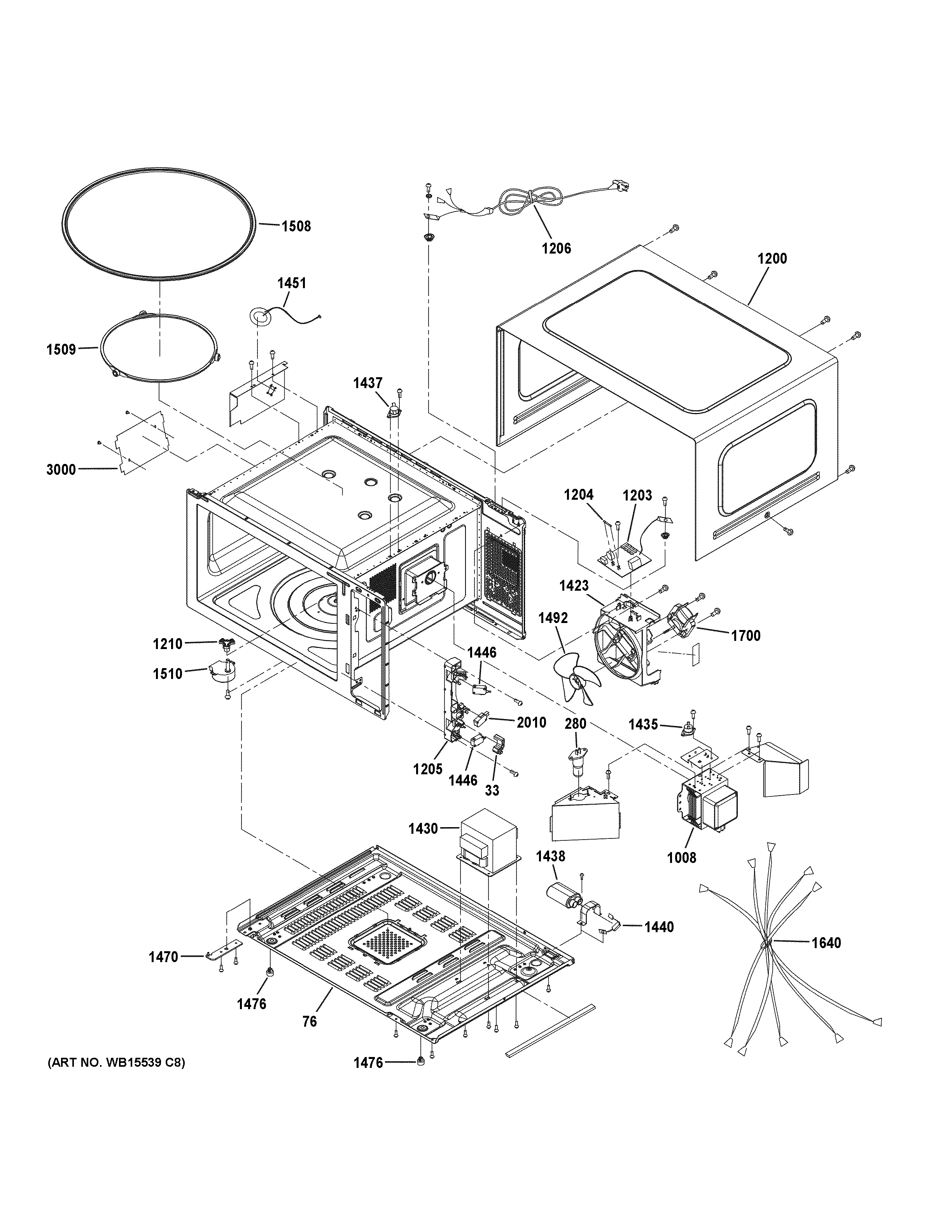

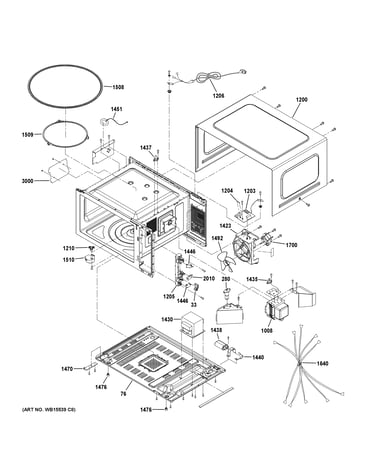

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x28941)

Part #WB24X10146

BEST SELLER
$32.79 |
15% OFF Phone Price : $38.79
In Stock
Microwave Door Interlock Switch Bracket WB14X10049
#1205

Oven cavity parts diagram

Microwave door interlock switch bracket

Part #WB14X10049

BEST SELLER
$39.59 |
13% OFF Phone Price : $45.59
In Stock
Microwave Door Interlock Switch WB24X10190
#2010

Oven cavity parts diagram

Microwave door interlock switch

Part #WB24X10190

BEST SELLER
$30.11 |
17% OFF Phone Price : $36.11
In Stock
Microwave Waveguide Cover WB39X10034
#3000

Oven cavity parts diagram

Microwave waveguide cover

Part #WB39X10034

BEST SELLER
This item is not returnable
$13.38 |
13% OFF Phone Price : $15.38
In Stock
Microwave Thermostat WB24X27107
#1437

Oven cavity parts diagram

Microwave thermostat

Part #WB24X27107

$65.59 |
8% OFF Phone Price : $71.59
In Stock
Push Button Bs WB03X29716
#6005

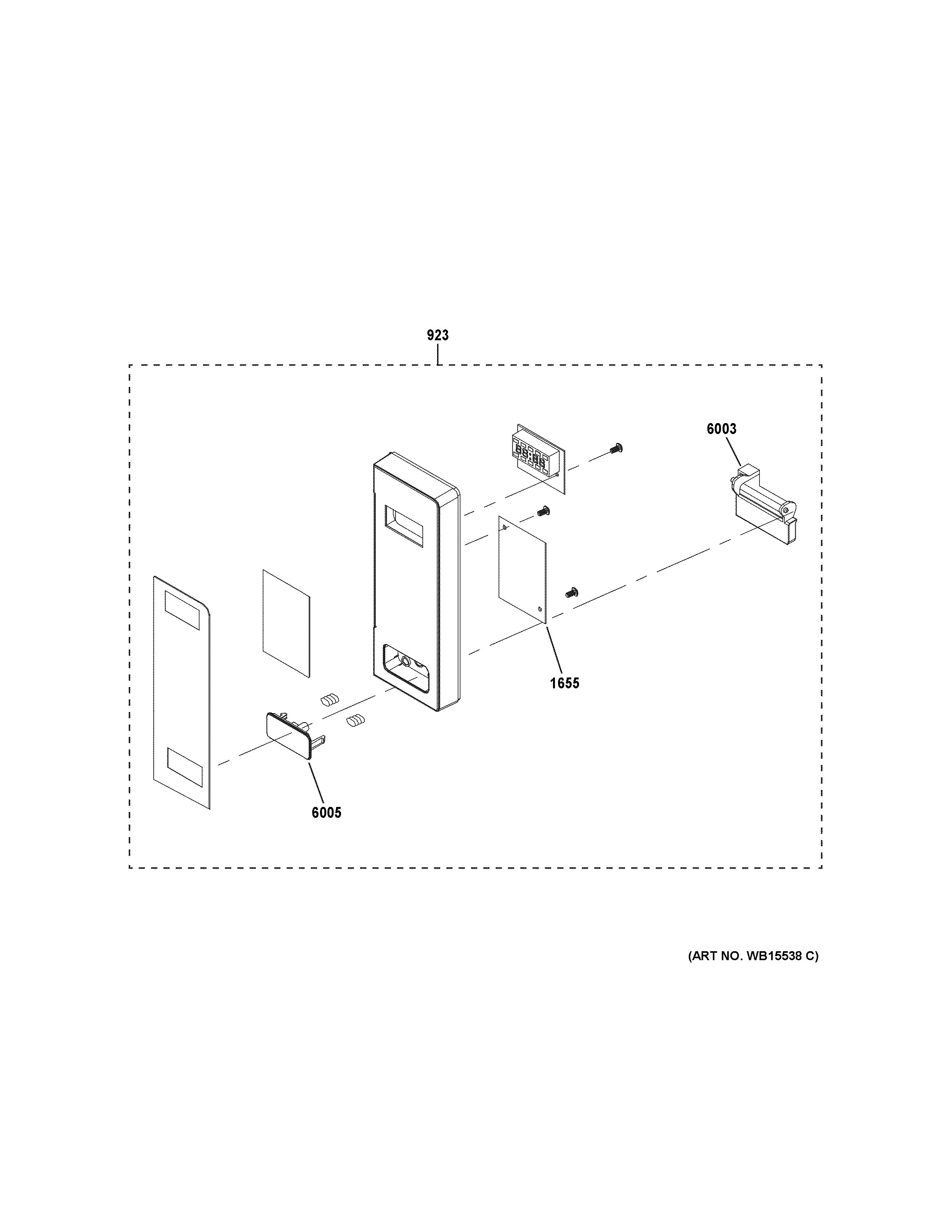

Control parts diagram

Push button bs

Part #WB03X29716

Replaced by #WB56X34974

?
Manufacturer substitution
This part replaces WB03X29716. Substitute parts can look different from the original.
$181.42
In Stock
Control Panel Asm Bs WB56X29713
#923

Control parts diagram

Control panel asm bs

Part #WB56X29713

Replaced by #WB56X34974

?
Manufacturer substitution
This part replaces WB56X29713. Substitute parts can look different from the original.
$181.42
In Stock
Lever Switch WB06X10864
#33

Oven cavity parts diagram

Lever switch

Part #WB06X10864

Replaced by #WB10X27080

?
Manufacturer substitution
This part replaces WB06X10864. Substitute parts can look different from the original.
$29.82 |
17% OFF Phone Price : $35.82
In Stock
Microwave Fuse WB02X30984
#1204

Oven cavity parts diagram

Microwave fuse

Part #WB02X30984

$19.36 |
9% OFF Phone Price : $21.36
In Stock
Door Asm Bs WB56X29714
#1800

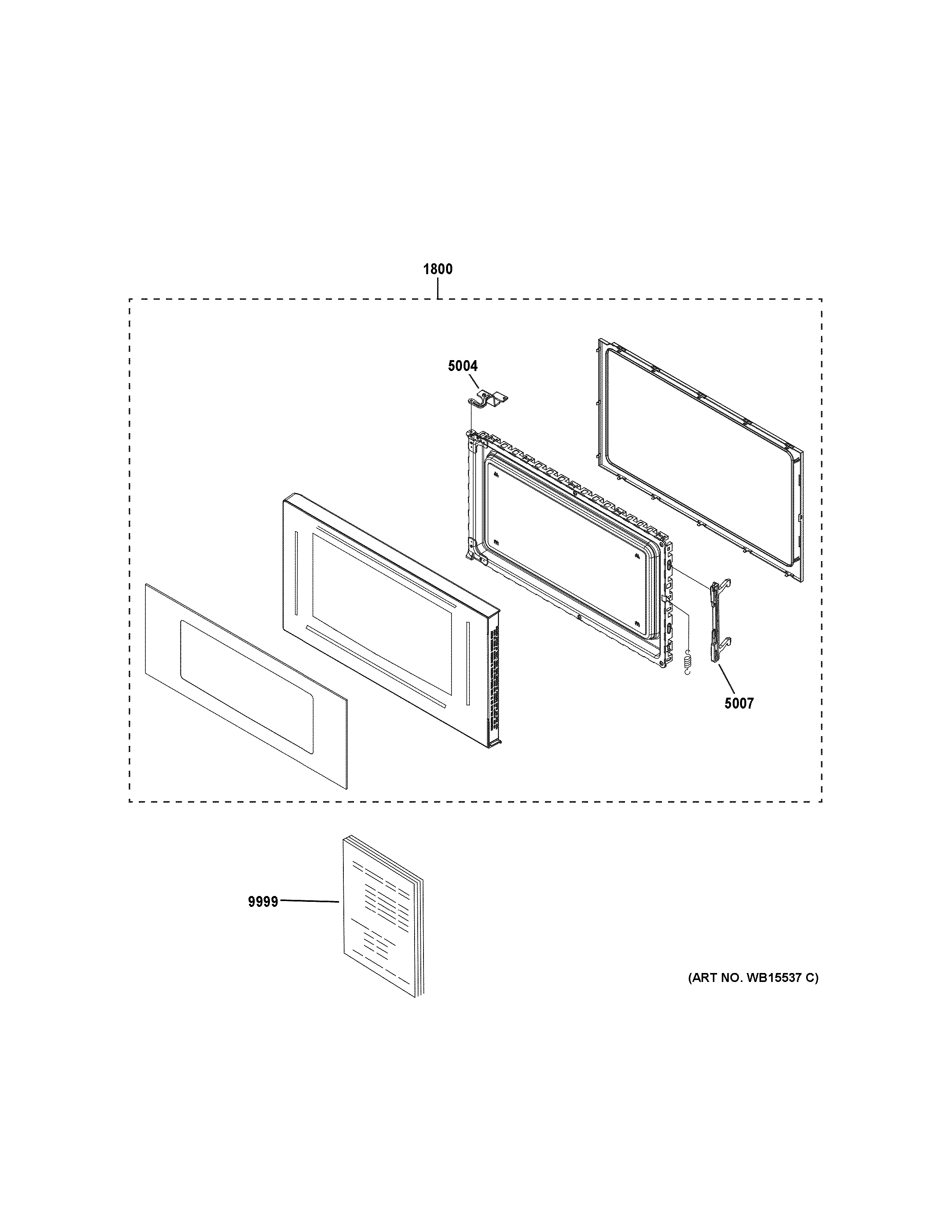

Door parts diagram

Door asm bs

Part #WB56X29714

Replaced by #WB56X34979

?
Manufacturer substitution
This part replaces WB56X29714. Substitute parts can look different from the original.
$141.64 |
8% OFF Phone Price : $153.64
In Stock
