Model # SCD353 Official Samsung digital camcorder

Here are the diagrams and repair parts for Official Samsung SCD353 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

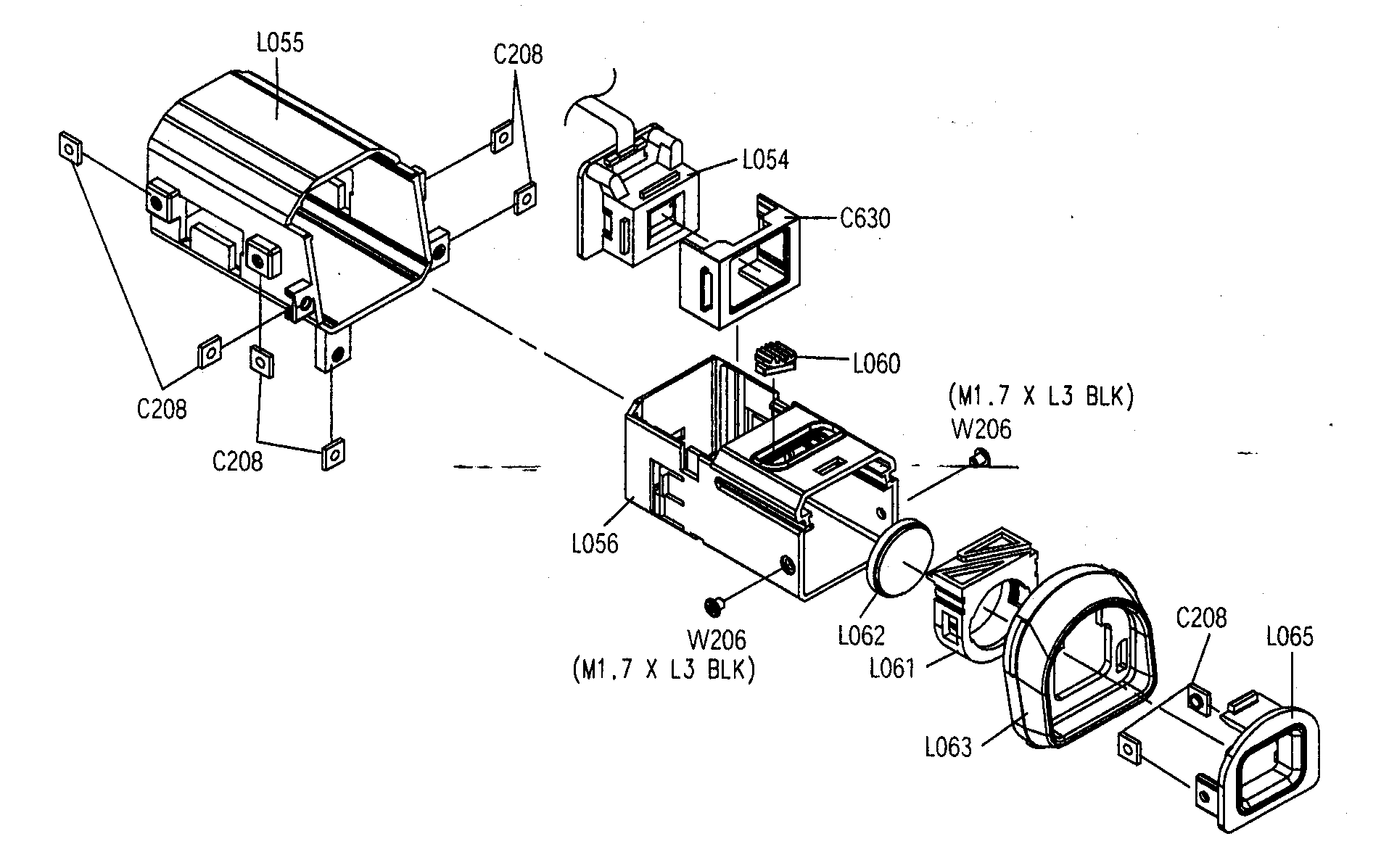

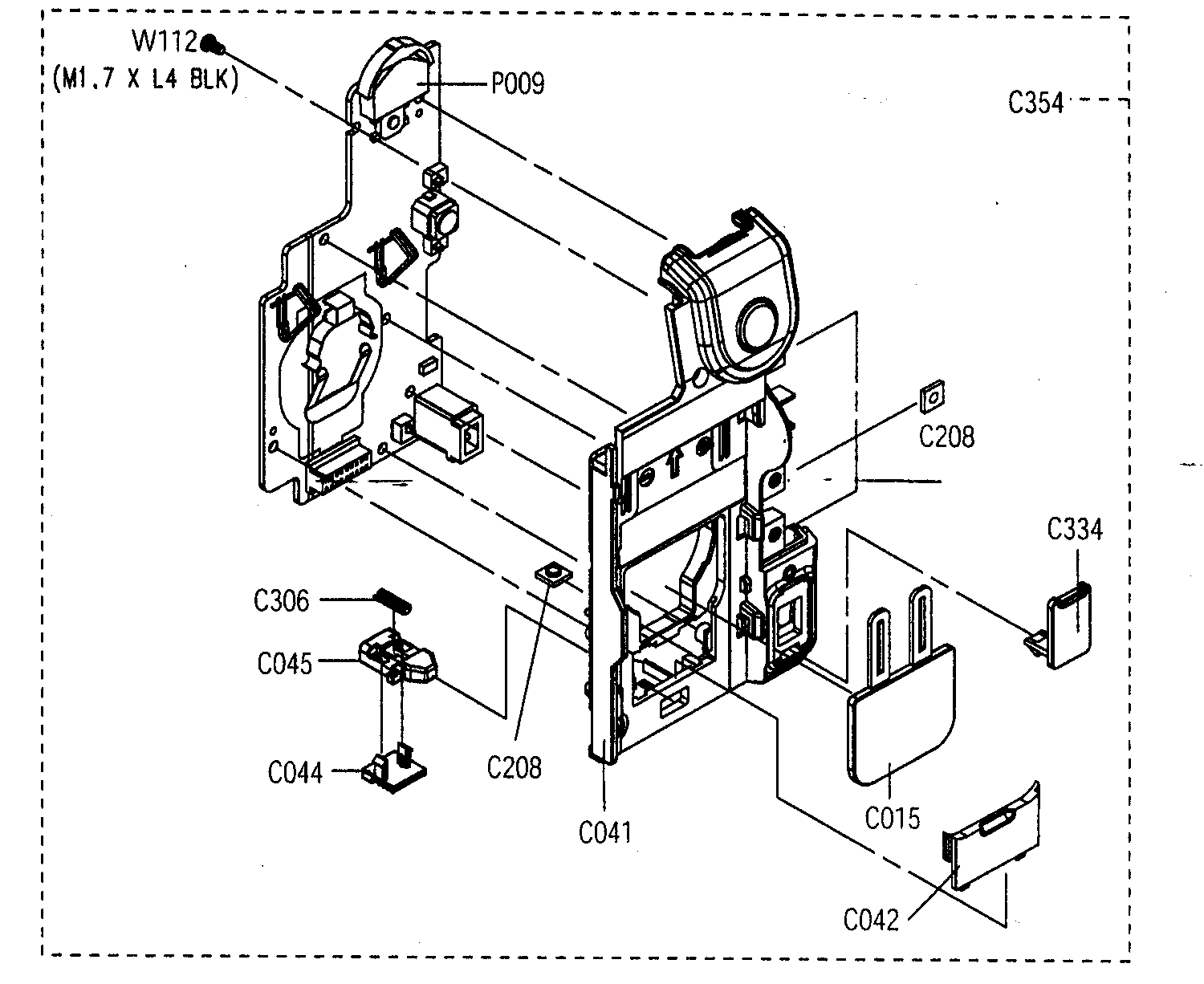

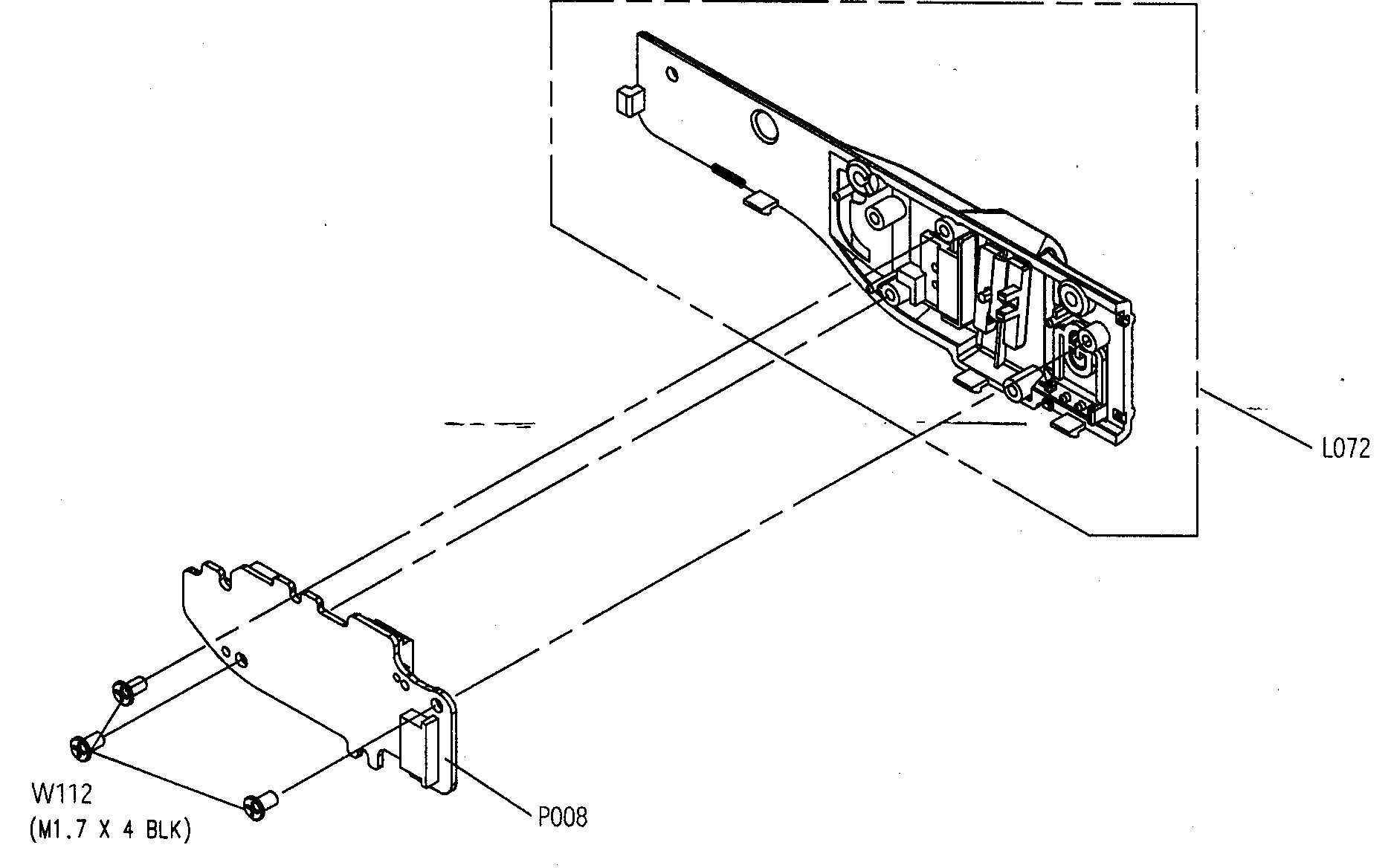

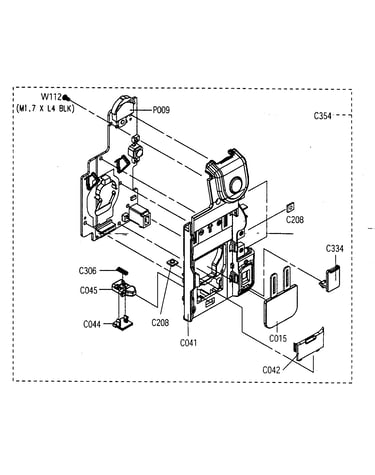

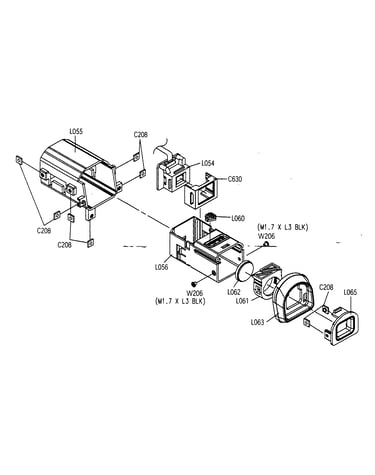

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Cover AD63-00714B
#625A

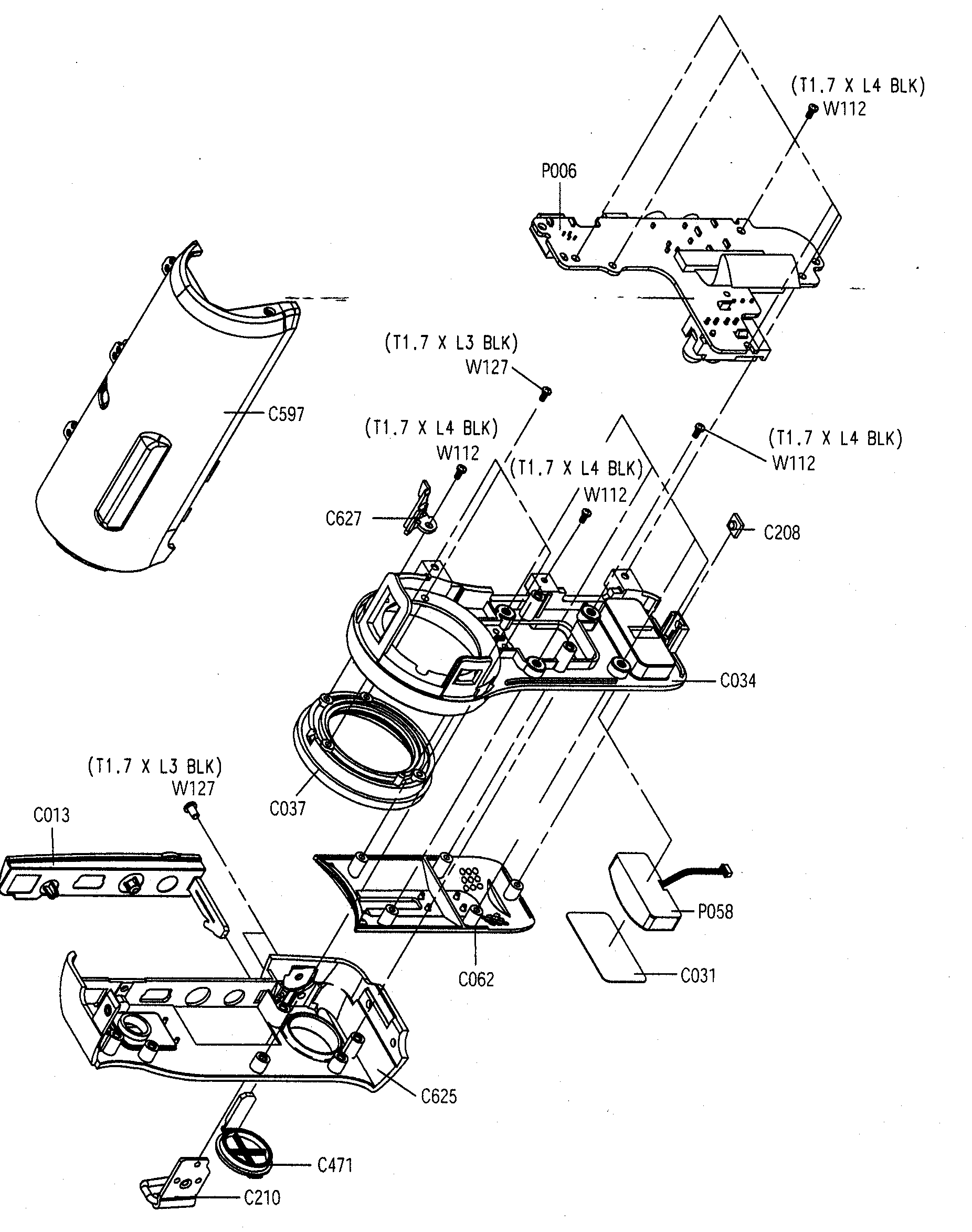

Front assy diagram

Cover

Part #AD63-00714B

The manufacturer no longer makes this part, and there's no substitute part

Inlay AD64-01332B
#L010

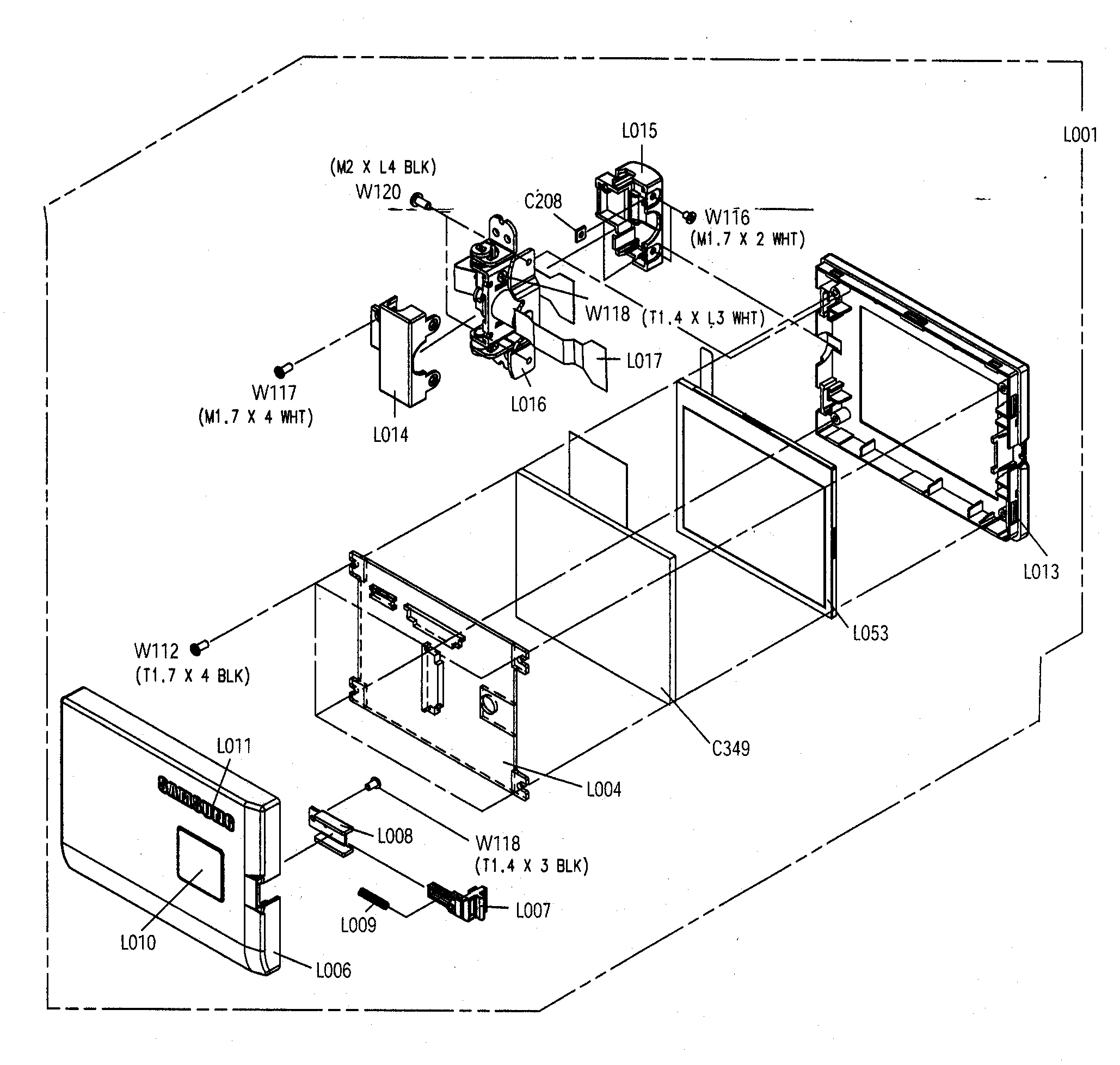

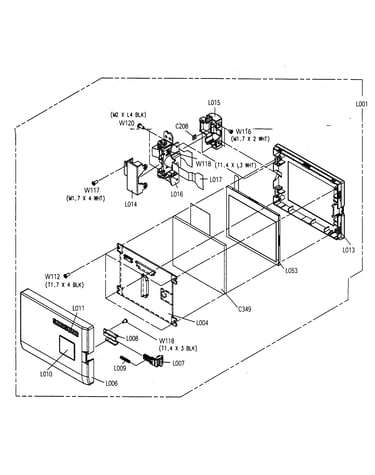

Lcd assy diagram

Inlay

Part #AD64-01332B

The manufacturer no longer makes this part, and there's no substitute part

Lens Assembly AD97-08324A
#P51

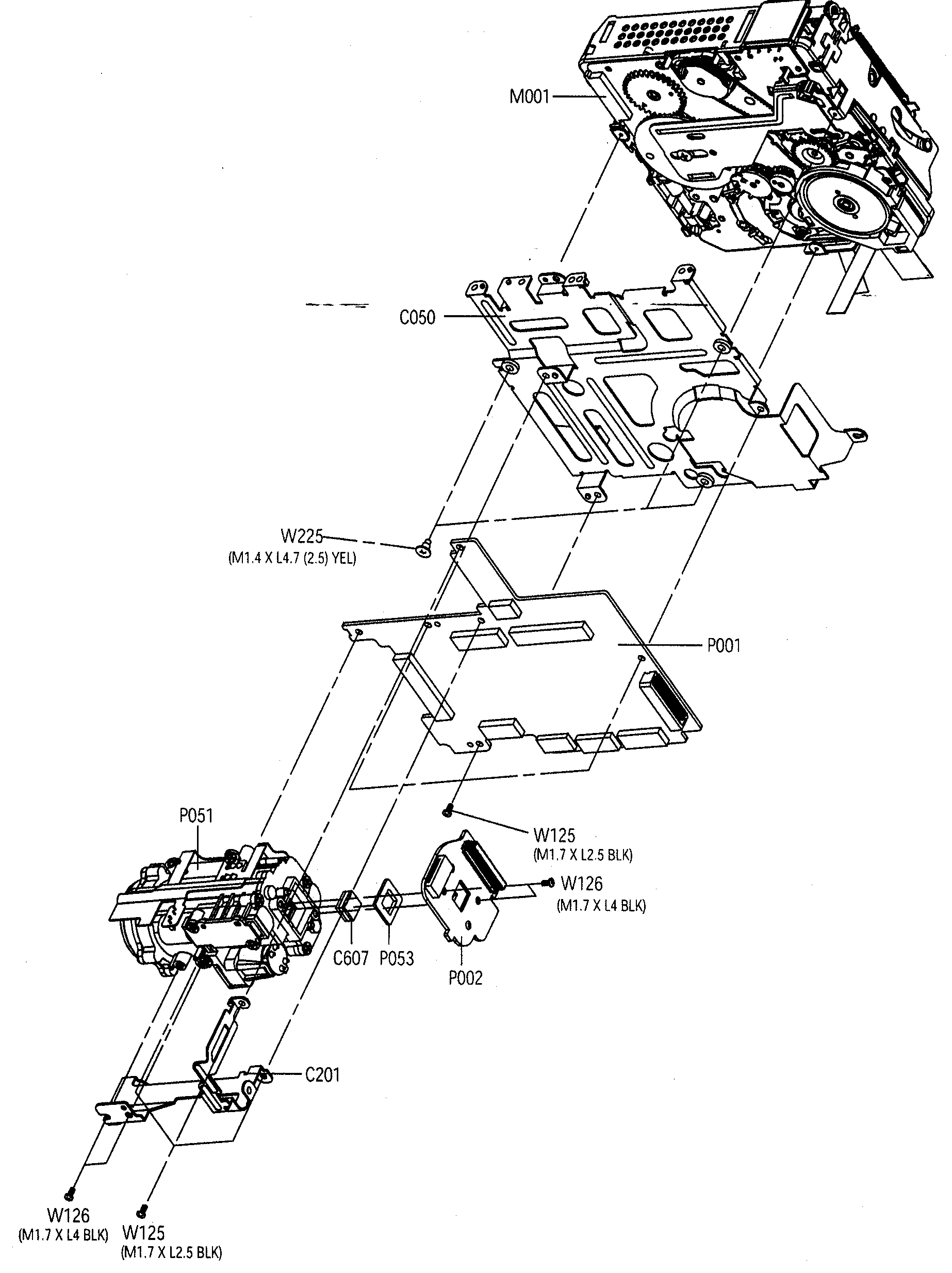

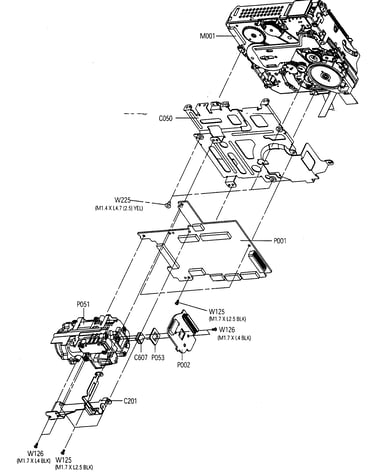

Chassis assy diagram

Lens assembly

Part #AD97-08324A

The manufacturer no longer makes this part, and there's no substitute part

Microphone AD97-08597A
#P058

Front assy diagram

Microphone

Part #AD97-08597A

The manufacturer no longer makes this part, and there's no substitute part

Cover,s AD63-00705A
#C471

Front assy diagram

Cover,s

Part #AD63-00705A

The manufacturer no longer makes this part, and there's no substitute part

Power Knob AD64-01321A
#C018

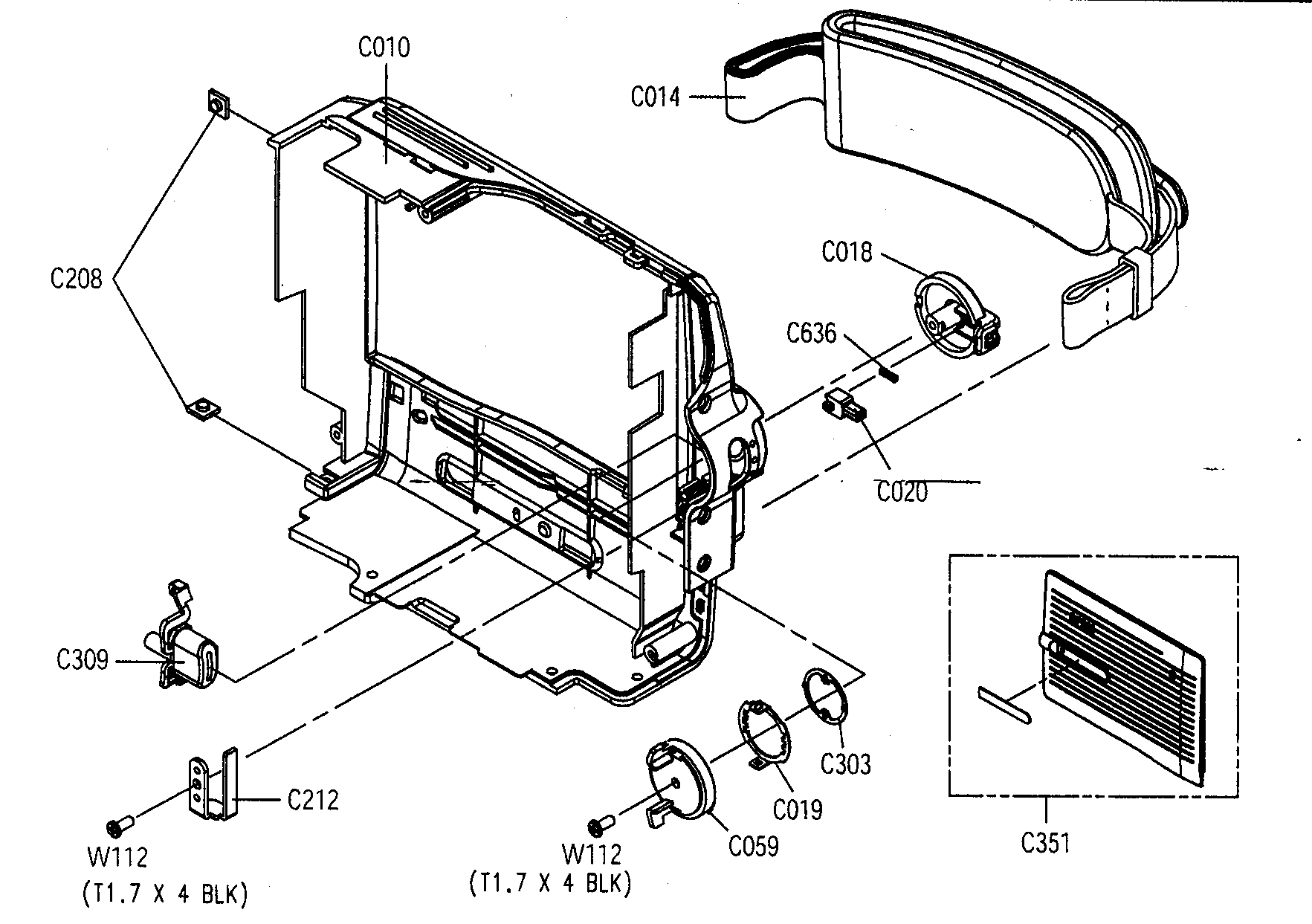

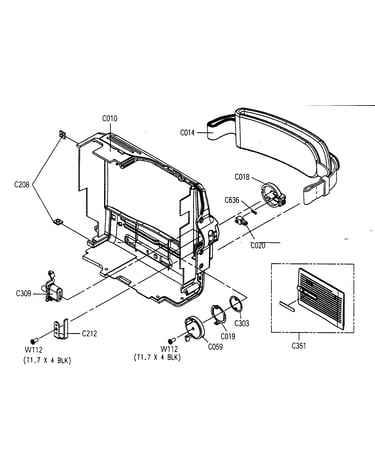

Right case assy diagram

Power knob

Part #AD64-01321A

The manufacturer no longer makes this part, and there's no substitute part

Knob AD64-01319A
#C053

Front assy diagram

Knob

Part #AD64-01319A

The manufacturer no longer makes this part, and there's no substitute part

Function Button AD64-01315A
#C623

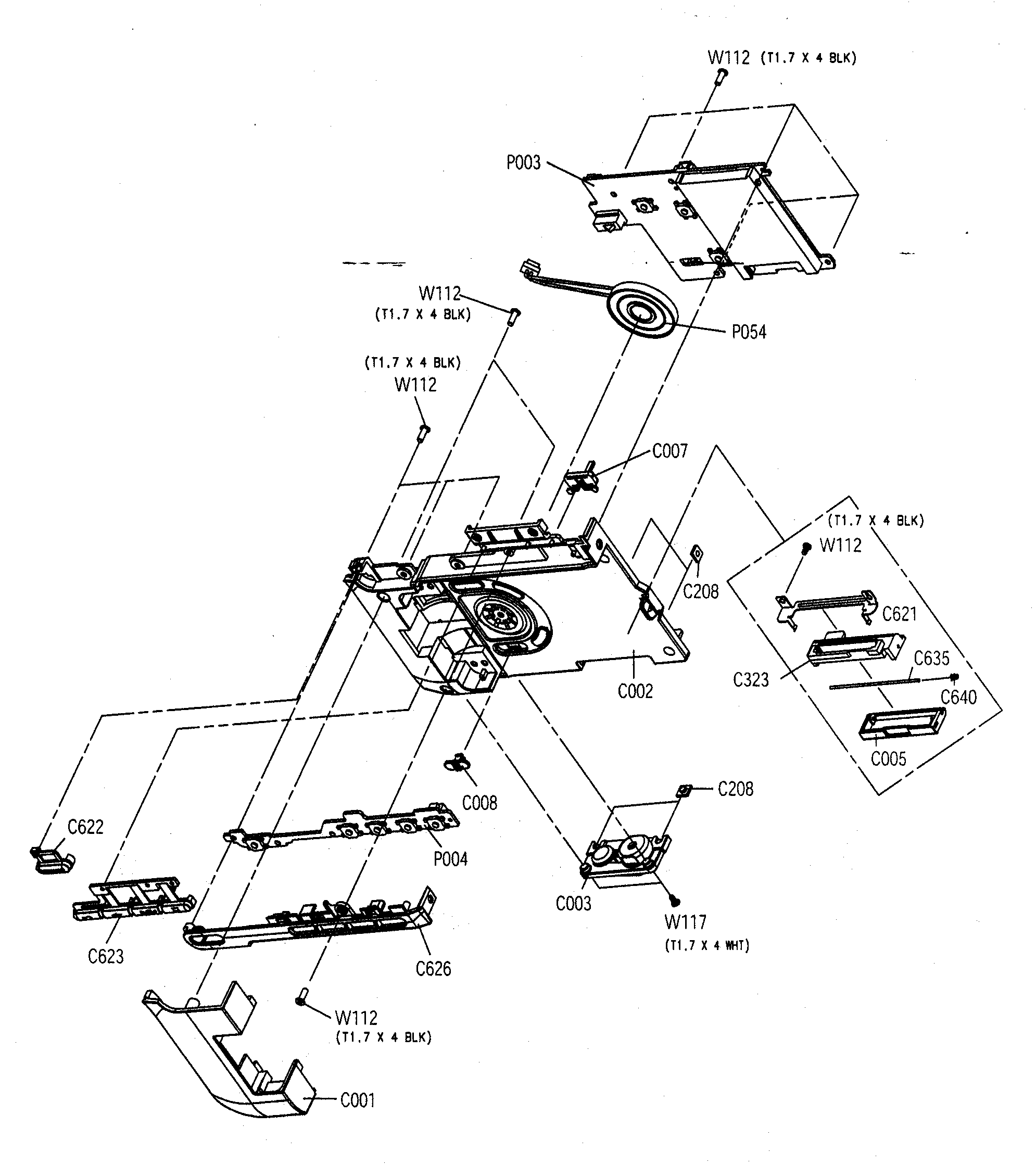

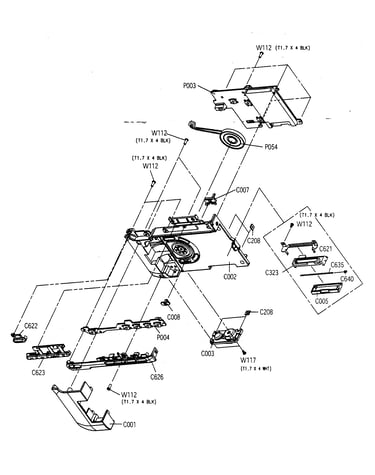

Left assy diagram

Function button

Part #AD64-01315A

The manufacturer no longer makes this part, and there's no substitute part

Function Button AD64-01314A
#C622

Left assy diagram

Function button

Part #AD64-01314A

The manufacturer no longer makes this part, and there's no substitute part

Case Lcd AD61-01975A
#L013

Lcd assy diagram

Case lcd

Part #AD61-01975A

The manufacturer no longer makes this part, and there's no substitute part
