Model # HR652DJRT Official Maytag electric water heater

Here are the diagrams and repair parts for Official Maytag HR652DJRT electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Thermostat 66001254
#16

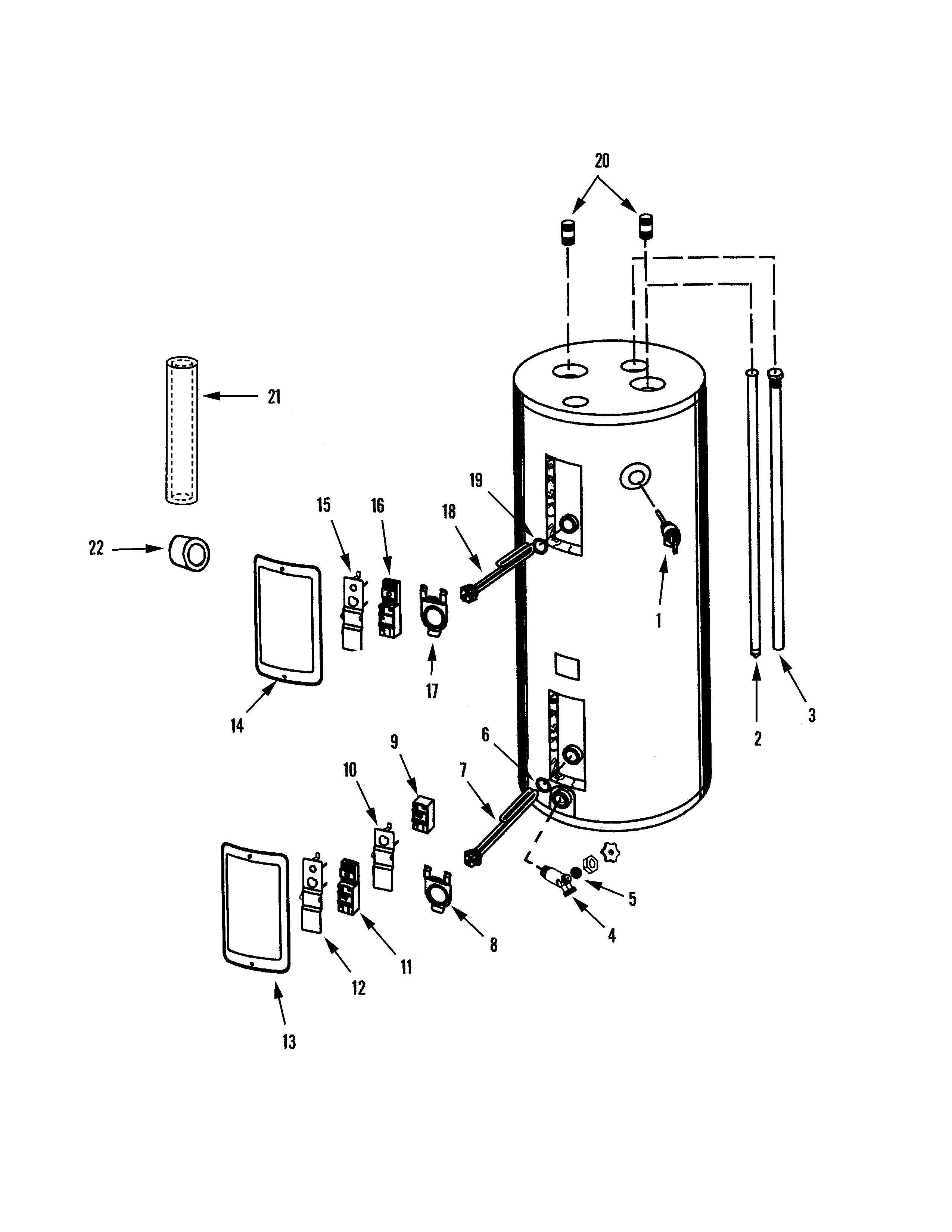

Body diagram

Thermostat

Part #66001254

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 66001254. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Dip Tube 66001303
#2

Body diagram

Dip tube

Part #66001303

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 66001703
Access panel

Part #66001703

The manufacturer no longer makes this part, and there's no substitute part

Nipple (w/o Heat Trap) 66001734
#20B

Body diagram

Nipple (w/o heat trap)

Part #66001734

The manufacturer no longer makes this part, and there's no substitute part

Element Gasket 66001053
Element gasket

Part #66001053

The manufacturer no longer makes this part, and there's no substitute part

Insulation, T & P 66001709
#22

Body diagram

Insulation, t & p

Part #66001709

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 66001268
#10

Body diagram

Terminal cover

Part #66001268

The manufacturer no longer makes this part, and there's no substitute part

Nipple (w/heat Traps) 66001704
#20

Body diagram

Nipple (w/heat traps)

Part #66001704

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 66001064
Terminal cover

Part #66001064

The manufacturer no longer makes this part, and there's no substitute part

Valve, T & P Relief 66001682
#1

Body diagram

Valve, t & p relief

Part #66001682

The manufacturer no longer makes this part, and there's no substitute part
