Model # AGN12ACG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGN12ACG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

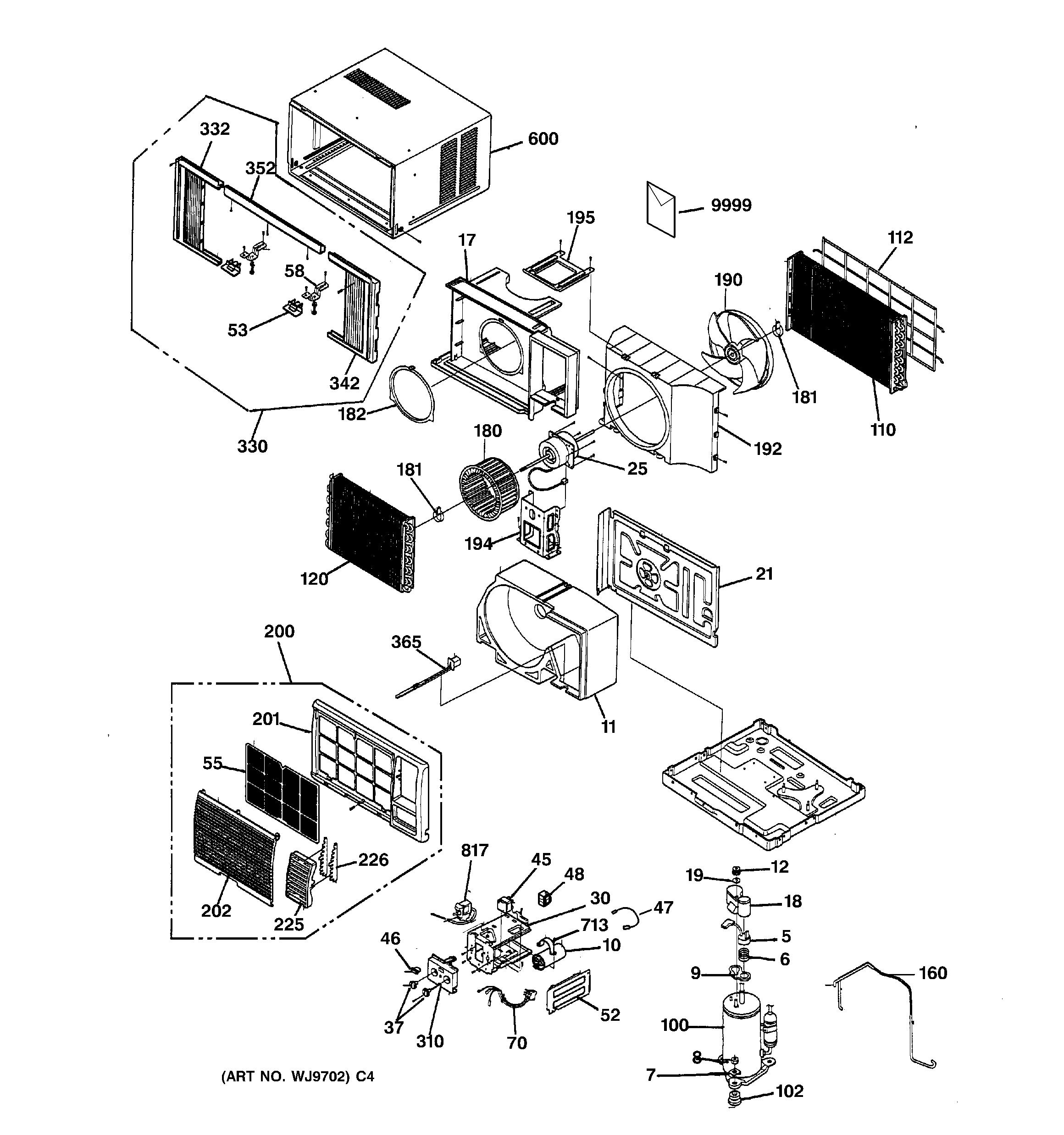

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Ag_ 07 08 10 49-7390
#9999

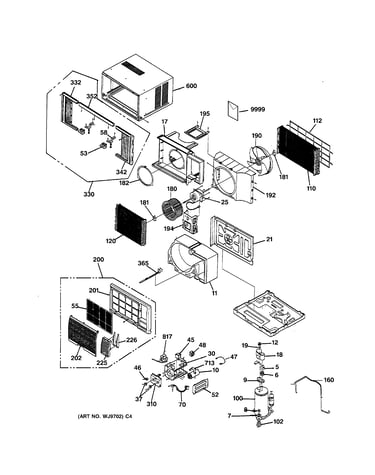

Room air conditioner diagram

Ag_ 07 08 10

Part #49-7390

$8.49
In Stock
Barrier WJ76X10027
#21

Room air conditioner diagram

Barrier

Part #WJ76X10027

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WJ35X10021
#70

Room air conditioner diagram

Power cord

Part #WJ35X10021

The manufacturer no longer makes this part, and there's no substitute part

Grille WJ71X10192
#200

Room air conditioner diagram

Grille

Part #WJ71X10192

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Grille Front WJ71X10076
#7

Room air conditioner diagram

Air conditioner grille front

Part #WJ71X10076

The manufacturer no longer makes this part, and there's no substitute part

Ventilation WJ14X10010
#365

Room air conditioner diagram

Ventilation

Part #WJ14X10010

The manufacturer no longer makes this part, and there's no substitute part

Evaporator WJ87X10053
#120

Room air conditioner diagram

Evaporator

Part #WJ87X10053

The manufacturer no longer makes this part, and there's no substitute part

Sill Bracket WJ01X10074
#58

Room air conditioner diagram

Sill bracket

Part #WJ01X10074

The manufacturer no longer makes this part, and there's no substitute part

Thermostat WJ28X10013
#817

Room air conditioner diagram

Thermostat

Part #WJ28X10013

The manufacturer no longer makes this part, and there's no substitute part

Guide WJ66X10018
#352

Room air conditioner diagram

Guide

Part #WJ66X10018

The manufacturer no longer makes this part, and there's no substitute part
