Model # BDL400S Official Black & Decker self-leveling laser

Here are the diagrams and repair parts for Official Black & Decker BDL400S self-leveling laser, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 4 of 4 parts |

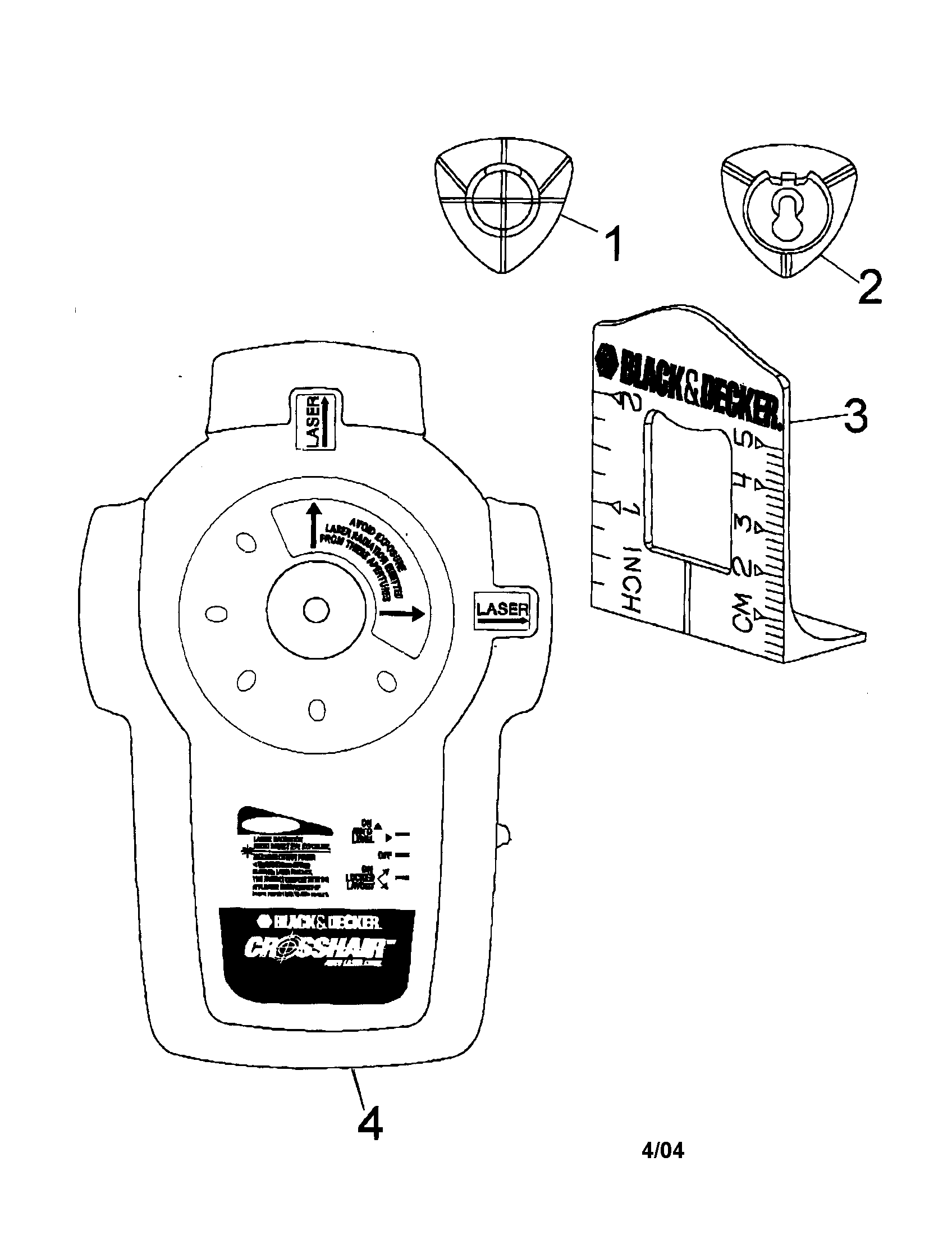

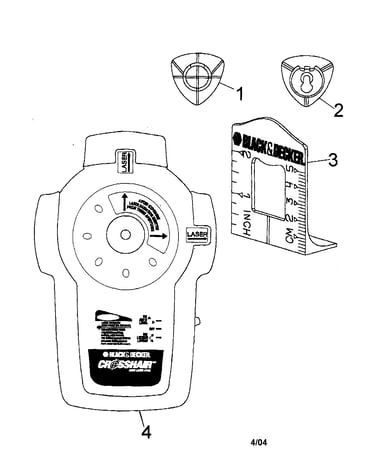

Self level laser diagram

Black & decker laser level drywall pin

Part #585155-00

The manufacturer no longer makes this part, and there's no substitute part

Self level laser diagram

Black & decker kh insert

Part #585156-00

The manufacturer no longer makes this part, and there's no substitute part

Self level laser diagram

Battery door

Part #585152-00

The manufacturer no longer makes this part, and there's no substitute part

Self level laser diagram

Marking target

Part #587194-00

The manufacturer no longer makes this part, and there's no substitute part
