Model # 17560517 Official Kenmore in-sink-erator garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17560517 in-sink-erator garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

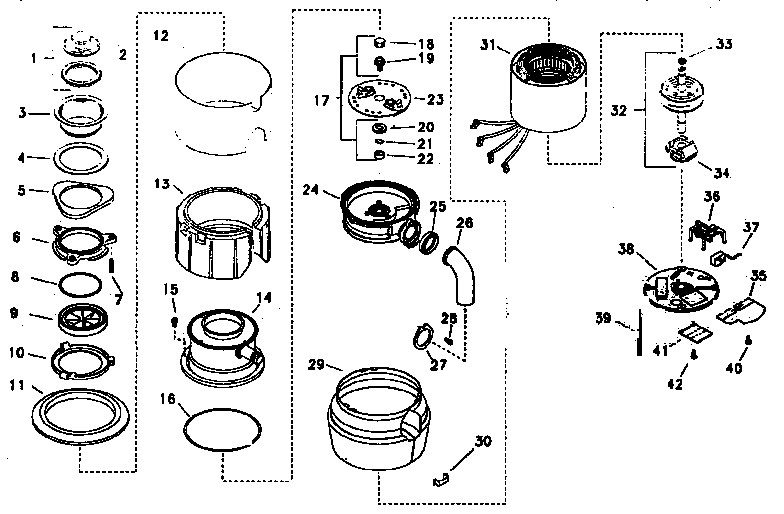

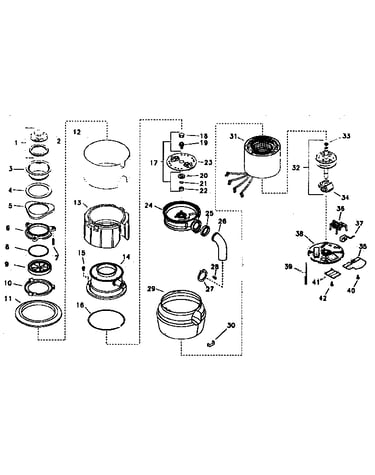

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Insinkerator Garbage Disposal Shredder Blade 71022
#23

Replacement parts diagram

Insinkerator garbage disposal shredder blade

Part #71022

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Screw 1491
#28

Replacement parts diagram

Insinkerator garbage disposal screw

Part #1491

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Shredder Blade Seal Kit 70647
#17

Replacement parts diagram

Insinkerator garbage disposal shredder blade seal kit

Part #70647

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Tailpipe Gasket 1470
#25

Replacement parts diagram

Insinkerator garbage disposal tailpipe gasket

Part #1470

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Drain Tube 2891
#26

Replacement parts diagram

Insinkerator garbage disposal drain tube

Part #2891

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Mounting Ring 5298
#10

Replacement parts diagram

Insinkerator garbage disposal mounting ring

Part #5298

The manufacturer no longer makes this part, and there's no substitute part

Clip, Trim Shell 2037
#30

Replacement parts diagram

Clip, trim shell

Part #2037

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Container O-ring 2539
#16

Replacement parts diagram

Garbage disposal container o-ring

Part #2539

The manufacturer no longer makes this part, and there's no substitute part

Screw 70734
#42

Replacement parts diagram

Screw

Part #70734

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Support Ring 5166
#8

Replacement parts diagram

Insinkerator garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part
