Model # 56492911450 Official LXI am/fm stereo tuner

Here are the diagrams and repair parts for Official LXI 56492911450 am/fm stereo tuner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

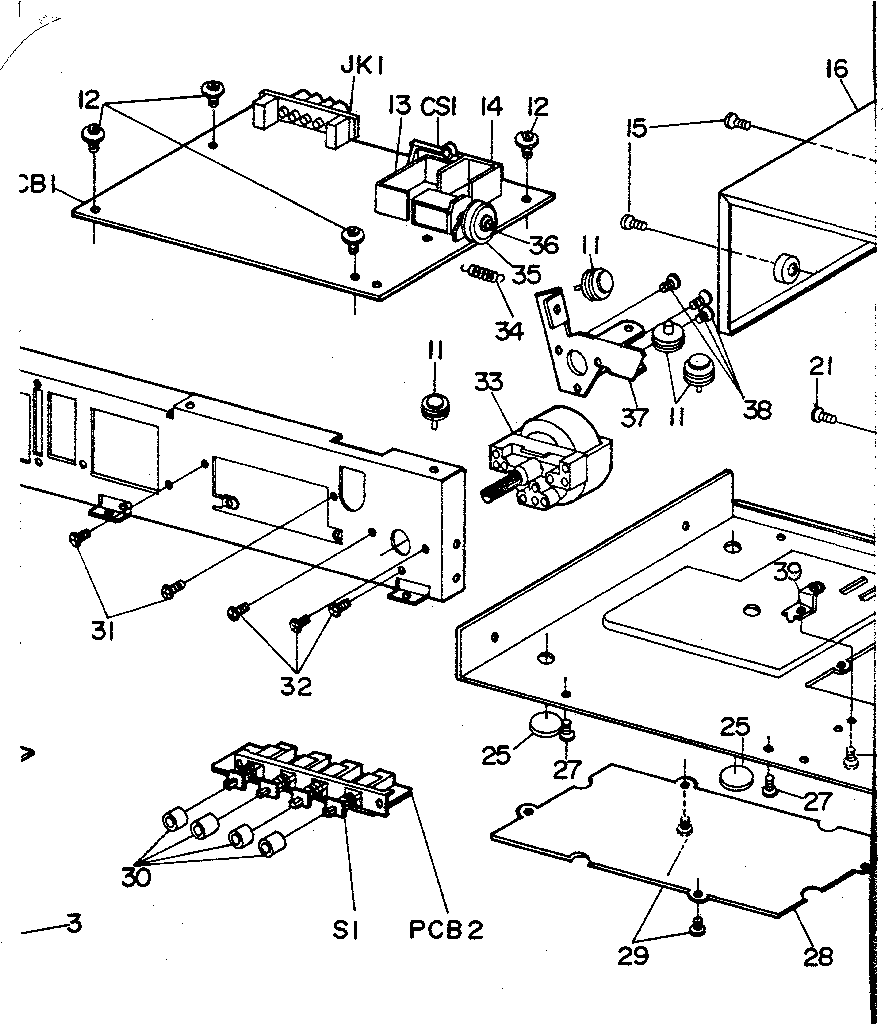

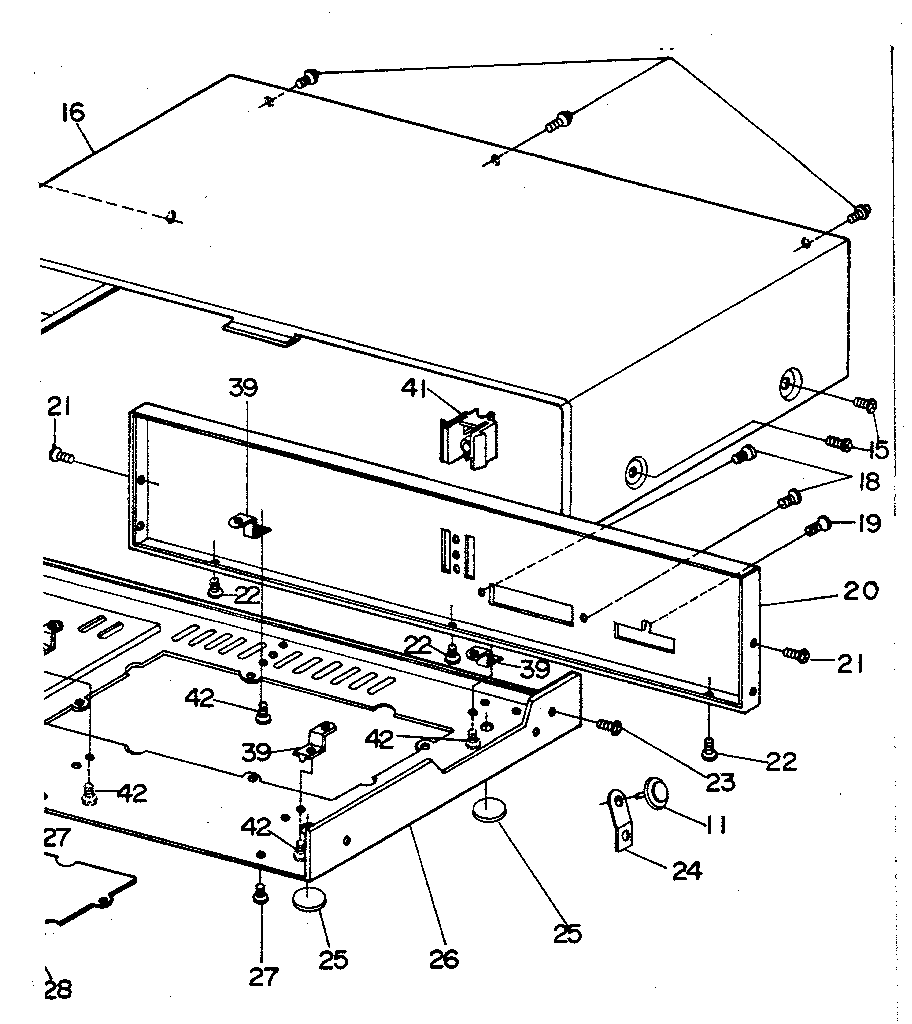

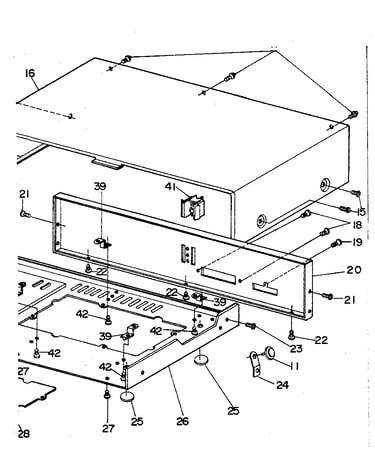

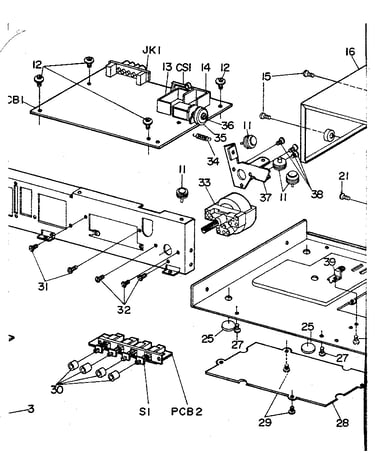

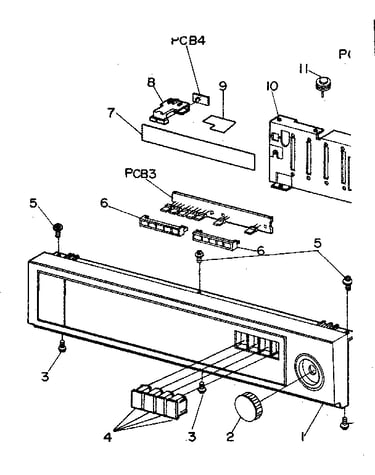

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Screw 46-57656-3
Screw

Part #46-57656-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 46-57449-3

#38

All parts diagram

Screw

Part #46-57449-3

The manufacturer no longer makes this part, and there's no substitute part

Tuning Knob 46-522005-3

#2

All parts diagram

Tuning knob

Part #46-522005-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 46-57422-3

#31

All parts diagram

Screw

Part #46-57422-3

The manufacturer no longer makes this part, and there's no substitute part

Holder 46-112014-3

#41

All parts diagram

Holder

Part #46-112014-3

The manufacturer no longer makes this part, and there's no substitute part

Flywheel 46-392073-3

#33

All parts diagram

Flywheel

Part #46-392073-3

The manufacturer no longer makes this part, and there's no substitute part

Screw, Pan Hd. With Flat Washer, 2.6x6mm 46-57457-3

#36

All parts diagram

Screw, pan hd. with flat washer, 2.6x6mm

Part #46-57457-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 46-57538-3

#42

All parts diagram

Screw

Part #46-57538-3

The manufacturer no longer makes this part, and there's no substitute part

Chassis Bottom (not A Service Part) 3x8mm. Main P. C. Board Mtg. 46-57512-3
Chassis bottom (not a service part) 3x8mm. main p. c. board mtg.

Part #46-57512-3

The manufacturer no longer makes this part, and there's no substitute part

Holder, Led 46-112013-3

#6

All parts diagram

Holder, led

Part #46-112013-3

The manufacturer no longer makes this part, and there's no substitute part
