GE
Room Air Conditioner

Model # AEL12ASL1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEL12ASL1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Room Air Conditioner Air Filter WJ71X10671
#53

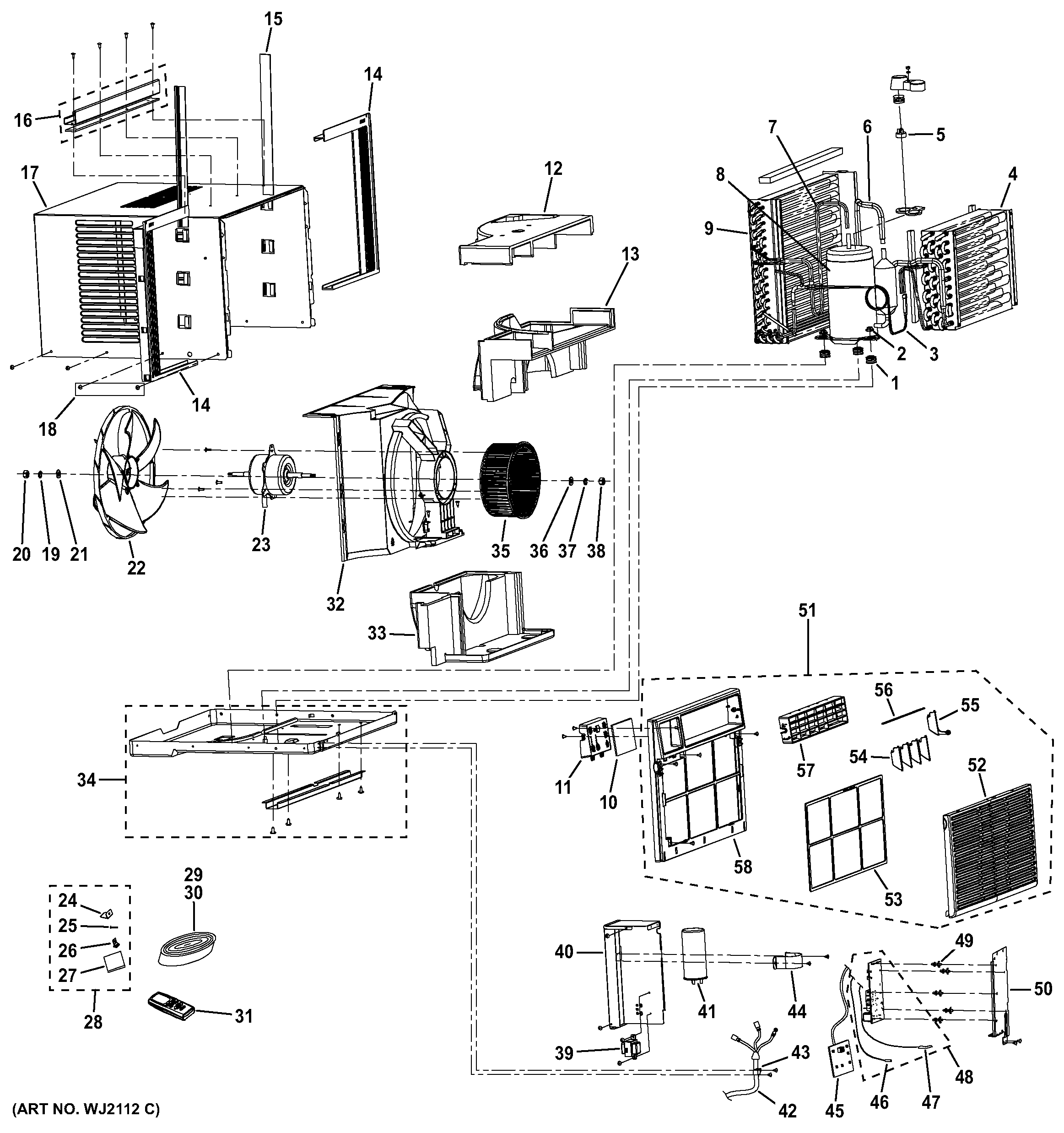

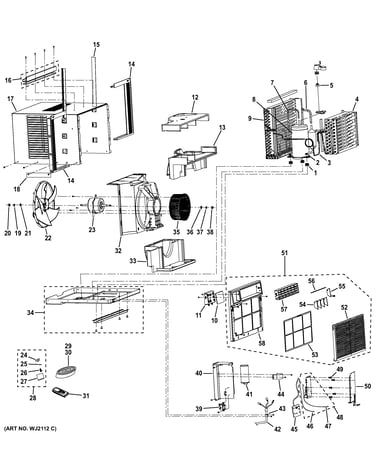

Room air conditioner diagram

Room air conditioner air filter

Part #WJ71X10671

This item is not returnable
$11.06 |
15% OFF Phone Price : $13.06
In Stock
Room Air Conditioner Condenser Fan WJ73X10220
#22

Room air conditioner diagram

Room air conditioner condenser fan

Part #WJ73X10220

$20.42 |
44% OFF Was : $36.33
In Stock
Room Air Conditioner Display Board WJ26X20184
#45

Room air conditioner diagram

Room air conditioner display board

Part #WJ26X20184

$65.75 |
8% OFF Phone Price : $71.75
In Stock
Remote WJ26X10354
#31

Room air conditioner diagram

Remote

Part #WJ26X10354

Replaced by #WJ26X20522

?
Manufacturer substitution
This part replaces WJ26X10354. Substitute parts can look different from the original.
$53.70 |
10% OFF Phone Price : $59.70
In Stock
Room Sensor WJ27X10103
#47

Room air conditioner diagram

Room sensor

Part #WJ27X10103

Replaced by #WJ27X10122

?
Manufacturer substitution
This part replaces WJ27X10103. Substitute parts can look different from the original.
This item is not returnable
$10.98 |
34% OFF Was : $16.70
In Stock
Screw St4.2x WJ01X20240
#18

Room air conditioner diagram

Screw st4.2x

Part #WJ01X20240

This item is not returnable
$5.00
In Stock
Electric Box WJ05X20228
#40

Room air conditioner diagram

Electric box

Part #WJ05X20228

$21.00
In Stock
Transformer WJ27X20238
#39

Room air conditioner diagram

Transformer

Part #WJ27X20238

$22.47
In Stock
Capacitor WJ20X10201
#41

Room air conditioner diagram

Capacitor

Part #WJ20X10201

$38.73
In Stock
Lcd Cover WJ05X20235
#11

Room air conditioner diagram

Lcd cover

Part #WJ05X20235

This item is not returnable
$7.25
In Stock
