Sharp
Countertop Microwave

Model # R-402JKF Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-402JKF microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Switch FFS-BA016/KIT
#1-5

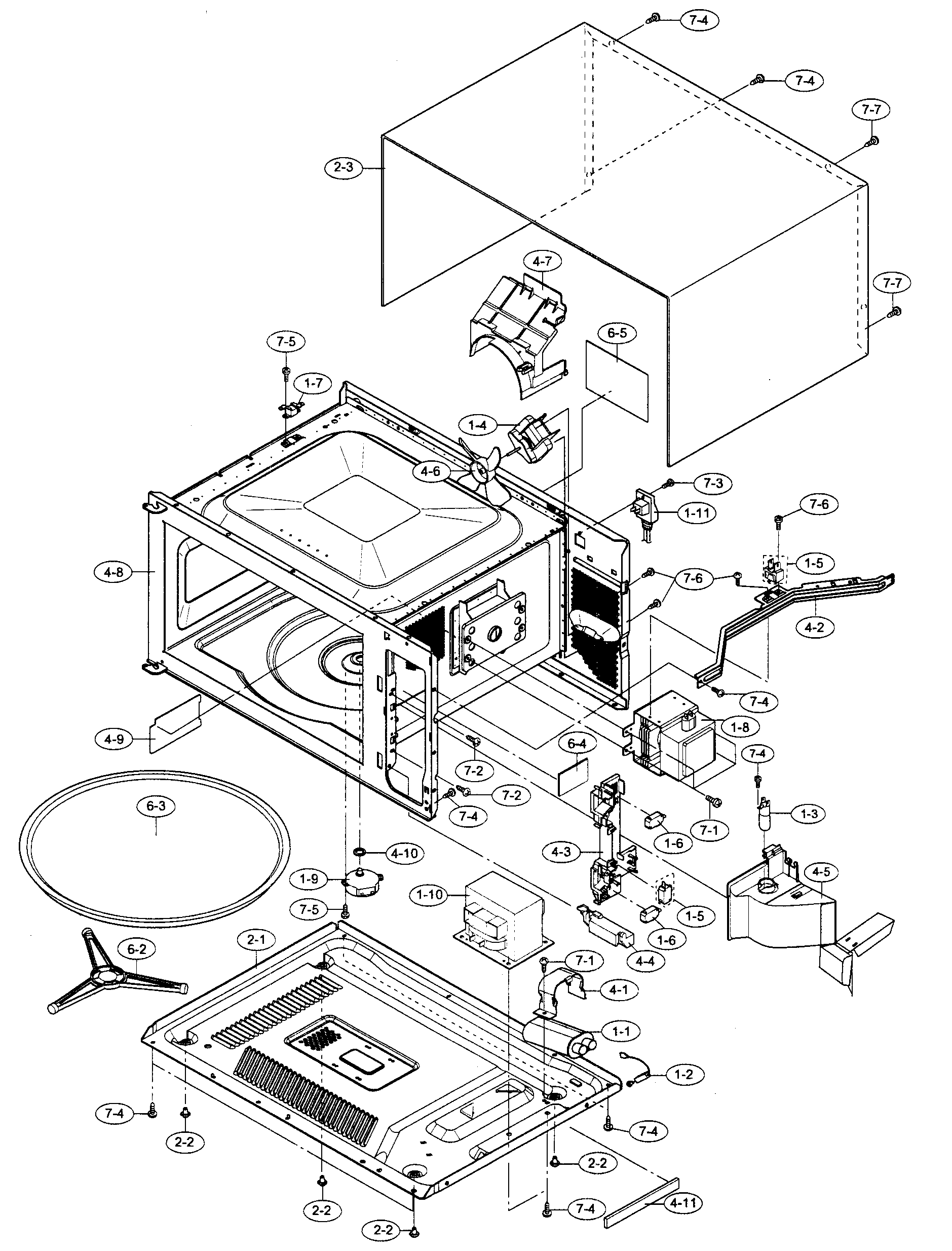

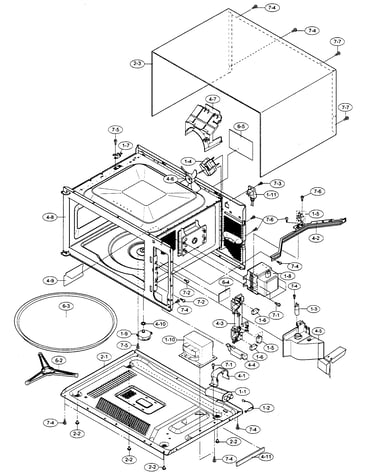

Cabinet parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Microwave Noise Filter FPWBFA380WRKZ
#NI

Cabinet parts diagram

Microwave noise filter

Part #FPWBFA380WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Light Cover PCOVPB113MRF0
#3-7

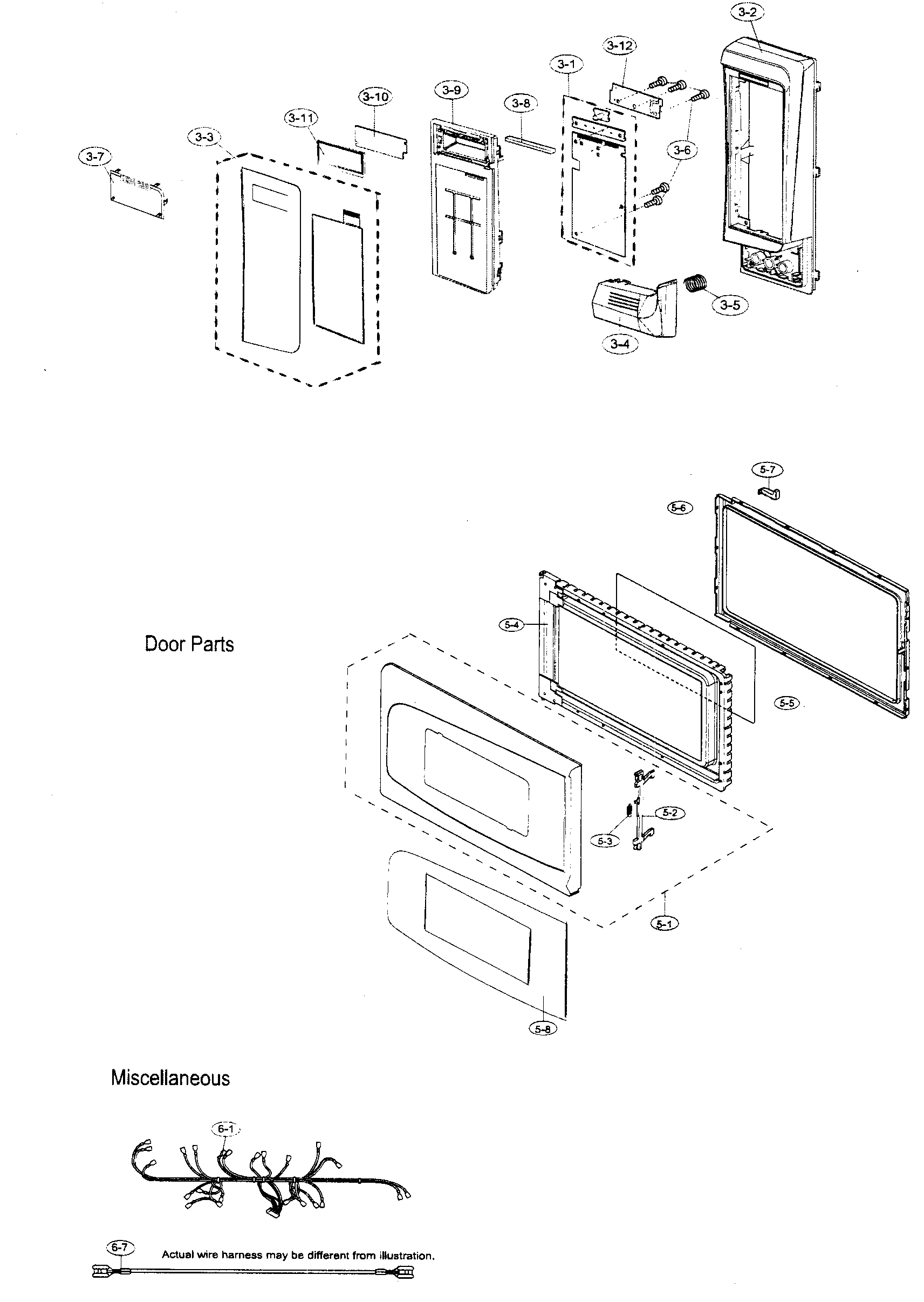

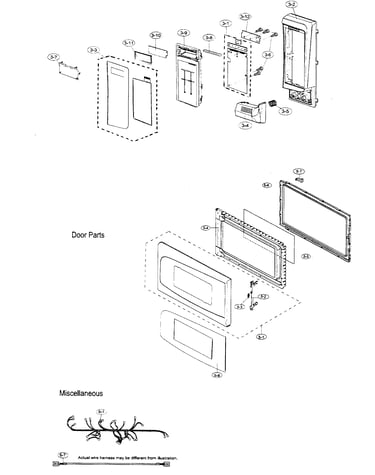

Door/controls diagram

Light cover

Part #PCOVPB113MRF0

The manufacturer no longer makes this part, and there's no substitute part

Lcd RLCDSA107DRZZ
#3-11

Door/controls diagram

Lcd

Part #RLCDSA107DRZZ

The manufacturer no longer makes this part, and there's no substitute part

Control Panel FUNTKB400MRE0
#3-3

Door/controls diagram

Control panel

Part #FUNTKB400MRE0

The manufacturer no longer makes this part, and there's no substitute part

Door Frame FCOV-B262MRK0
#5-1

Door/controls diagram

Door frame

Part #FCOV-B262MRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Glass Turntable Tray NTNT-A108WREZ
#6-3

Cabinet parts diagram

Microwave glass turntable tray

Part #NTNT-A108WREZ

The manufacturer no longer makes this part, and there's no substitute part

Key Mold HPNLCB179MRF0
#3-9

Door/controls diagram

Key mold

Part #HPNLCB179MRF0

The manufacturer no longer makes this part, and there's no substitute part

Label TCAUAB050MRR0
#6-4

Cabinet parts diagram

Label

Part #TCAUAB050MRR0

The manufacturer no longer makes this part, and there's no substitute part

Control Unit CPWBFB092MRU0
#3-1

Door/controls diagram

Control unit

Part #CPWBFB092MRU0

The manufacturer no longer makes this part, and there's no substitute part
