Kenmore
Upright Vacuum

Model # 1163937280 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1163937280 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Screw 681149
#42

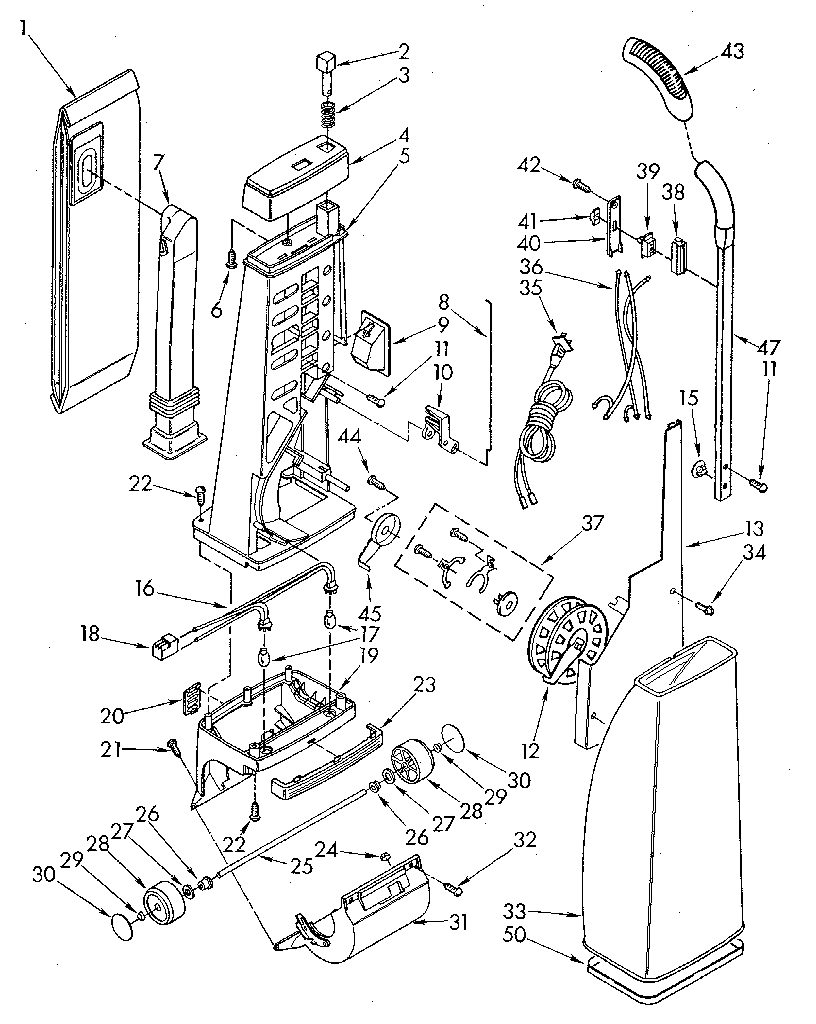

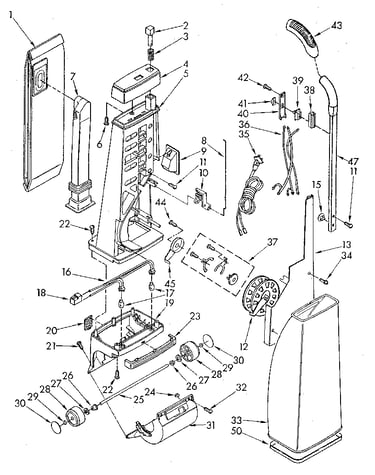

Handle and bag housing diagram

Screw

Part #681149

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 681149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Gasket 4152184
#2

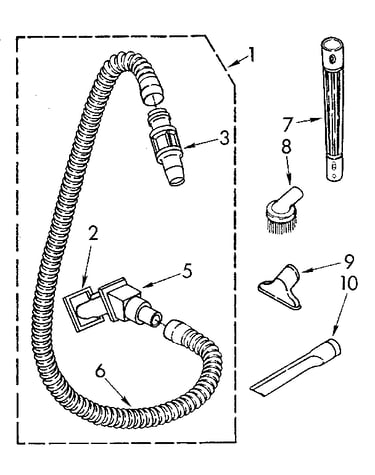

Hose and attachment diagram

Gasket

Part #4152184

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 745362
#17

Handle and bag housing diagram

Light bulb

Part #745362

Replaced by #5248

?
Manufacturer substitution
This part replaces 745362. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
(not Serviced, Use Old ) Screw, Motor Brush N/P
#1

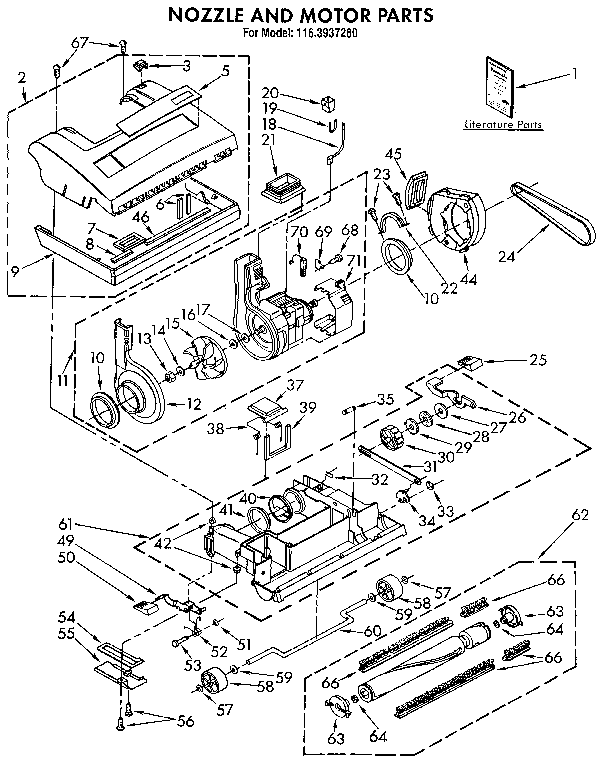

Nozzle and motor diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4152897
#35

Handle and bag housing diagram

Power cord

Part #4152897

The manufacturer no longer makes this part, and there's no substitute part

Washer 725635
#28

Nozzle and motor diagram

Washer

Part #725635

The manufacturer no longer makes this part, and there's no substitute part

Bag Frame 4152860
#5

Handle and bag housing diagram

Bag frame

Part #4152860

The manufacturer no longer makes this part, and there's no substitute part

Bearing 744643
#26

Handle and bag housing diagram

Bearing

Part #744643

The manufacturer no longer makes this part, and there's no substitute part

Bumper 4151006
#9

Nozzle and motor diagram

Bumper

Part #4151006

The manufacturer no longer makes this part, and there's no substitute part

Screw 681653
#68

Nozzle and motor diagram

Screw

Part #681653

The manufacturer no longer makes this part, and there's no substitute part
