Model # H2B518B3S1 Official ICP heat pump indoor blower section

Here are the diagrams and repair parts for Official ICP H2B518B3S1 heat pump indoor blower section, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

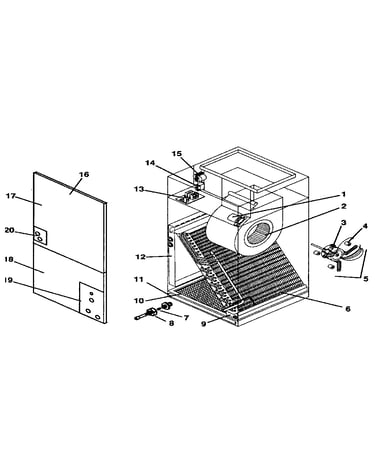

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Capacitor 602974
#1

Replacement diagram

Capacitor

Part #602974

Replaced by #12005

?
Manufacturer substitution
This part replaces 602974. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Serv Valve 1052923
#7A

Replacement diagram

Serv valve

Part #1052923

Replaced by #1080999

?
Manufacturer substitution
This part replaces 1052923. Substitute parts can look different from the original.
$127.30
In Stock
Drain Pan 1055151
#9

Replacement diagram

Drain pan

Part #1055151

$103.50
In Stock
Central Air Conditioner Air Handler Blower Motor 1055139
#3

Replacement diagram

Central air conditioner air handler blower motor

Part #1055139

$468.63
In Stock
Terminal Board 1055193
#13

Replacement diagram

Terminal board

Part #1055193

$29.09
In Stock
Central Air Conditioner Air Handler Air Filter, 13 X 18 X 1-in 1051928
#10

Replacement diagram

Central air conditioner air handler air filter, 13 x 18 x 1-in

Part #1051928

$83.22
In Stock
Mount Kit 1050254
#5

Replacement diagram

Mount kit

Part #1050254

$125.18
In Stock
Relay Spdt 1058148
#14

Replacement diagram

Relay spdt

Part #1058148

Replaced by #WR90-370

?
Manufacturer substitution
This part replaces 1058148. Substitute parts can look different from the original.
$21.63 |
22% OFF Phone Price : $27.63
In Stock
Pan Hrzntl 1059400
#12

Replacement diagram

Pan hrzntl

Part #1059400

Replaced by #1097062

?
Manufacturer substitution
This part replaces 1059400. Substitute parts can look different from the original.
$225.00
In Stock
Grommet 609194
#4

Replacement diagram

Grommet

Part #609194

Replaced by #1149537

?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
