Model # 2537798113 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2537798113 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Clamp 27669
#34

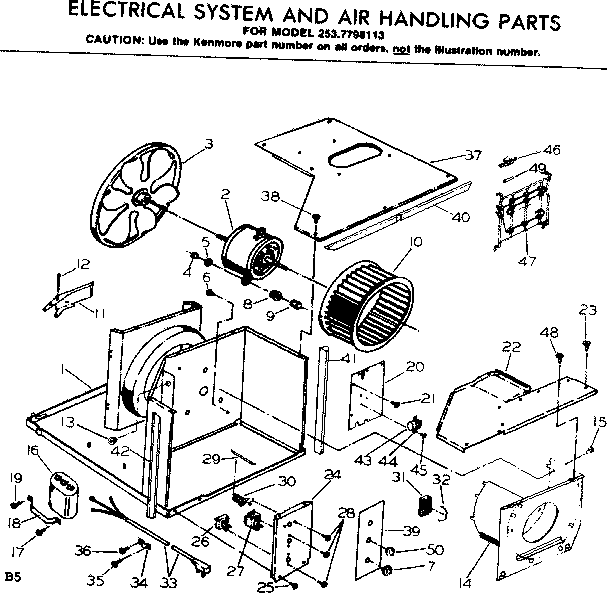

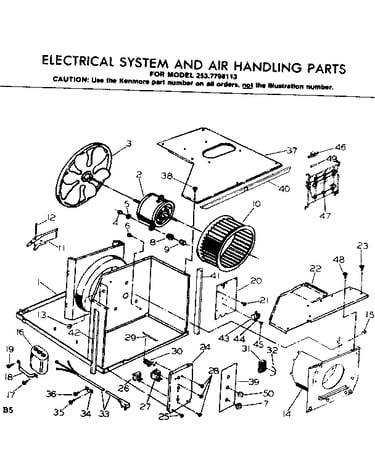

Electrical system and air handling parts diagram

Clamp

Part #27669

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$50.60
In Stock
Grommet 126340
#2

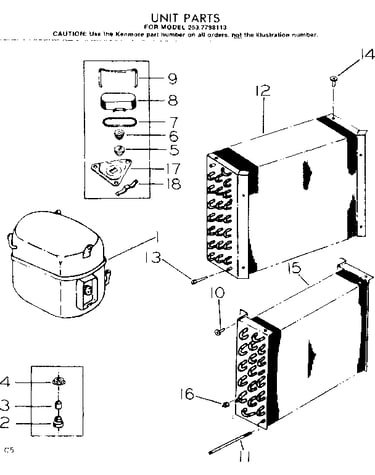

Refrigeration system diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Air Filter 47-9186
#11

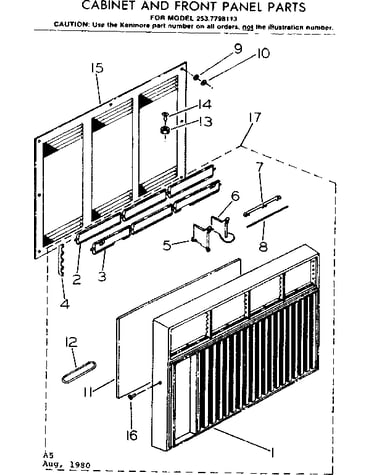

Cabinet and front panel parts diagram

Air filter

Part #47-9186

The manufacturer no longer makes this part, and there's no substitute part

Fuse 505407
#49

Electrical system and air handling parts diagram

Fuse

Part #505407

The manufacturer no longer makes this part, and there's no substitute part

Mechanism 506434
#30

Electrical system and air handling parts diagram

Mechanism

Part #506434

The manufacturer no longer makes this part, and there's no substitute part

Screw 119700
#14

Cabinet and front panel parts diagram

Screw

Part #119700

The manufacturer no longer makes this part, and there's no substitute part

Tube 136533
#31

Electrical system and air handling parts diagram

Tube

Part #136533

The manufacturer no longer makes this part, and there's no substitute part

Corner Pad 501435-06

#NI

All parts diagram

Corner pad

Part #501435-06

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 511898-07
#16

Electrical system and air handling parts diagram

Capacitor

Part #511898-07

The manufacturer no longer makes this part, and there's no substitute part

Nut 500444
#4

Electrical system and air handling parts diagram

Nut

Part #500444

The manufacturer no longer makes this part, and there's no substitute part
