Model # FAK085P7V1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAK085P7V1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

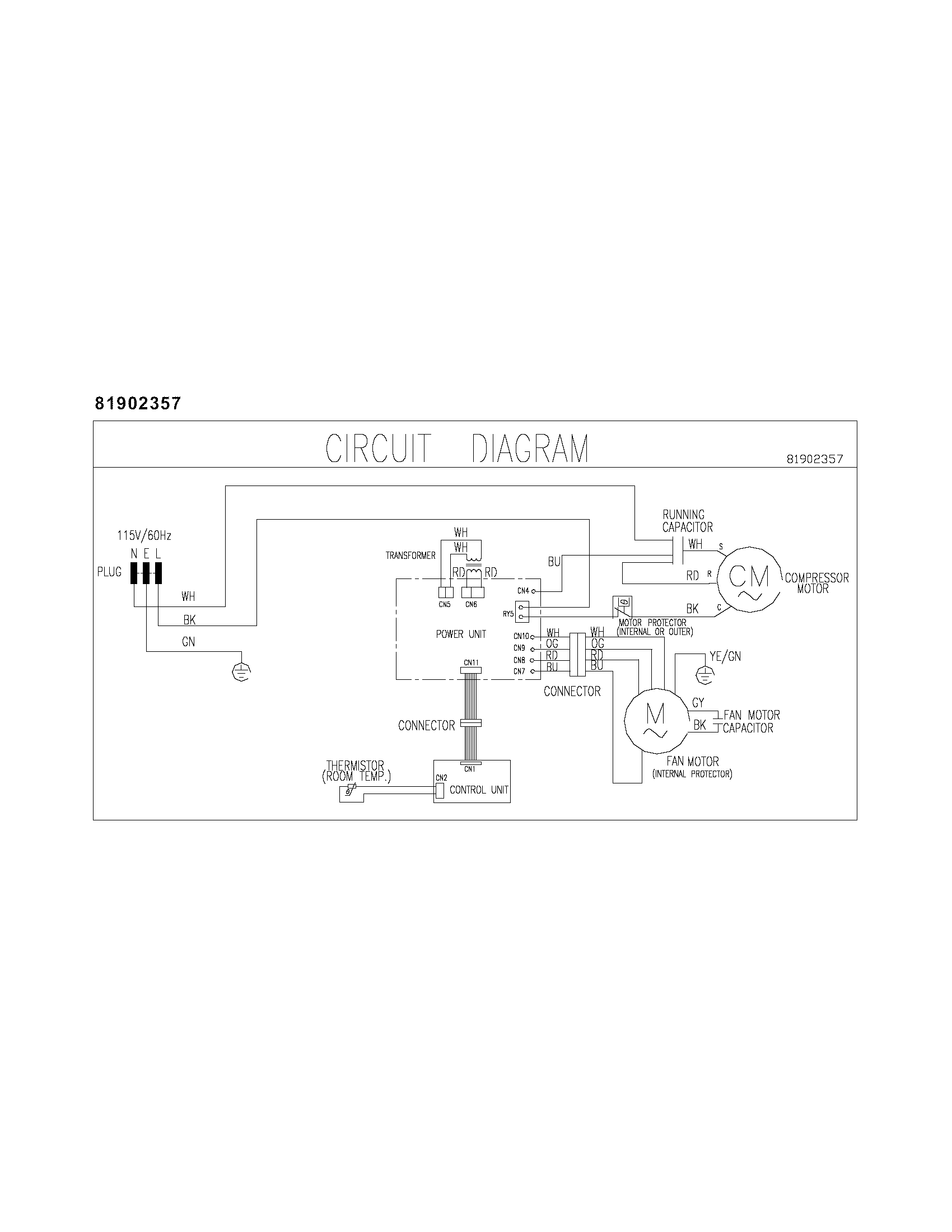

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Power Cord 5304448126
#49

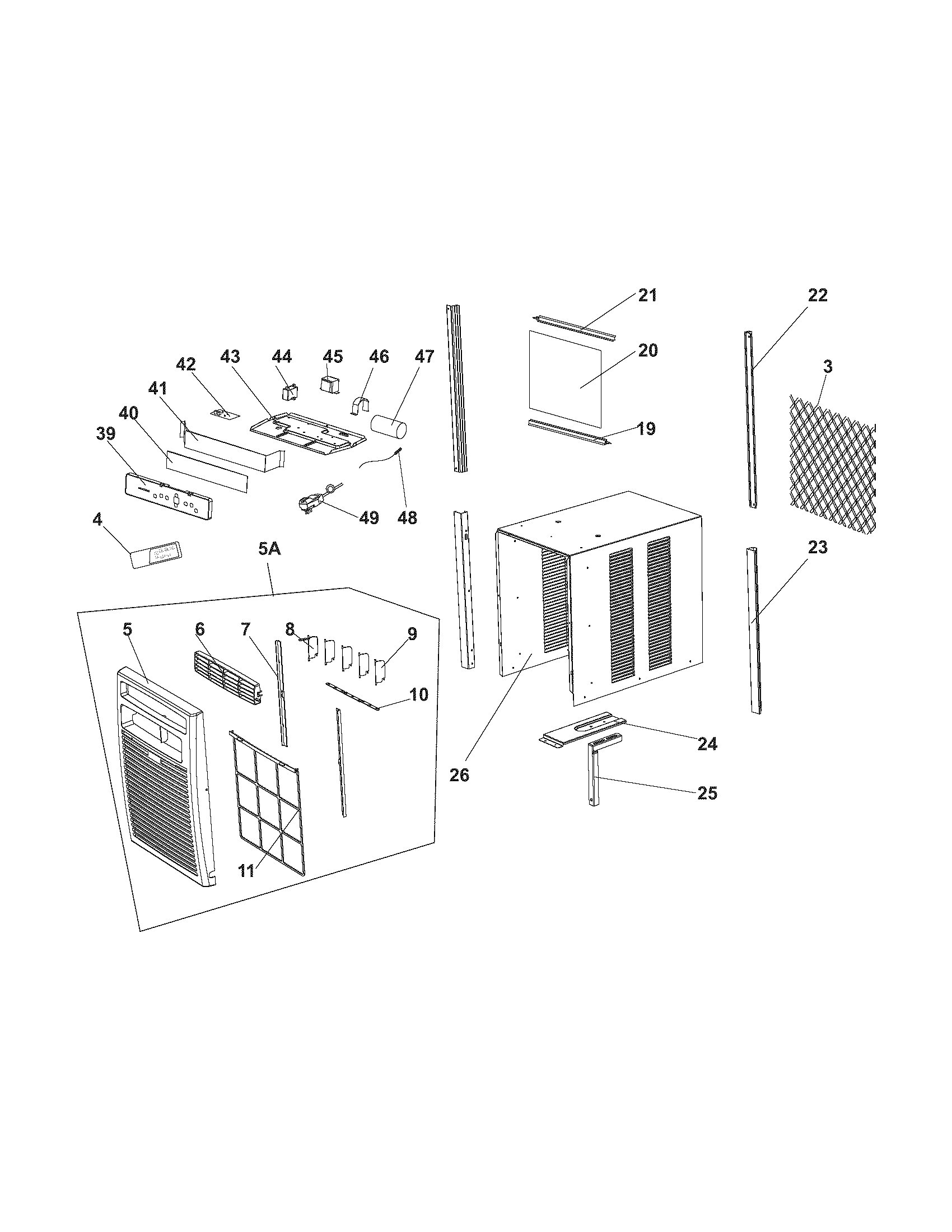

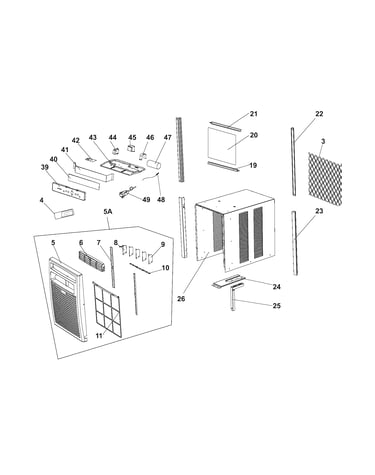

Cabinet/front/controls diagram

Power cord

Part #5304448126

$93.49
In Stock
Capillary Tube 5304448096
#18

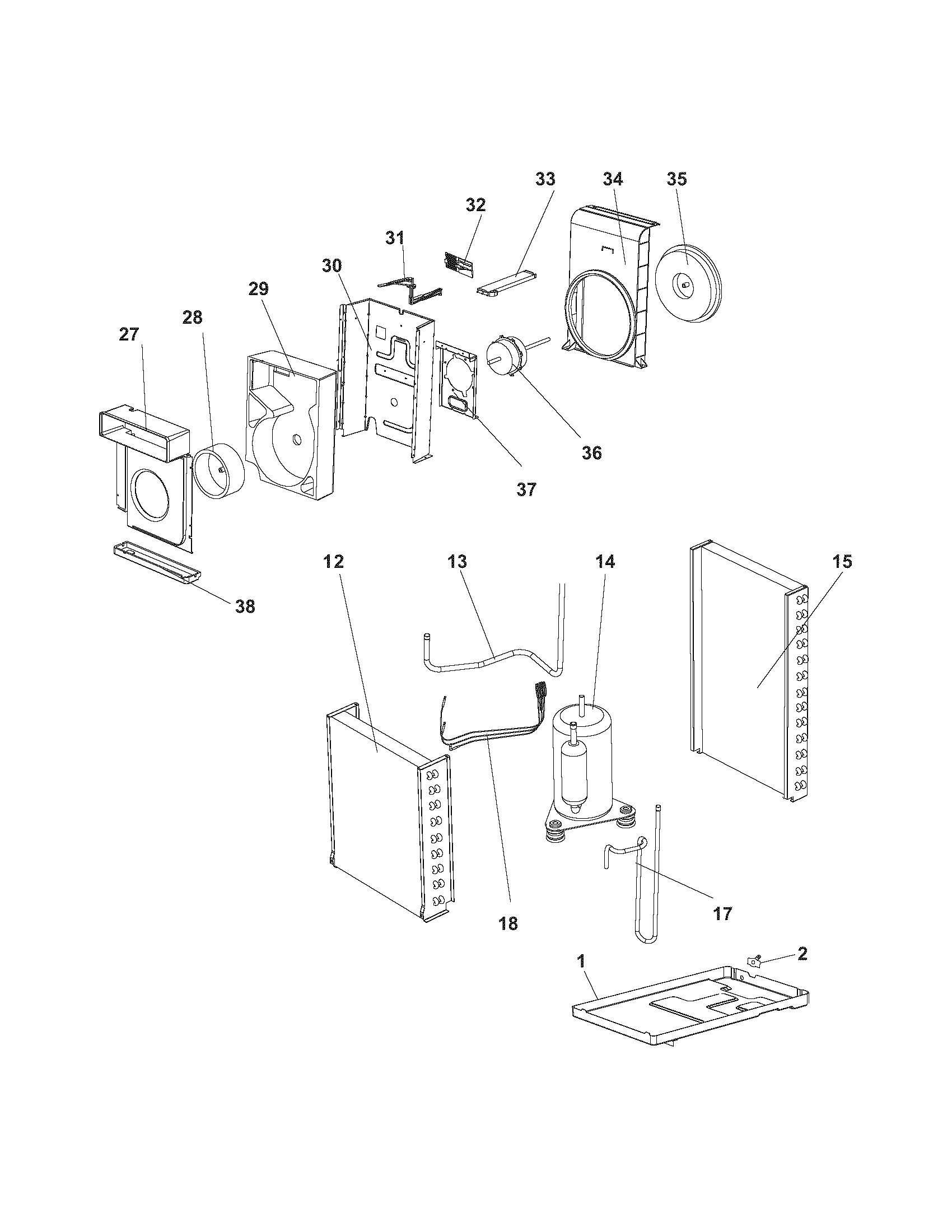

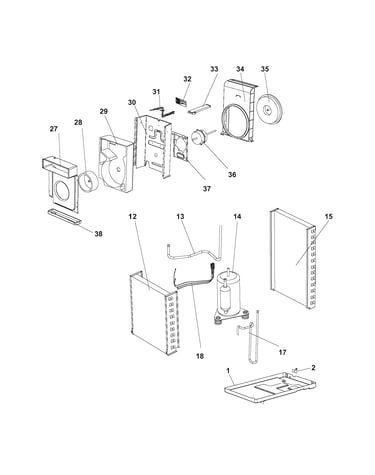

Cooling & air flow systems diagram

Capillary tube

Part #5304448096

The manufacturer no longer makes this part, and there's no substitute part

Suction Tube 5304448092
#13

Cooling & air flow systems diagram

Suction tube

Part #5304448092

The manufacturer no longer makes this part, and there's no substitute part

Discharge Tube 5304448095
#17

Cooling & air flow systems diagram

Discharge tube

Part #5304448095

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5304448093
#14

Cooling & air flow systems diagram

Compressor

Part #5304448093

The manufacturer no longer makes this part, and there's no substitute part

Channel 5304448101
#23

Cabinet/front/controls diagram

Channel

Part #5304448101

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 5304448104
#26

Cabinet/front/controls diagram

Cabinet

Part #5304448104

The manufacturer no longer makes this part, and there's no substitute part

Bracket 5304448103
#25

Cabinet/front/controls diagram

Bracket

Part #5304448103

The manufacturer no longer makes this part, and there's no substitute part

Base 5304448079
#1

Cooling & air flow systems diagram

Base

Part #5304448079

The manufacturer no longer makes this part, and there's no substitute part

Louver 5304448087
#8

Cabinet/front/controls diagram

Louver

Part #5304448087

The manufacturer no longer makes this part, and there's no substitute part
