Model # ASH436NCDDA1 Official GE room air conditioner built in

Here are the diagrams and repair parts for Official GE ASH436NCDDA1 room air conditioner built in, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
High Pressur WJ27X22646
#10

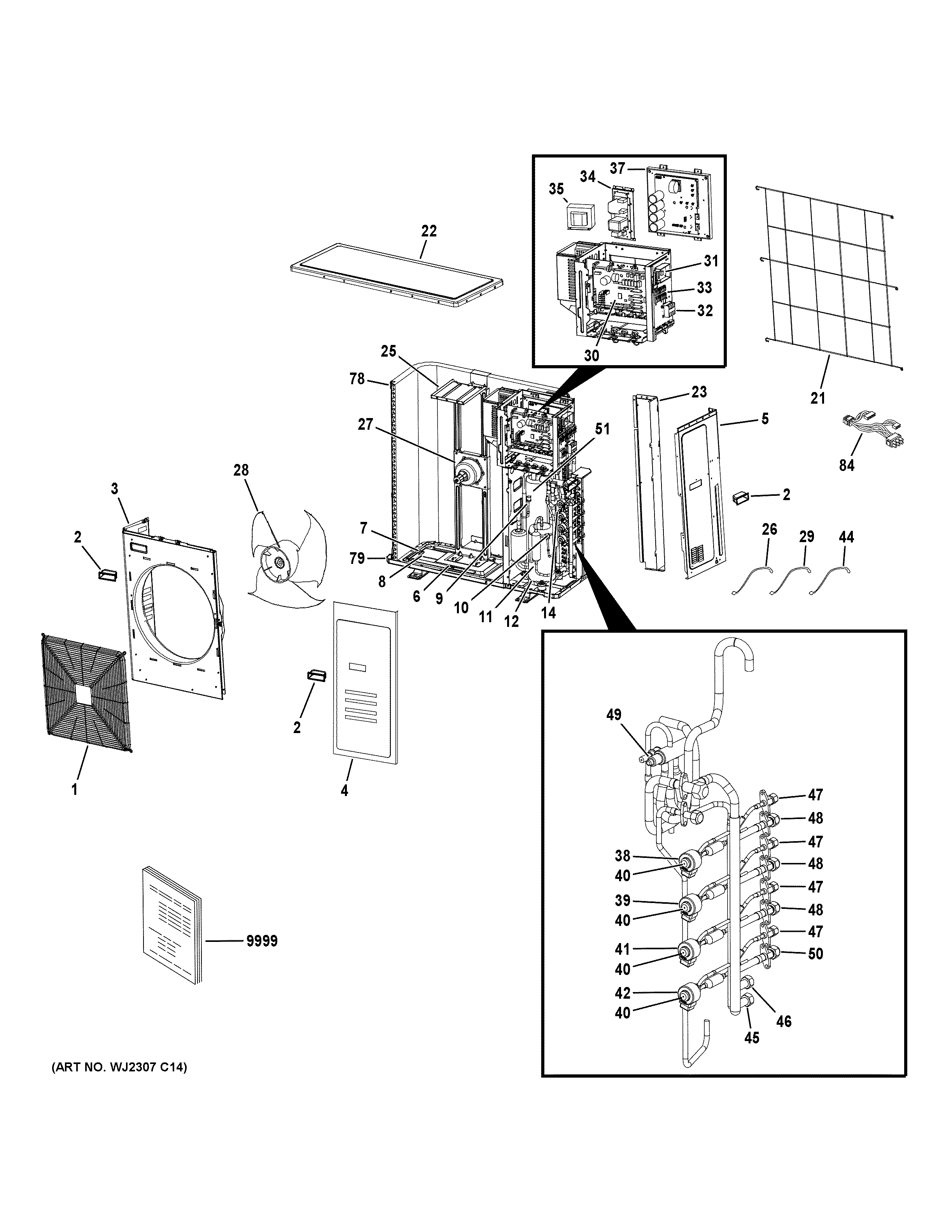

Room air conditioner diagram

High pressur

Part #WJ27X22646

$27.20
In Stock
Ge Back Panel WJ71X32248
#23

Room air conditioner diagram

Ge back panel

Part #WJ71X32248

$47.67
In Stock
Terminal Block (indoor) WJ26X26193
#32

Room air conditioner diagram

Terminal block (indoor)

Part #WJ26X26193

$23.77
In Stock
Adapter 1/2x5/8 WJ01X23932
#9996

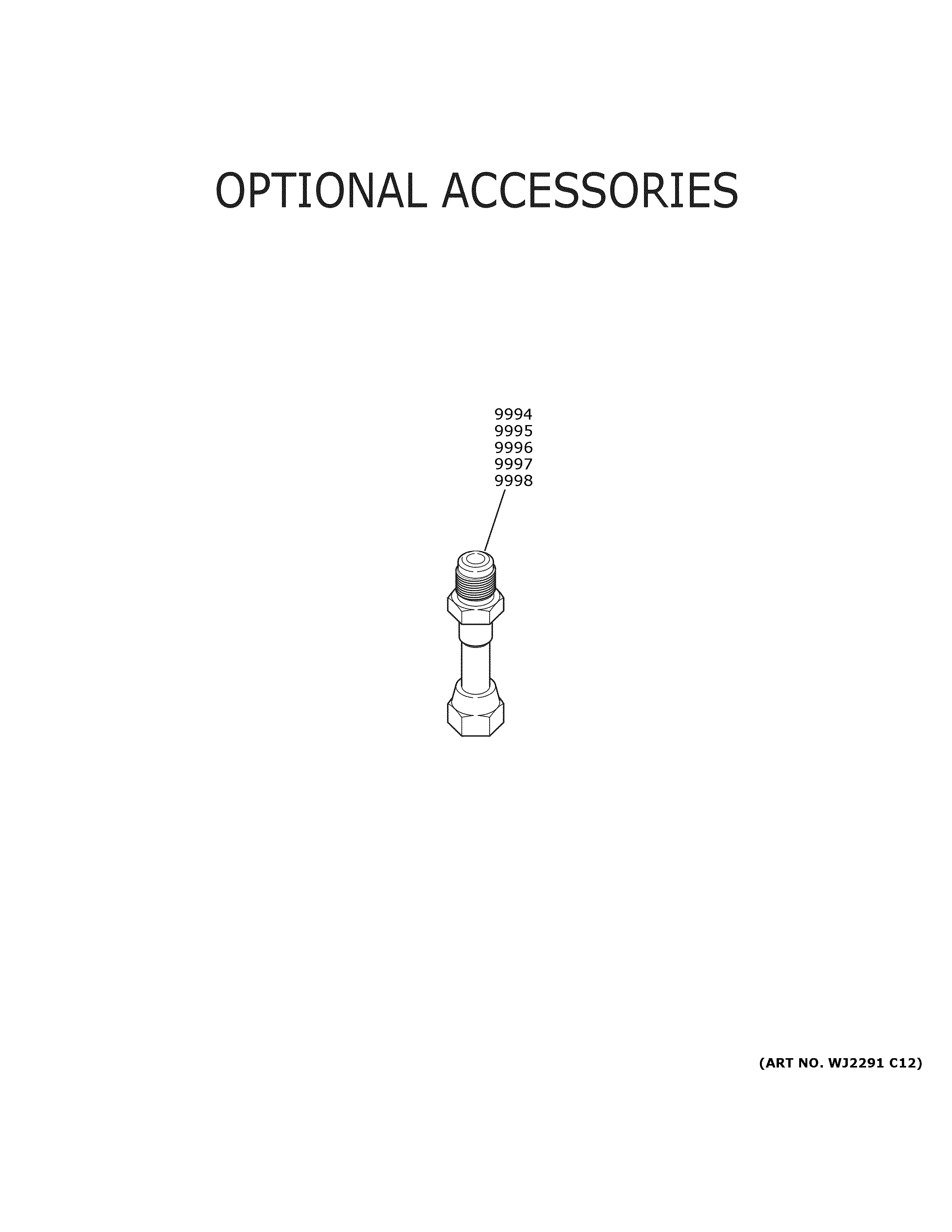

Optional accessories diagram

Adapter 1/2x5/8

Part #WJ01X23932

$56.98
In Stock
Ge Front Grille WJ71X32238
#1

Room air conditioner diagram

Ge front grille

Part #WJ71X32238

$136.18
In Stock
Gas Pipe Sensor WJ26X28814
#29

Room air conditioner diagram

Gas pipe sensor

Part #WJ26X28814

$49.04
In Stock
Levb Electro WJ26X22674
#40

Room air conditioner diagram

Levb electro

Part #WJ26X22674

$92.91
In Stock
Condensor Asm. WJ88X31176
#78

Room air conditioner diagram

Condensor asm.

Part #WJ88X31176

$674.52
In Stock
Ge Front Service Panel WJ71X32245
#4

Room air conditioner diagram

Ge front service panel

Part #WJ71X32245

$58.18
In Stock
Ge Motor Bracket WJ65X31170
#25

Room air conditioner diagram

Ge motor bracket

Part #WJ65X31170

$83.42
In Stock
