KitchenAid
Gas Grill

Model # 730-0732 Official KitchenAid outdoor grill

Here are the diagrams and repair parts for Official KitchenAid 730-0732 outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Lp Regulator 0732-019
#19

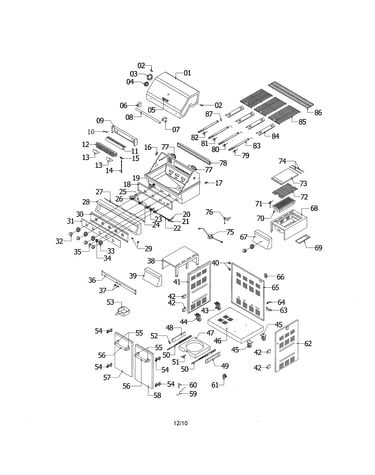

Lp and ng grill diagram

Lp regulator

Part #0732-019

The manufacturer no longer makes this part, and there's no substitute part

Door 20001996A0
#58

Lp and ng grill diagram

Door

Part #20001996A0

The manufacturer no longer makes this part, and there's no substitute part

Door 20001995A0
#57

Lp and ng grill diagram

Door

Part #20001995A0

The manufacturer no longer makes this part, and there's no substitute part

Gas Tank Tra 0732-048
#48

Lp and ng grill diagram

Gas tank tra

Part #0732-048

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie Heat Shield 0732-011
#11

Lp and ng grill diagram

Rotisserie heat shield

Part #0732-011

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie Gas Valve 0732-023
#23

Lp and ng grill diagram

Rotisserie gas valve

Part #0732-023

The manufacturer no longer makes this part, and there's no substitute part

Strain Cable 0732-063
#63

Lp and ng grill diagram

Strain cable

Part #0732-063

The manufacturer no longer makes this part, and there's no substitute part

Grease Box 0732-053
#53

Lp and ng grill diagram

Grease box

Part #0732-053

The manufacturer no longer makes this part, and there's no substitute part

Panel 0732-065
#65

Lp and ng grill diagram

Panel

Part #0732-065

The manufacturer no longer makes this part, and there's no substitute part

Sear Gas Valve 0732-020
#20

Lp and ng grill diagram

Sear gas valve

Part #0732-020

The manufacturer no longer makes this part, and there's no substitute part
