Model # 72165229401 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72165229401 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

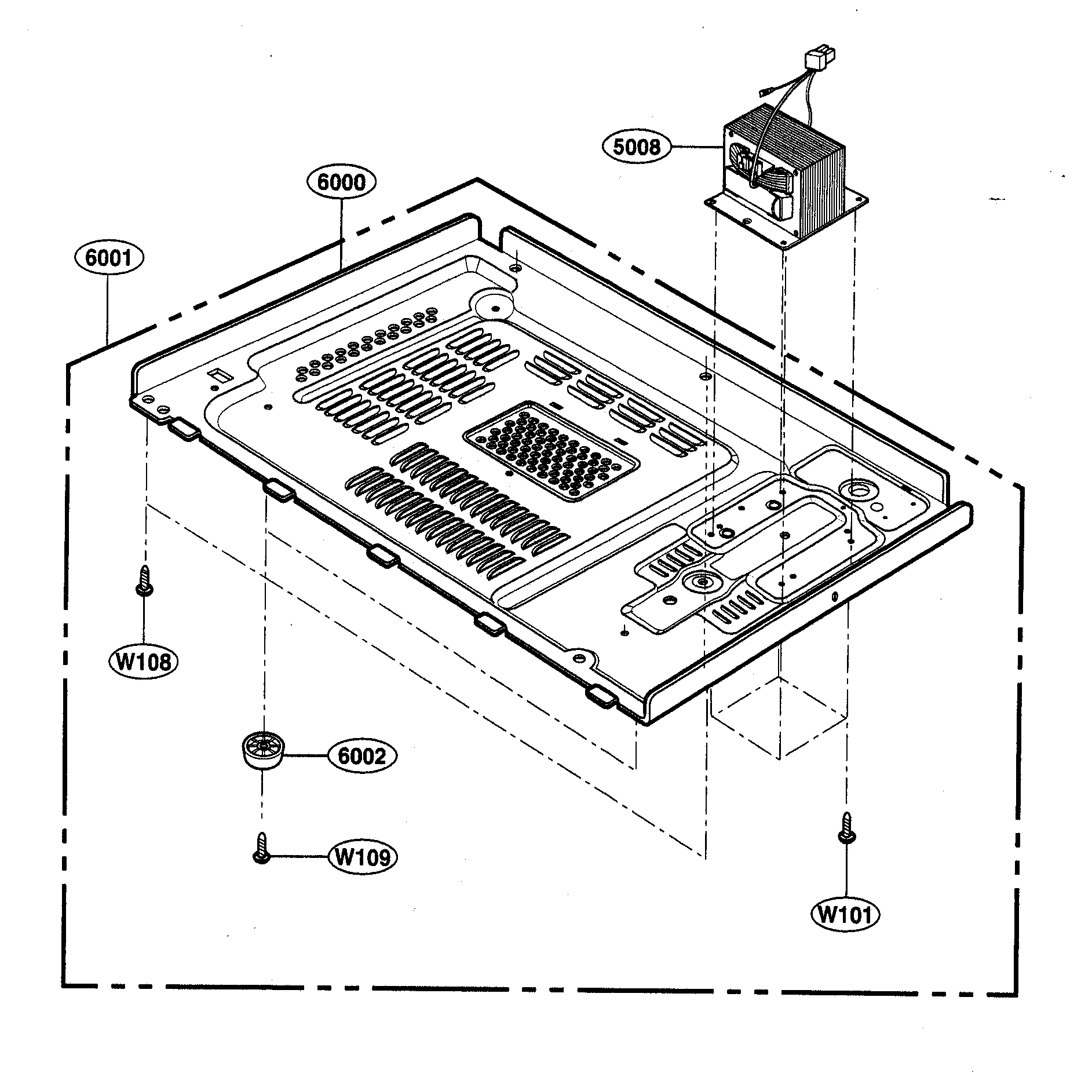

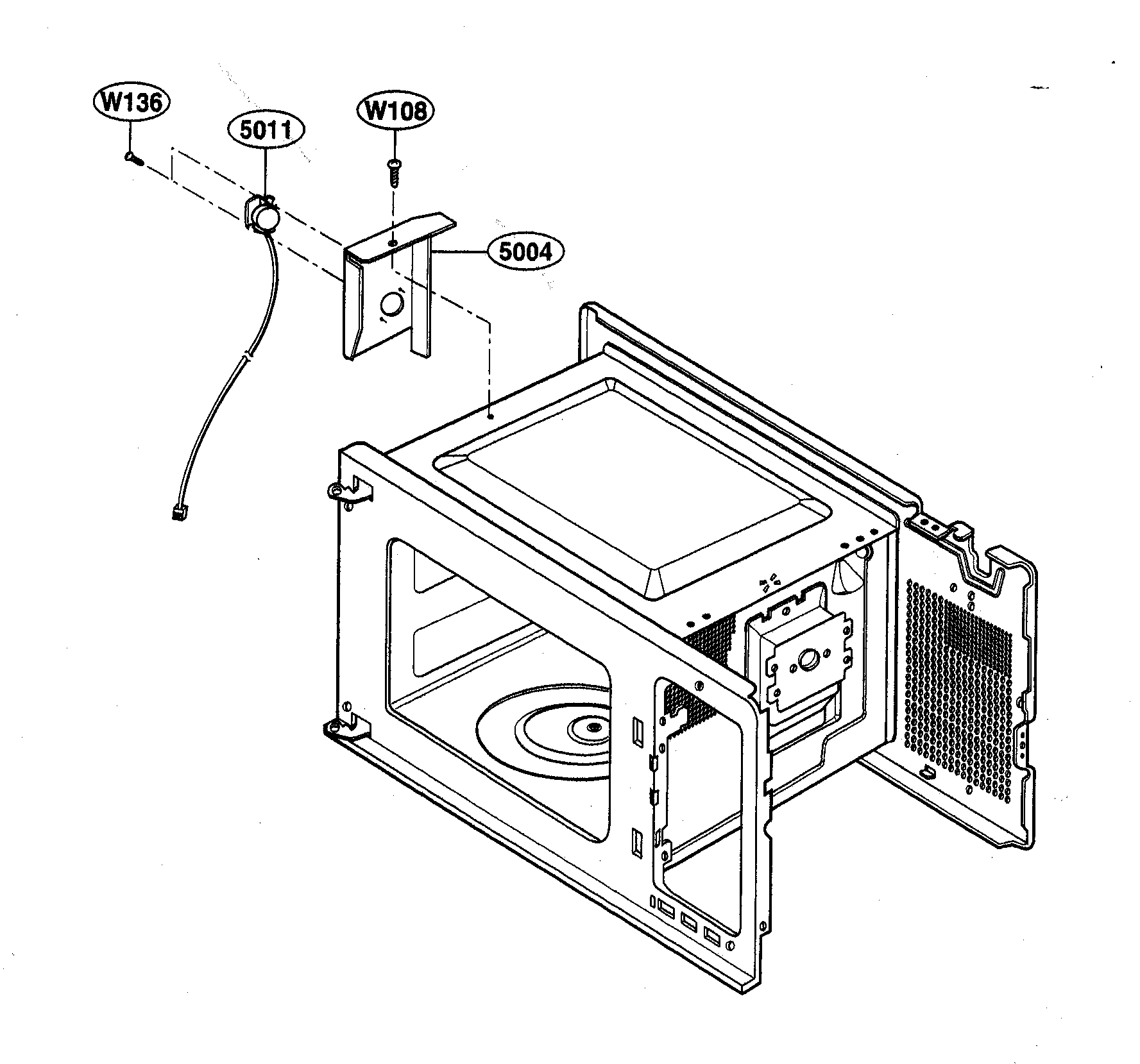

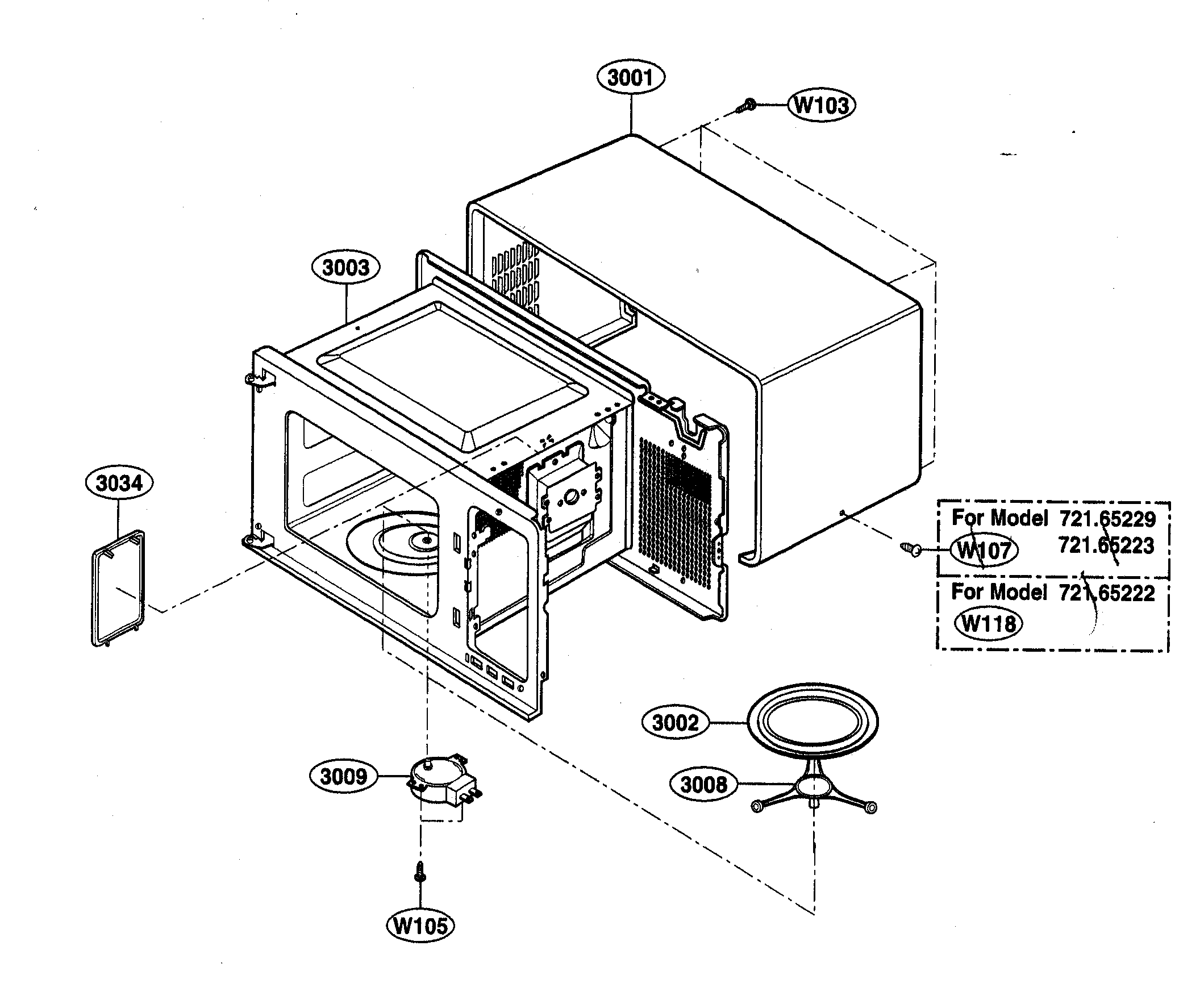

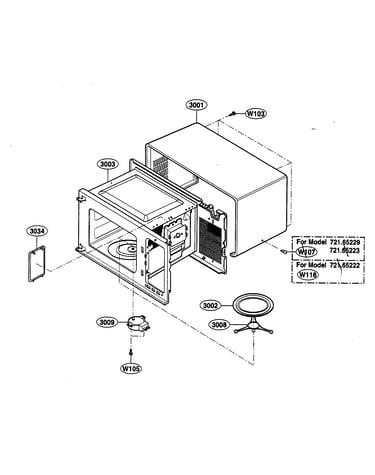

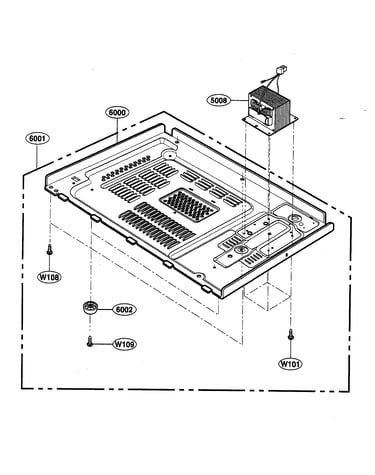

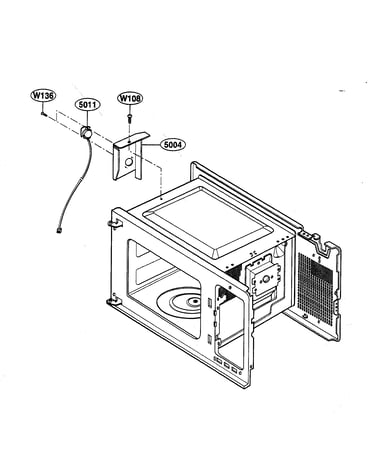

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5009

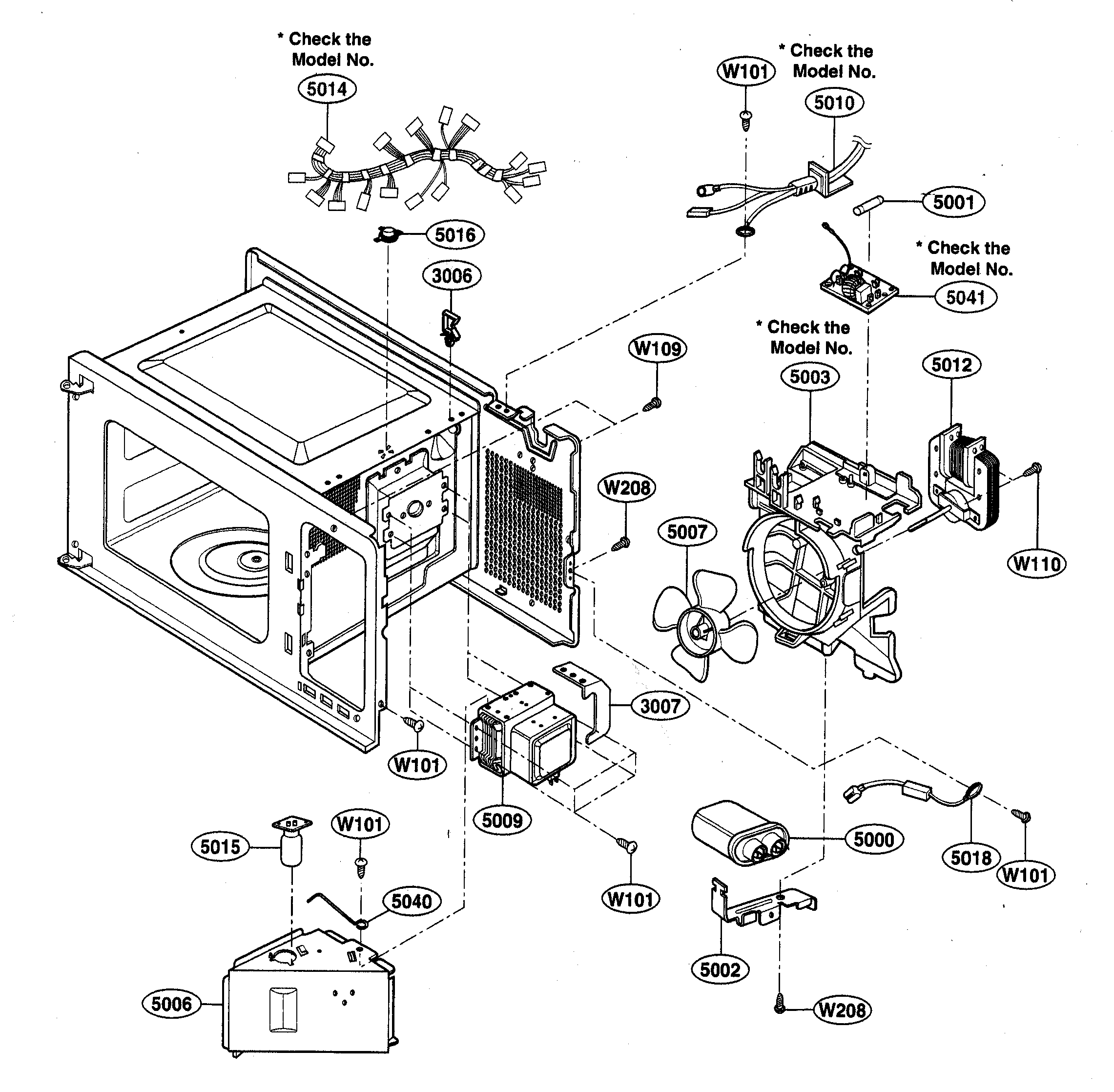

Interior parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Capacitor 0CZZW1H001Q
#5000

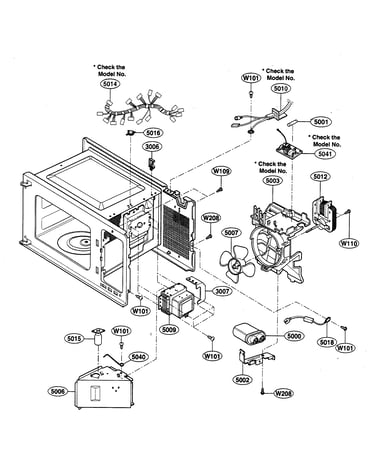

Interior parts diagram

Capacitor

Part #0CZZW1H001Q

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H001Q. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
18% OFF Phone Price : $33.47
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

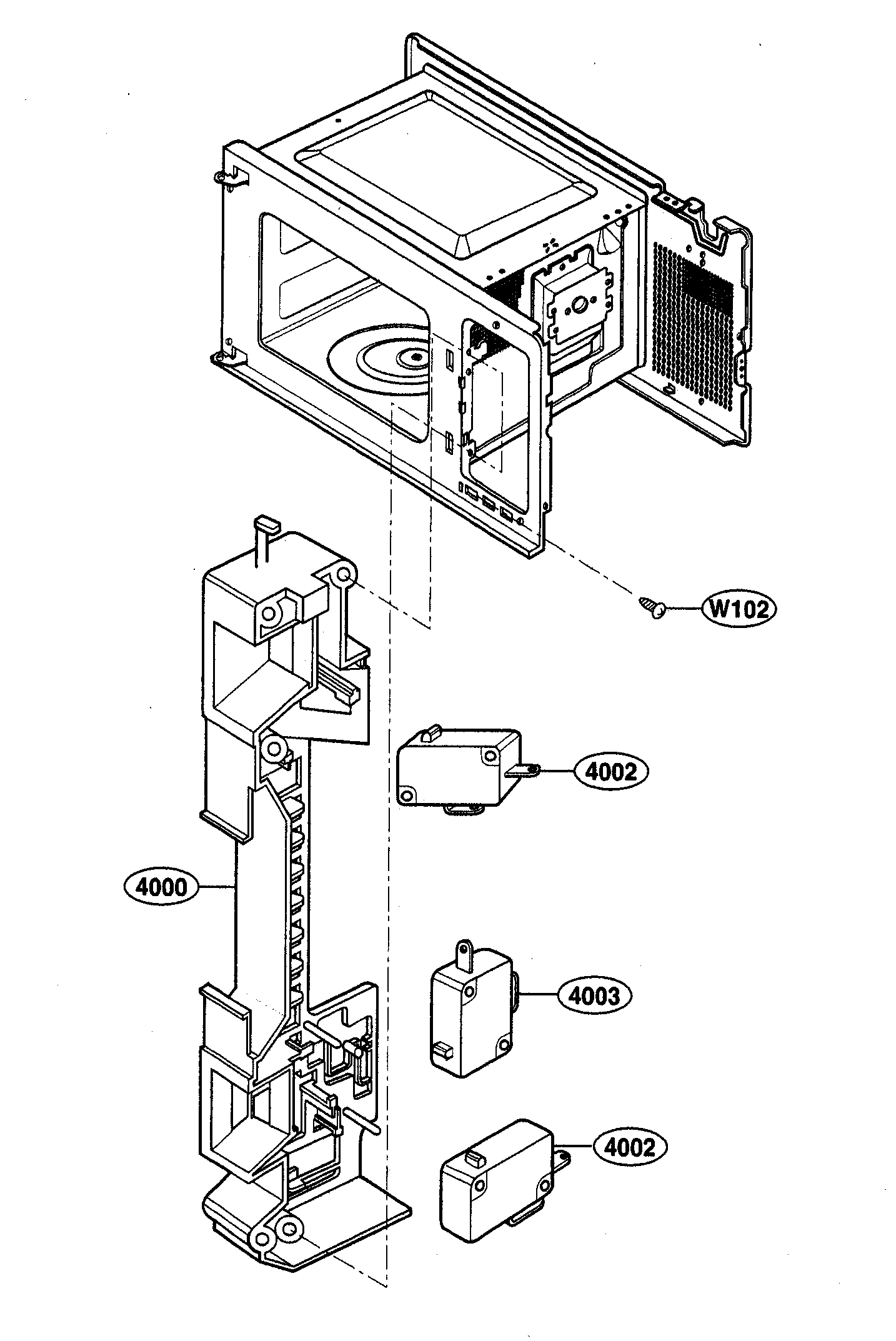

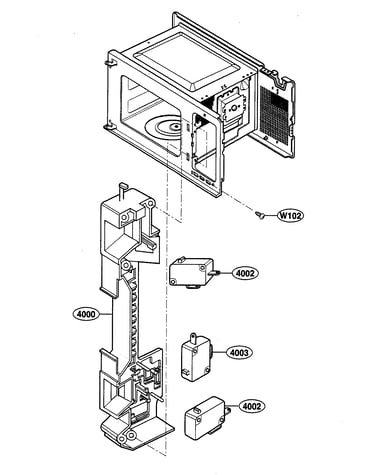

Latch board diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch board diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Fuse 3B74133Q
#5001

Interior parts diagram

Microwave fuse

Part #3B74133Q

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Microwave Door Latch Hook (replaces 4026w2a012a) 4026W2A016A
#1006

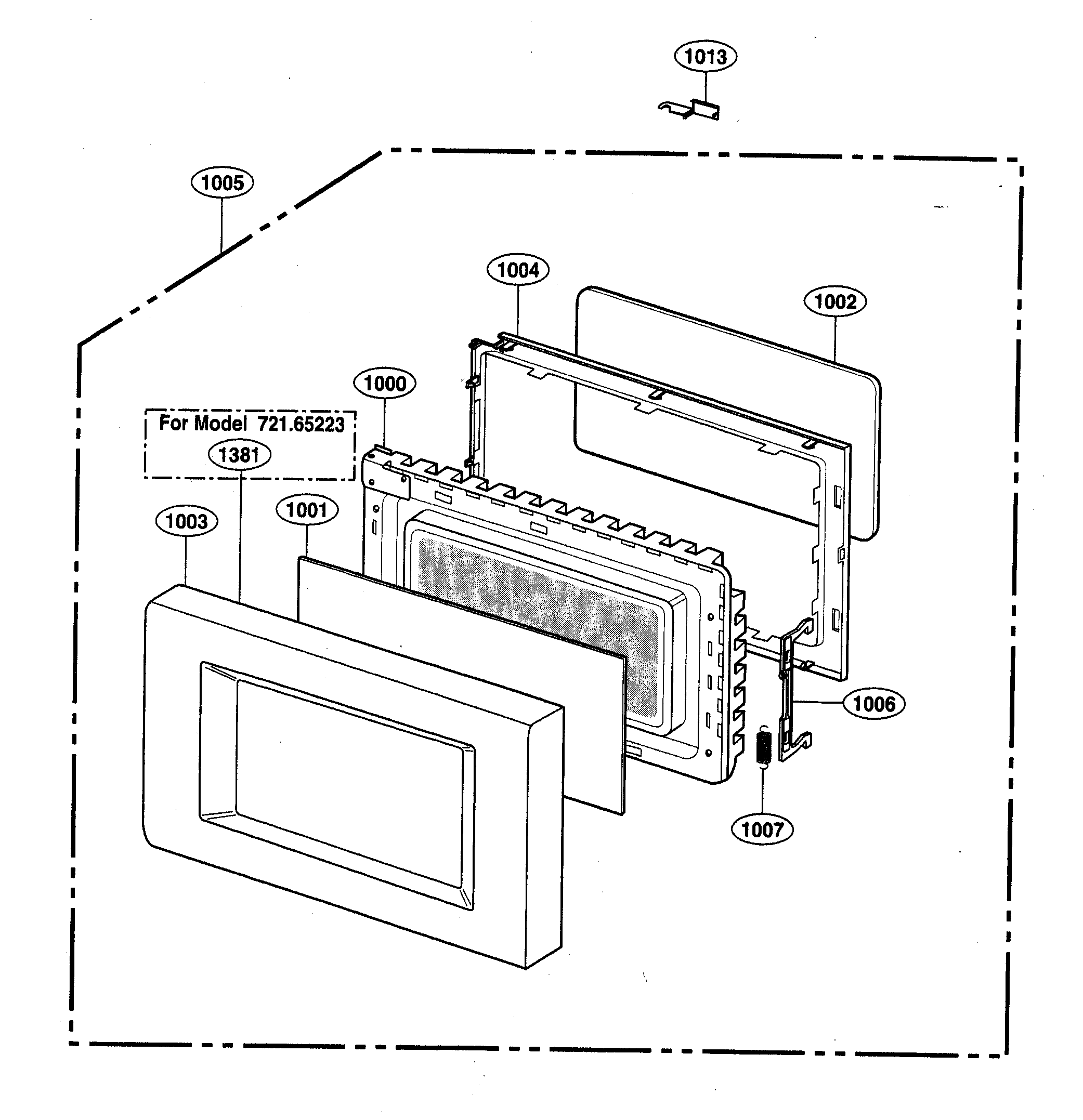

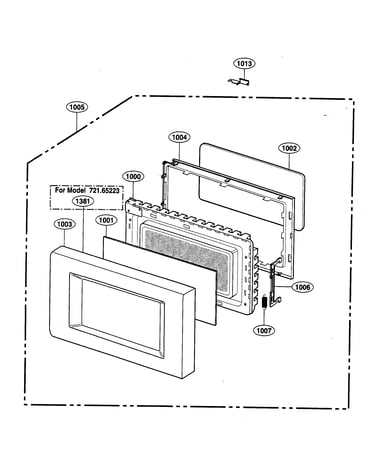

Door parts diagram

Microwave door latch hook (replaces 4026w2a012a)

Part #4026W2A016A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Door Release Button Spring 4B72023B
#2005

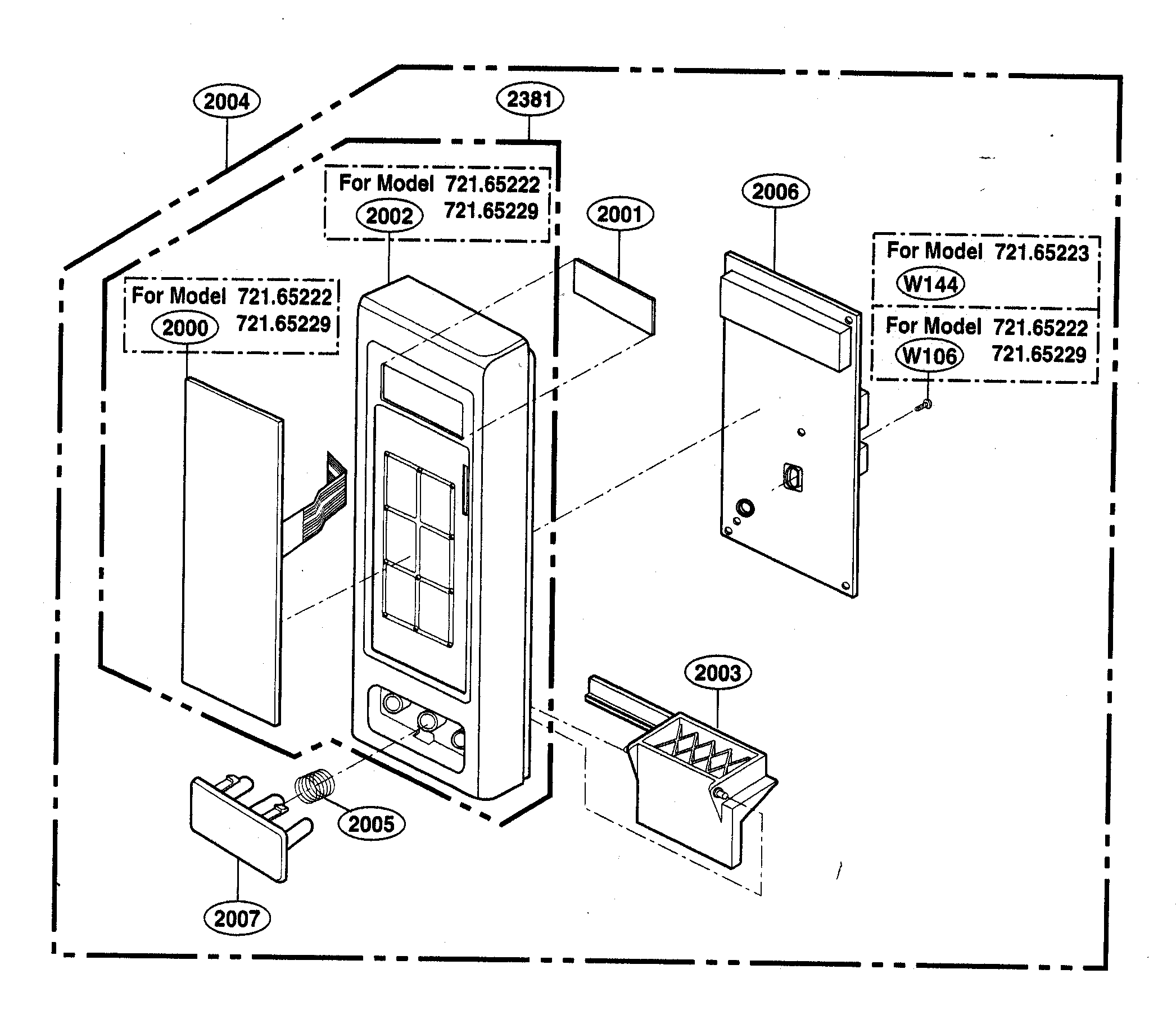

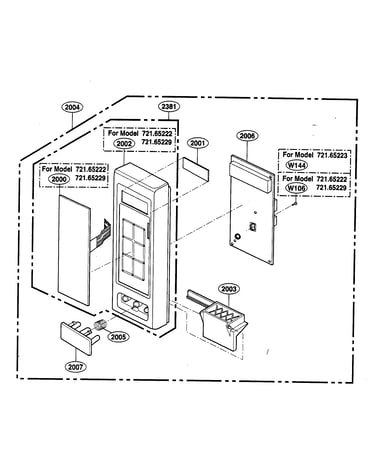

Controller diagram

Microwave door release button spring

Part #4B72023B

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Door Frame 3213W1A034H
#1000

Door parts diagram

Door frame

Part #3213W1A034H

$48.40 |
11% OFF Phone Price : $54.40
In Stock
Us Pressed Steel Screw 1TPL0402818
#W106

Controller diagram

Us pressed steel screw

Part #1TPL0402818

This item is not returnable
$2.27
In Stock
Controller 4781W1M289Q
#2004

Controller diagram

Controller

Part #4781W1M289Q

$146.70
In Stock
