Ryobi
Drill/Driver

Model # D-1010 Official Ryobi electric drill

Here are the diagrams and repair parts for Official Ryobi D-1010 electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Armature 6031170
#24

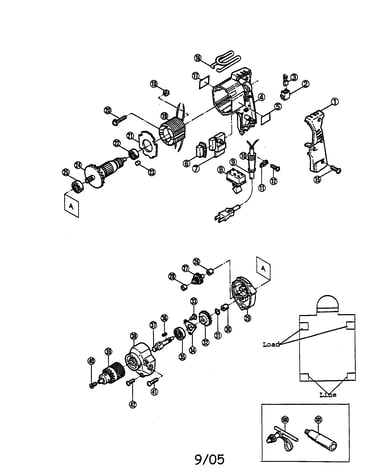

Electric drill diagram

Armature

Part #6031170

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 6911620
#5

Electric drill diagram

Nameplate

Part #6911620

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 9840627
#25

Electric drill diagram

Ball bearing

Part #9840627

The manufacturer no longer makes this part, and there's no substitute part

Carry Hook 6180141
#16

Electric drill diagram

Carry hook

Part #6180141

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060420
#15

Electric drill diagram

Screw

Part #9060420

The manufacturer no longer makes this part, and there's no substitute part

10mm (3/8") Drill Chuck 6940323
#39

Electric drill diagram

10mm (3/8") drill chuck

Part #6940323

The manufacturer no longer makes this part, and there's no substitute part

Bearing Clamp 6151136
#34

Electric drill diagram

Bearing clamp

Part #6151136

The manufacturer no longer makes this part, and there's no substitute part

Phillips Pan Screw M4 X 40 (2) 9020440
#20

Electric drill diagram

Phillips pan screw m4 x 40 (2)

Part #9020440

The manufacturer no longer makes this part, and there's no substitute part

Fan Casing 6490197
#21

Electric drill diagram

Fan casing

Part #6490197

The manufacturer no longer makes this part, and there's no substitute part

Housing 6800859
#4

Electric drill diagram

Housing

Part #6800859

The manufacturer no longer makes this part, and there's no substitute part
