Model # CT05D Official Pioneer stereo double cassette deck

Here are the diagrams and repair parts for Official Pioneer CT05D stereo double cassette deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Belt REB1254

#NI

All parts diagram

Belt

Part #REB1254

The manufacturer no longer makes this part, and there's no substitute part

Panel RAH2799
#7

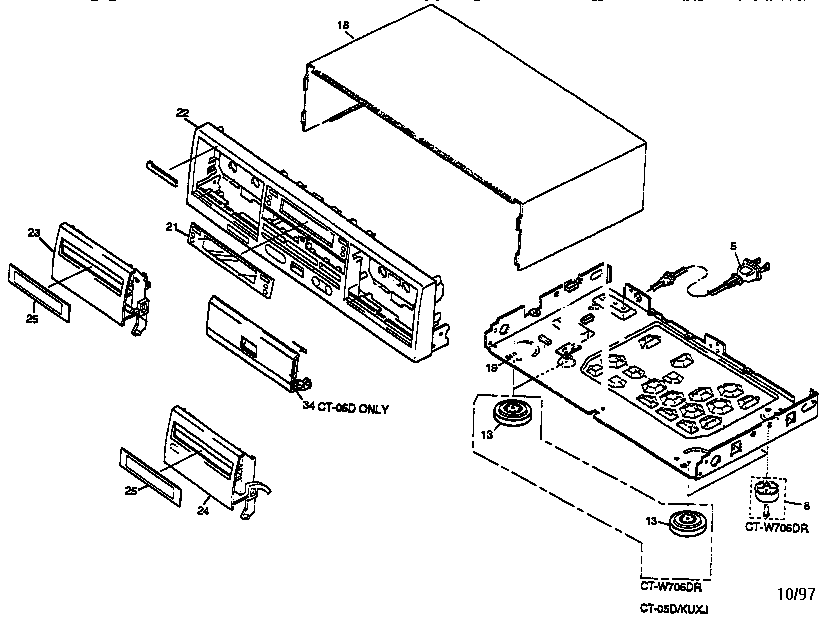

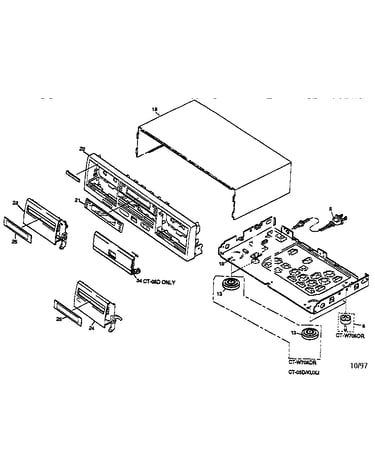

Cabinet parts diagram

Panel

Part #RAH2799

The manufacturer no longer makes this part, and there's no substitute part

Square Belt PEB1127

#NI

All parts diagram

Square belt

Part #PEB1127

The manufacturer no longer makes this part, and there's no substitute part

Loc-24:door Pocket R RAH2798
#5

Cabinet parts diagram

Loc-24:door pocket r

Part #RAH2798

The manufacturer no longer makes this part, and there's no substitute part

Foot Assembly AEC1531
#9

Cabinet parts diagram

Foot assembly

Part #AEC1531

The manufacturer no longer makes this part, and there's no substitute part

Flat Belt REB1157

#NI

All parts diagram

Flat belt

Part #REB1157

The manufacturer no longer makes this part, and there's no substitute part

10 Key Pcb Assembly NON-SERVICE-PART

#NI

All parts diagram

10 key pcb assembly

Part #NON-SERVICE-PART

The manufacturer no longer makes this part, and there's no substitute part

Dc Motor PXM1010

#NI

All parts diagram

Dc motor

Part #PXM1010

The manufacturer no longer makes this part, and there's no substitute part

Insulator PNW1912
#1

Cabinet parts diagram

Insulator

Part #PNW1912

The manufacturer no longer makes this part, and there's no substitute part

Panel RAH2819
#3

Cabinet parts diagram

Panel

Part #RAH2819

The manufacturer no longer makes this part, and there's no substitute part
