Furnace

Model # LWG-168 Official Yukon furnace

Here are the diagrams and repair parts for Official Yukon LWG-168 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 236 parts |

Transformer 10106700

Transformer

Part #10106700

The manufacturer no longer makes this part, and there's no substitute part

Switch F&l 10107000

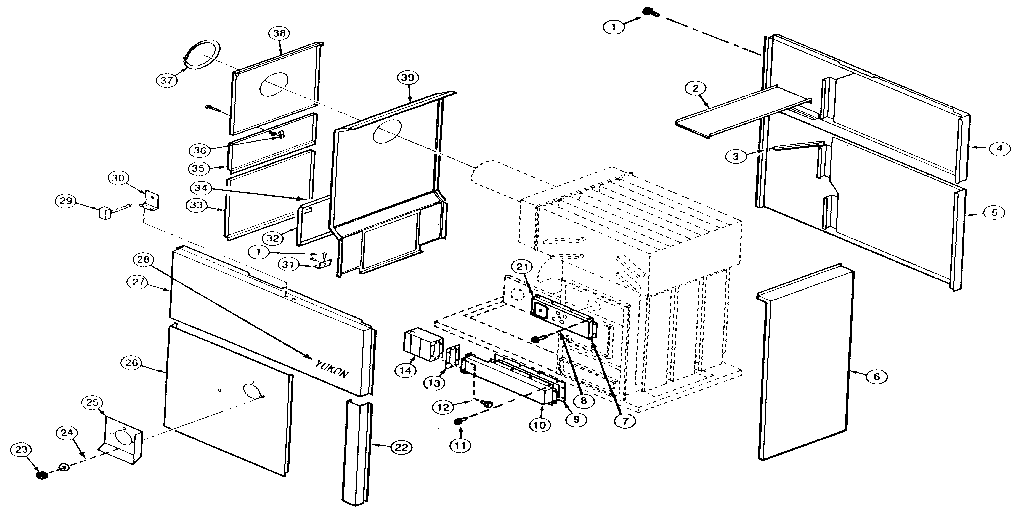

Casing assembly diagram

Switch f&l

Part #10107000

The manufacturer no longer makes this part, and there's no substitute part

Washer 10106100

Washer

Part #10106100

The manufacturer no longer makes this part, and there's no substitute part

Coupling 13424

Oil burner assembly diagram

Coupling

Part #13424

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 10102600

#NI

All parts diagram

Air filter

Part #10102600

The manufacturer no longer makes this part, and there's no substitute part

Handle 20106013

Handle

Part #20106013

The manufacturer no longer makes this part, and there's no substitute part

Coal Grate 10122400

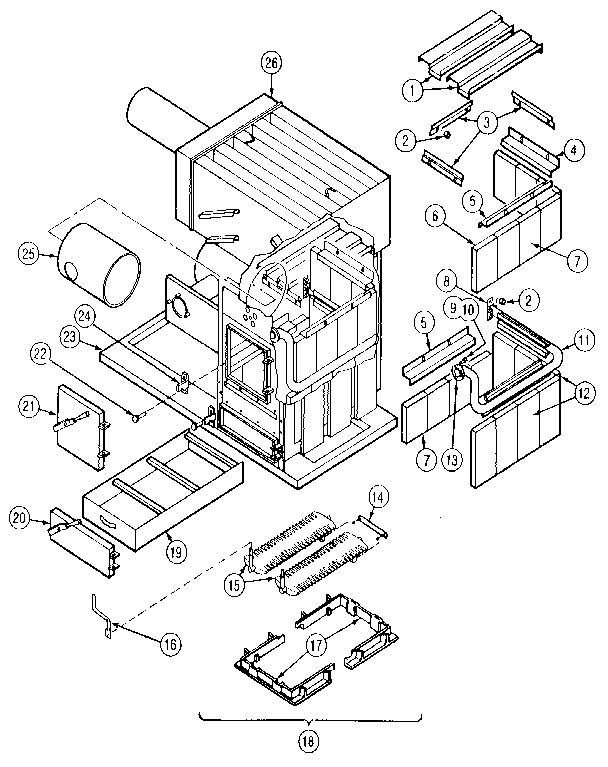

Combustion chamber assy diagram

Coal grate

Part #10122400

The manufacturer no longer makes this part, and there's no substitute part

Grommet 10102300

Blower assembly diagram

Grommet

Part #10102300

The manufacturer no longer makes this part, and there's no substitute part

Control Unit 10120701

Casing assembly diagram

Control unit

Part #10120701

The manufacturer no longer makes this part, and there's no substitute part

Cord 13029

Oil burner assembly diagram

Cord

Part #13029

The manufacturer no longer makes this part, and there's no substitute part
