Model # AJK06LHV3 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJK06LHV3 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Power Cord WJ35X174
#70

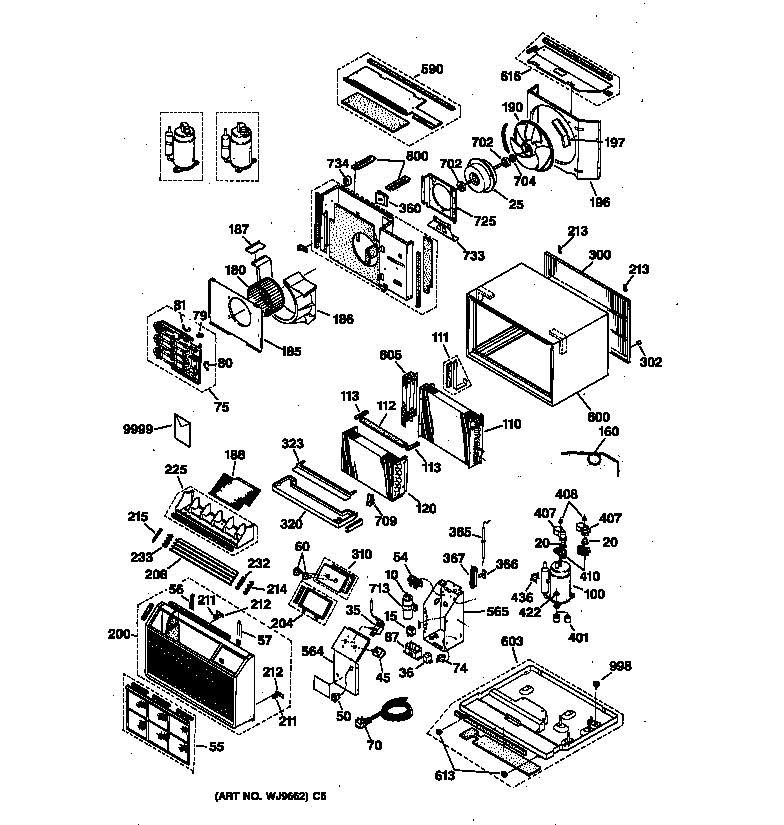

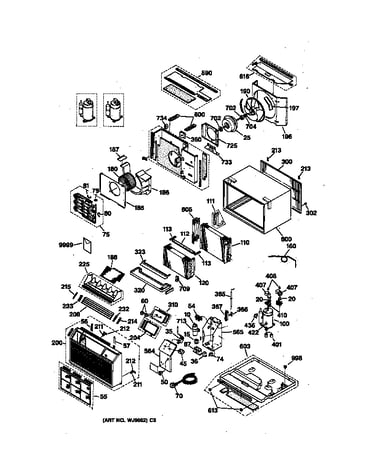

Body parts diagram

Power cord

Part #WJ35X174

$36.99
In Stock
Use & Care A 49-7326
#9999

Body parts diagram

Use & care a

Part #49-7326

$8.49
In Stock
Room Air Conditioner Air Filter (replaces Wj85x0158) WJ85X158
#55

Body parts diagram

Room air conditioner air filter (replaces wj85x0158)

Part #WJ85X158

$84.76 |
7% OFF Phone Price : $90.76
In Stock
Grille WJ71X2281
#300

Body parts diagram

Grille

Part #WJ71X2281

Replaced by #RAG13A

?
Manufacturer substitution
This part replaces WJ71X2281. Substitute parts can look different from the original.
$37.79 |
14% OFF Phone Price : $43.79
In Stock
Accum Cla WJ2X510
#436

Body parts diagram

Accum cla

Part #WJ2X510

The manufacturer no longer makes this part, and there's no substitute part

Sash Seal WJ43X475
#1053

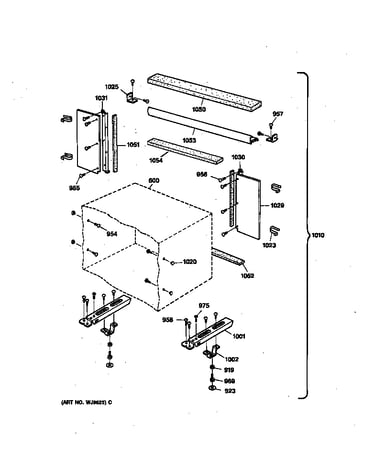

Mounting parts diagram

Sash seal

Part #WJ43X475

The manufacturer no longer makes this part, and there's no substitute part

Drip Tray WJ70X367
#320

Body parts diagram

Drip tray

Part #WJ70X367

The manufacturer no longer makes this part, and there's no substitute part

Bx Plate Element WJ79X550
#565

Body parts diagram

Bx plate element

Part #WJ79X550

The manufacturer no longer makes this part, and there's no substitute part

Brkt, Dmpr M WJ66X485
#367

Body parts diagram

Brkt, dmpr m

Part #WJ66X485

The manufacturer no longer makes this part, and there's no substitute part

Condenser Cover WJ79X545
#616

Body parts diagram

Condenser cover

Part #WJ79X545

The manufacturer no longer makes this part, and there's no substitute part
