Amana
Countertop Microwave

Model # 1720.000 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 1720000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

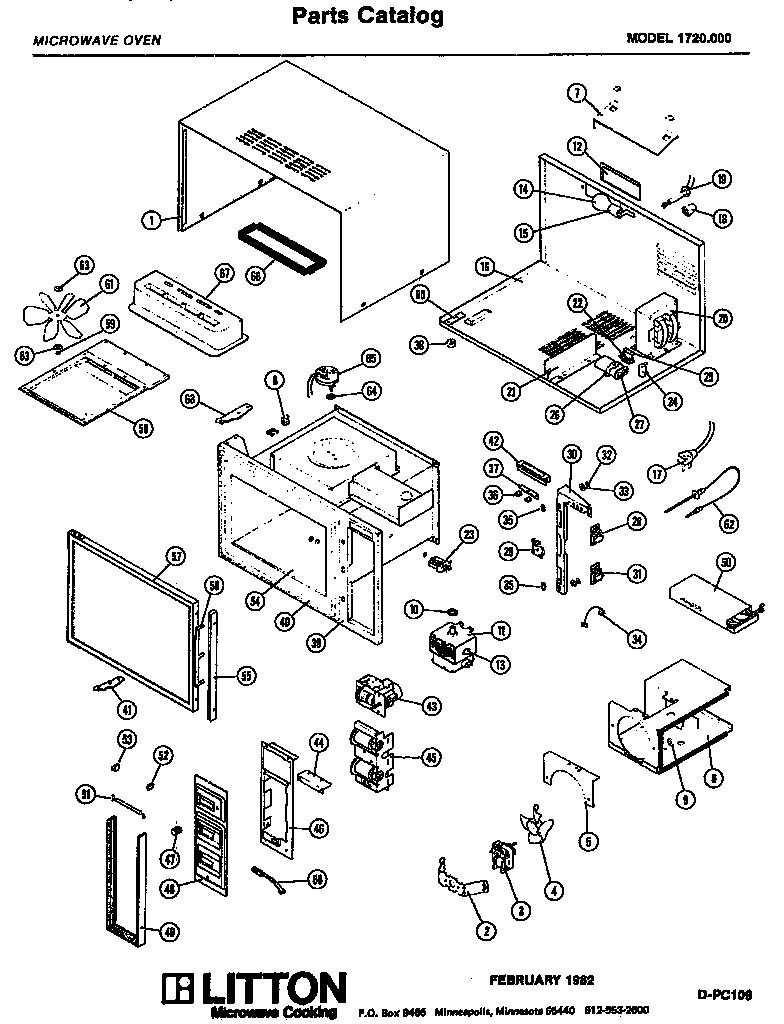

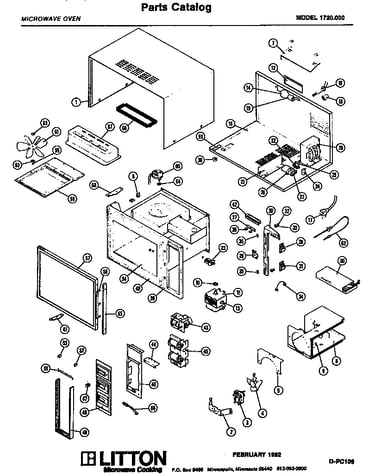

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Screw, Hook Mounting M1D631
#56B

Microwave parts diagram

Screw, hook mounting

Part #M1D631

The manufacturer no longer makes this part, and there's no substitute part

Digital Timer M30D66
#43A

Microwave parts diagram

Digital timer

Part #M30D66

The manufacturer no longer makes this part, and there's no substitute part

H. V. Lead #31 M5D216
#69B

Microwave parts diagram

H. v. lead #31

Part #M5D216

The manufacturer no longer makes this part, and there's no substitute part

Lockwasher, Cord Grounding M1D84
#17E

Microwave parts diagram

Lockwasher, cord grounding

Part #M1D84

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Support M20D139
#5

Microwave parts diagram

Microwave blower support

Part #M20D139

The manufacturer no longer makes this part, and there's no substitute part

Hole Plug M1D612
#58B

Microwave parts diagram

Hole plug

Part #M1D612

The manufacturer no longer makes this part, and there's no substitute part

Insulator M2D439
#16B

Microwave parts diagram

Insulator

Part #M2D439

The manufacturer no longer makes this part, and there's no substitute part

Nut M1D615
#23D

Microwave parts diagram

Nut

Part #M1D615

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket & Bracket Assembly M5D106
#15A

Microwave parts diagram

Lamp socket & bracket assembly

Part #M5D106

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer Mtg. M1D138
#1C

Microwave parts diagram

Lock washer mtg.

Part #M1D138

The manufacturer no longer makes this part, and there's no substitute part
