Electric Line Trimmer

Model # 944511100 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 944511100 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Line Trimmer Spool Retainer Clip (replaces 5304019-57, 530-401957) 530401957
#16

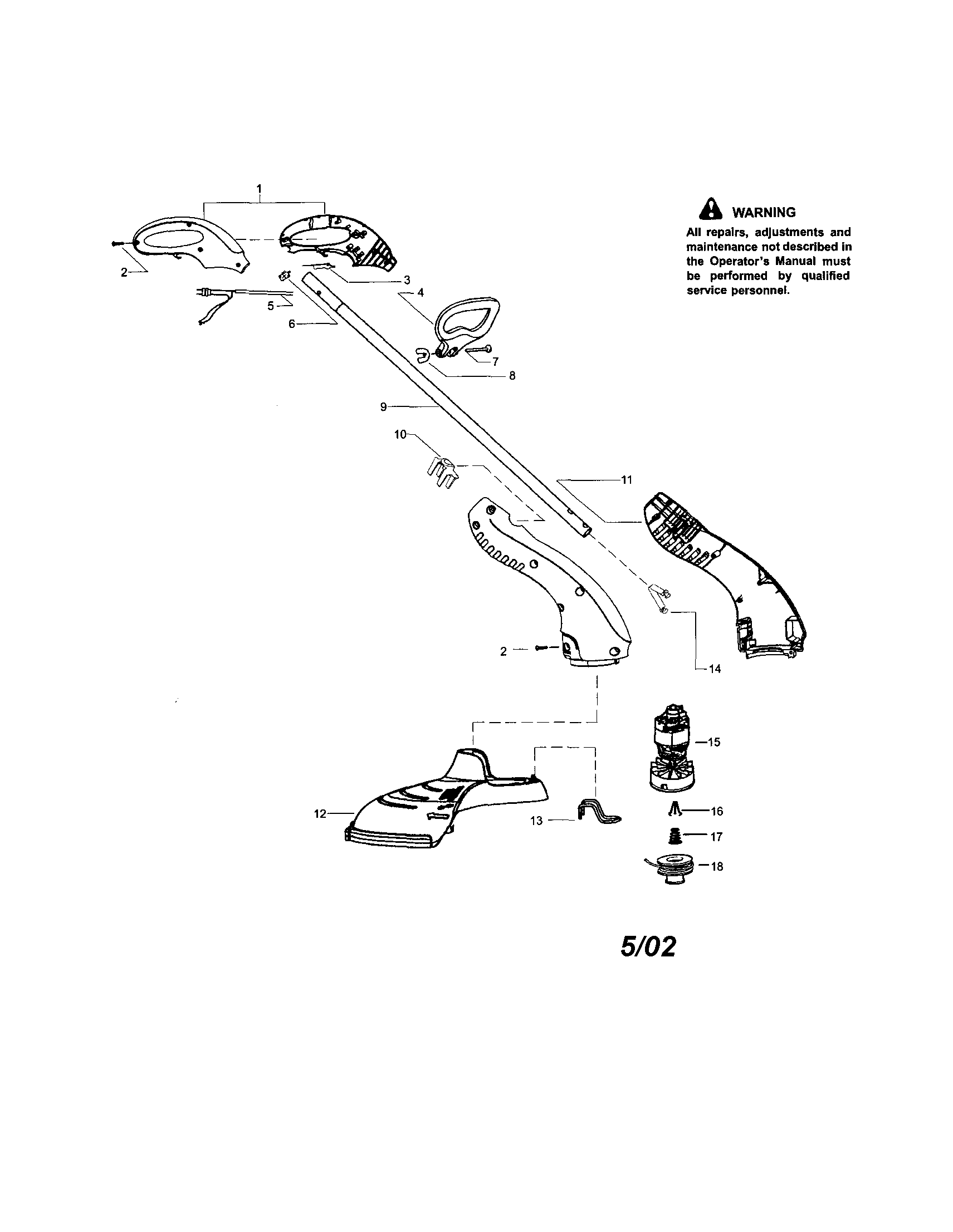

Trimmer diagram

Line trimmer spool retainer clip (replaces 5304019-57, 530-401957)

Part #530401957

This item is not returnable
$5.54
In Stock
Line Trimmer On/off Switch 530402879
#6

Trimmer diagram

Line trimmer on/off switch

Part #530402879

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Wing Nut 530016118
#8

Trimmer diagram

Wing nut

Part #530016118

Replaced by #530091373

?
Manufacturer substitution
This part replaces 530016118. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Shield 530403915
#12

Trimmer diagram

Shield

Part #530403915

The manufacturer no longer makes this part, and there's no substitute part

Accy-spool With Line 944510210
#18

Trimmer diagram

Accy-spool with line

Part #944510210

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Handle 530403948
#1

Trimmer diagram

Line trimmer handle

Part #530403948

The manufacturer no longer makes this part, and there's no substitute part

Decal 530403893

#NI04

All parts diagram

Decal

Part #530403893

The manufacturer no longer makes this part, and there's no substitute part

Decal 530403894

#NI03

All parts diagram

Decal

Part #530403894

The manufacturer no longer makes this part, and there's no substitute part

Trigger 530403818
#3

Trimmer diagram

Trigger

Part #530403818

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 530403908
#5

Trimmer diagram

Wire harness

Part #530403908

The manufacturer no longer makes this part, and there's no substitute part
