Goldstar
Room Air Conditioner

Model # R1802 Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar R1802 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

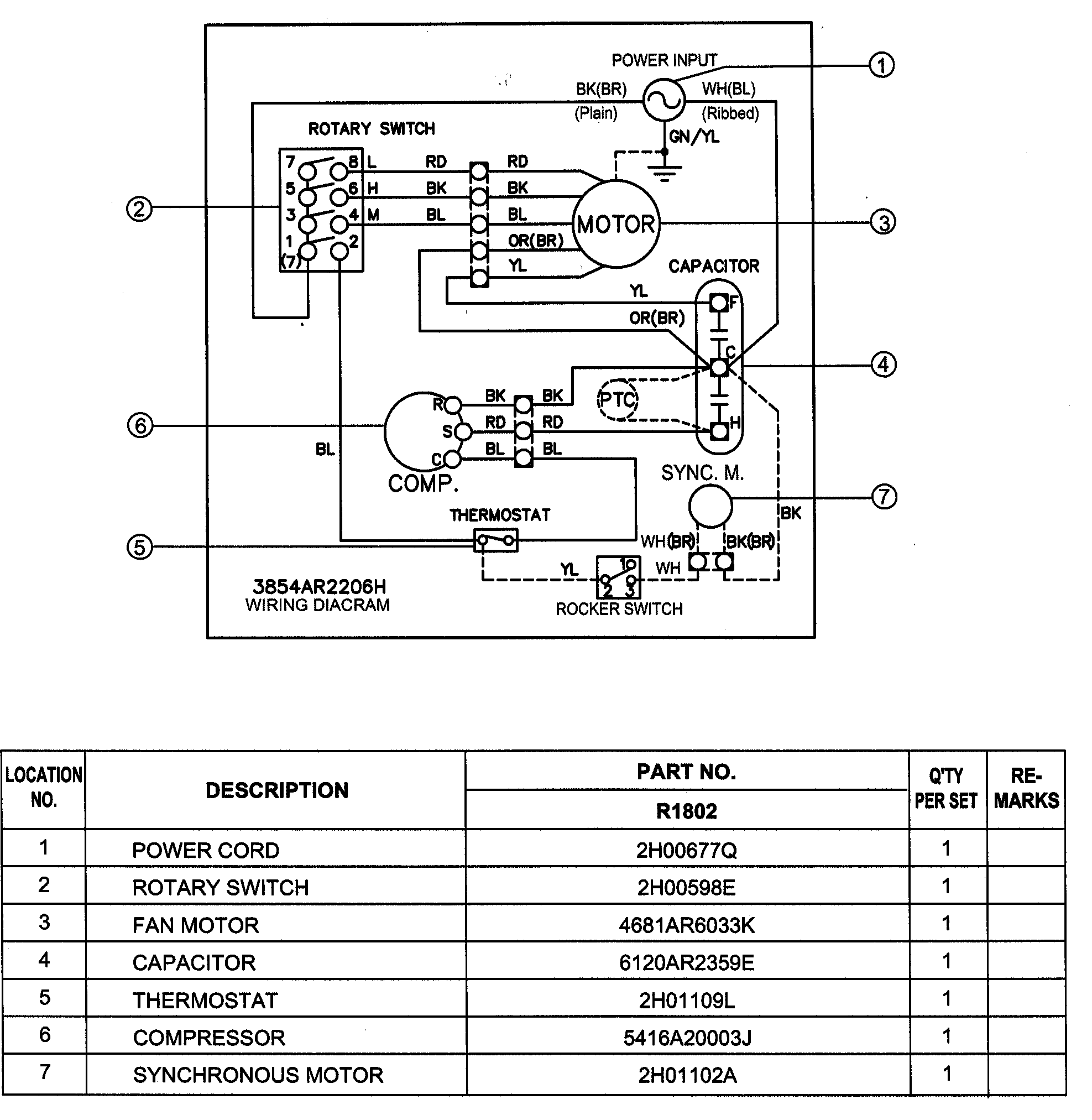

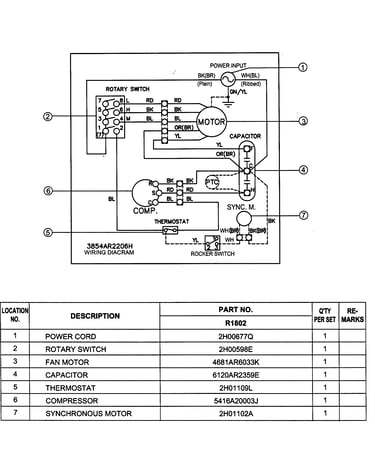

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Capacitor 6120AR2194D
#48

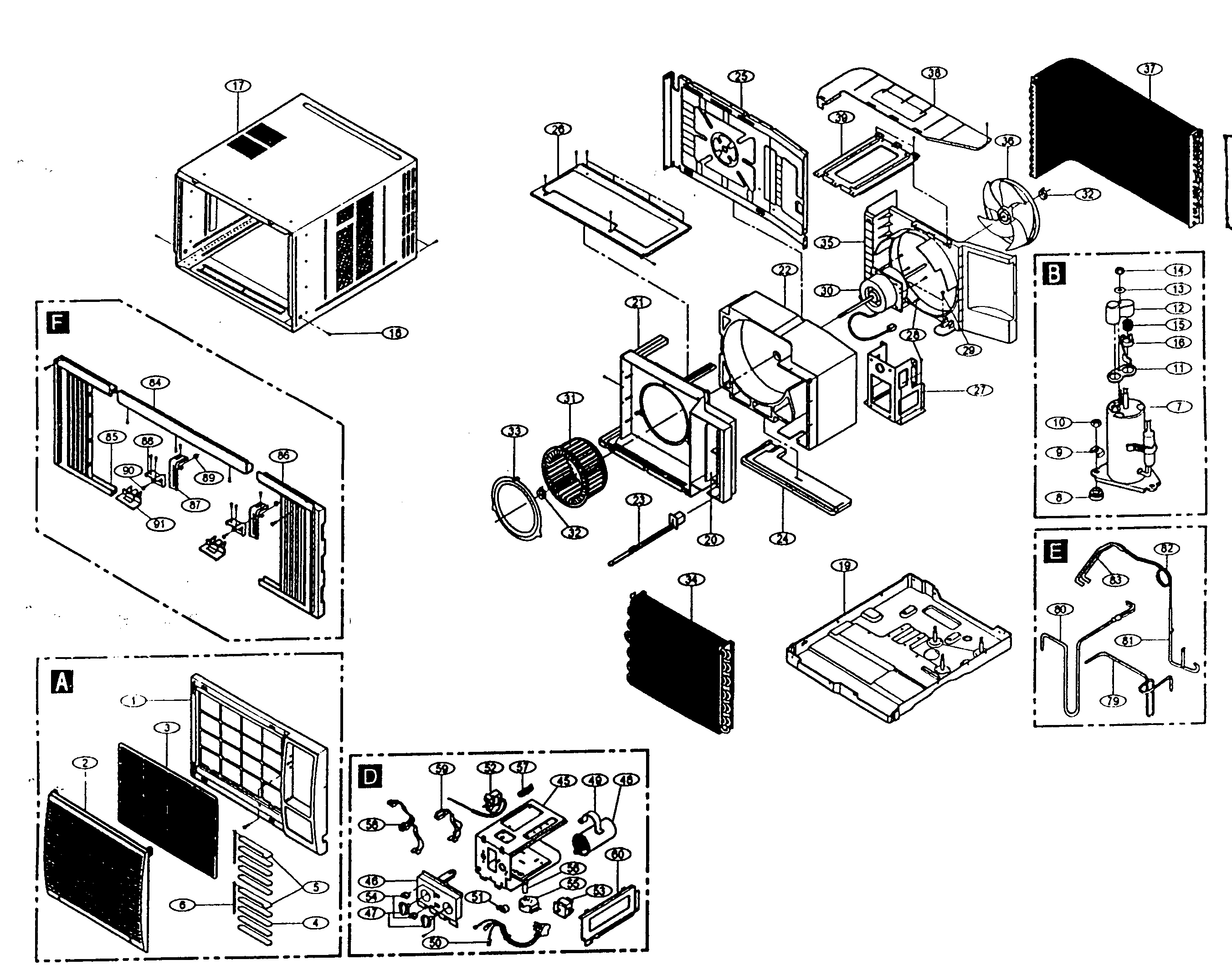

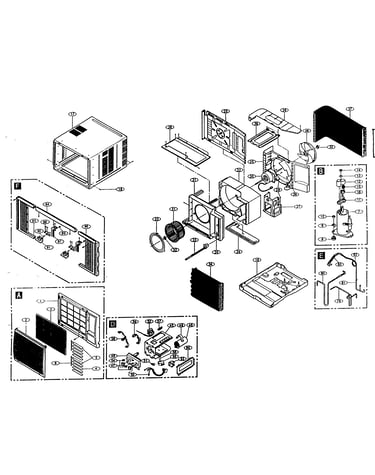

Cabinet parts diagram

Capacitor

Part #6120AR2194D

Replaced by #EAE51432202

?
Manufacturer substitution
This part replaces 6120AR2194D. Substitute parts can look different from the original.
$33.61 |
15% OFF Phone Price : $39.61
In Stock
Room Air Conditioner Blower Wheel 5834AR1599A
#31

Cabinet parts diagram

Room air conditioner blower wheel

Part #5834AR1599A

Replaced by #5834AR1599B

?
Manufacturer substitution
This part replaces 5834AR1599A. Substitute parts can look different from the original.
$38.30 |
14% OFF Phone Price : $44.30
Back Order
Bracket Support 3H01479D
#87

Cabinet parts diagram

Bracket support

Part #3H01479D

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$71.96
In Stock
Sill Bracket 3H01395C
#88

Cabinet parts diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$71.96
In Stock
Screw 4H00006D
#28

Cabinet parts diagram

Screw

Part #4H00006D

This item is not returnable
$4.51
In Stock
Damper 4900AR7265A
#23

Cabinet parts diagram

Damper

Part #4900AR7265A

$71.93
In Stock
Lg Base Assembly 3040AR6160A
#24

Cabinet parts diagram

Lg base assembly

Part #3040AR6160A

This item is not returnable
$7.00
In Stock
Lg Screw 4001AR4160A
#29

Cabinet parts diagram

Lg screw

Part #4001AR4160A

This item is not returnable
$4.51
In Stock
Louver 4758AR7264A
#4

Cabinet parts diagram

Louver

Part #4758AR7264A

This item is not returnable
$4.51
In Stock
Rotary Switch 2H00598E
#53

Cabinet parts diagram

Rotary switch

Part #2H00598E

$27.47
In Stock
