Amana
Countertop Microwave

Model # 1436.004 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 1436004 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Microwave Blower Bracket M20D210
#29A

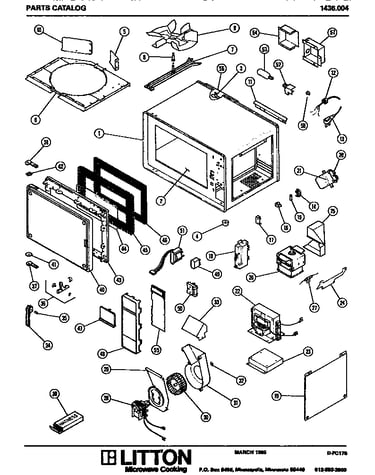

Microwave parts diagram

Microwave blower bracket

Part #M20D210

The manufacturer no longer makes this part, and there's no substitute part

Duct Cavity M65D267
#25A

Microwave parts diagram

Duct cavity

Part #M65D267

The manufacturer no longer makes this part, and there's no substitute part

Relay M16D92
#49A

Microwave parts diagram

Relay

Part #M16D92

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Blade M35D38
#9

Microwave parts diagram

Stirrer blade

Part #M35D38

The manufacturer no longer makes this part, and there's no substitute part

Magnetron M57D35
#26A

Microwave parts diagram

Magnetron

Part #M57D35

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover M45D29
#6A

Microwave parts diagram

Stirrer cover

Part #M45D29

The manufacturer no longer makes this part, and there's no substitute part

Outer Door Touch-up Paint M13D39

#NI

All parts diagram

Outer door touch-up paint

Part #M13D39

The manufacturer no longer makes this part, and there's no substitute part

H.v. Lead Kit M5D350
#39B

Microwave parts diagram

H.v. lead kit

Part #M5D350

The manufacturer no longer makes this part, and there's no substitute part

Foot M2D547
#4A

Microwave parts diagram

Foot

Part #M2D547

The manufacturer no longer makes this part, and there's no substitute part

Shelf (includes Sealant) M50D39
#2A

Microwave parts diagram

Shelf (includes sealant)

Part #M50D39

The manufacturer no longer makes this part, and there's no substitute part
