Model # 1P65TGA Official MTD engine

Here are the diagrams and repair parts for Official MTD 1P65TGA engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

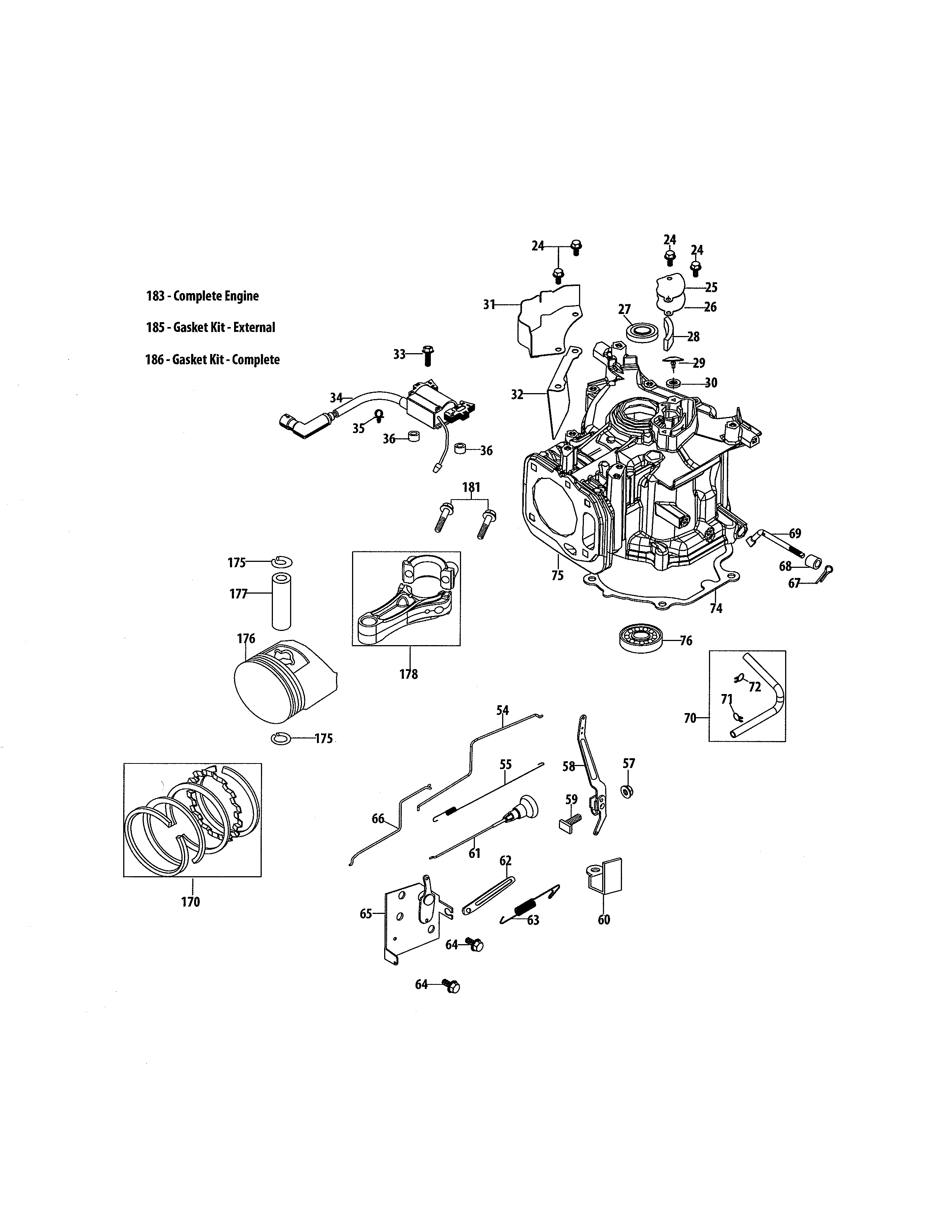

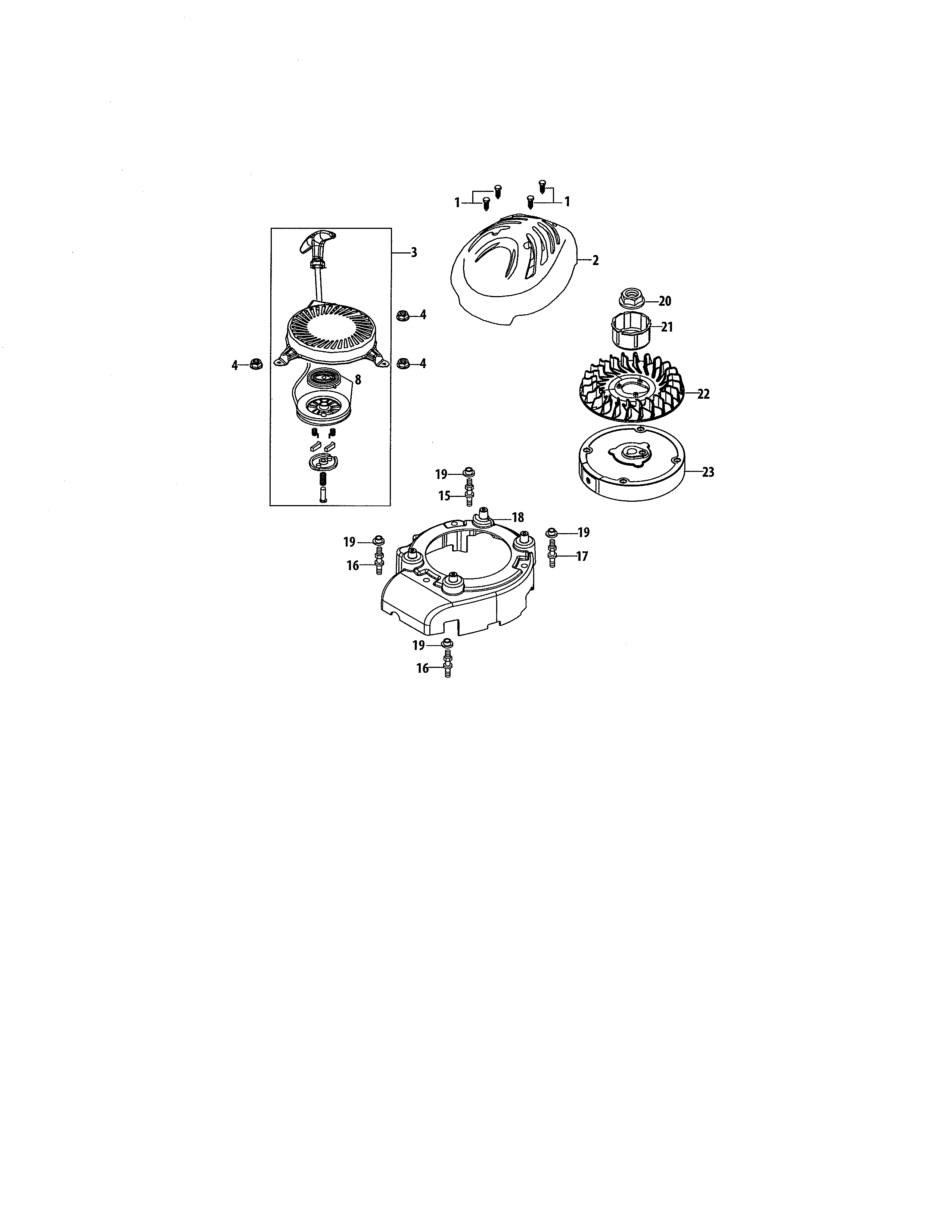

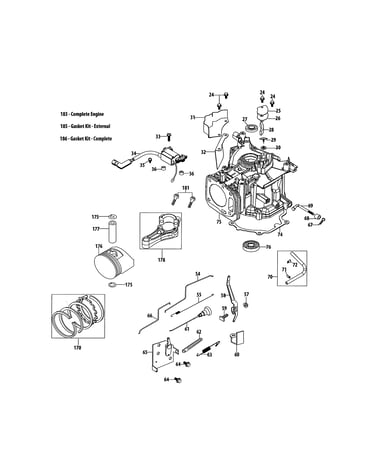

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Lawn & Garden Equipment Engine Spark Plug 951-10292
#145

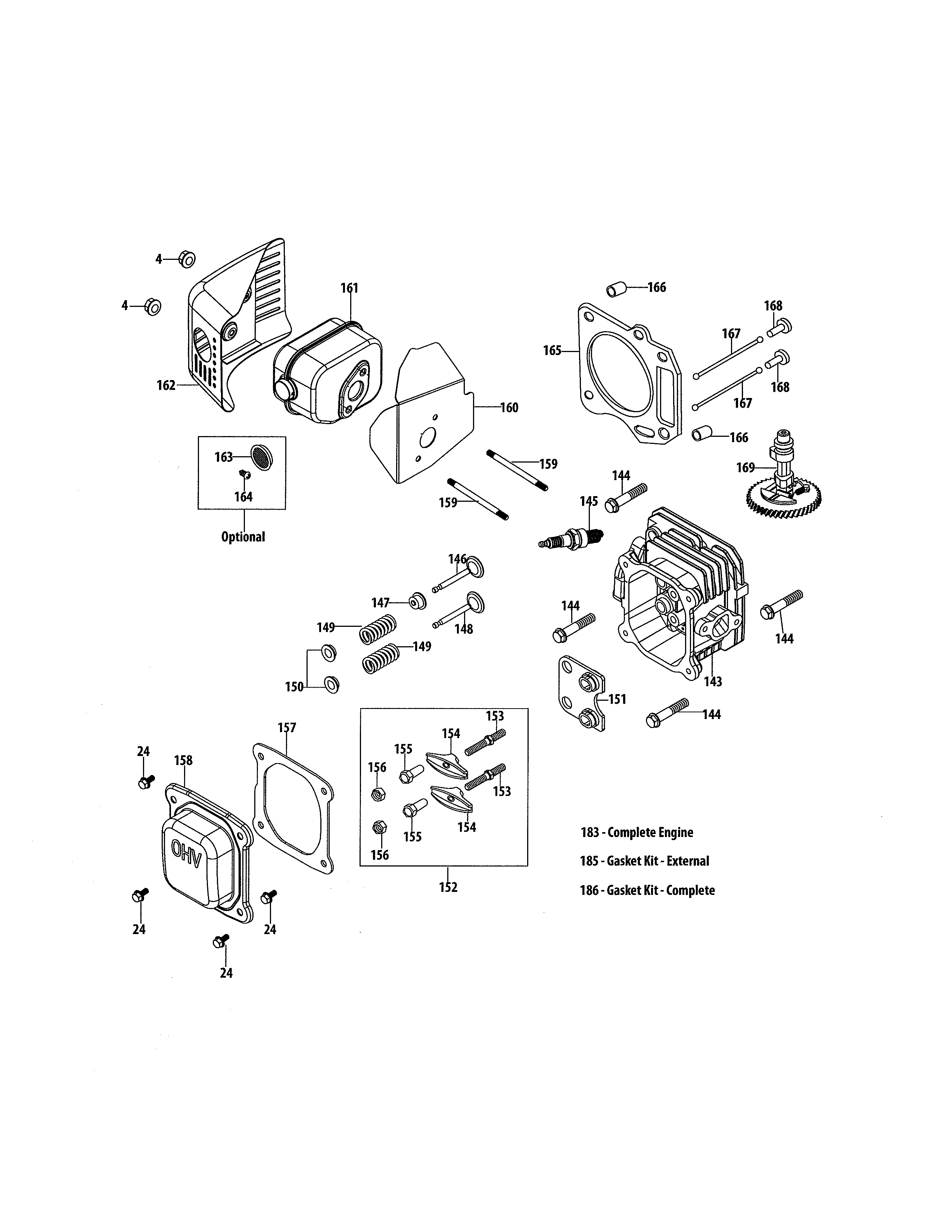

Cylinder head diagram

Lawn & garden equipment engine spark plug

Part #951-10292

Replaced by #951-10292A

?
Manufacturer substitution
This part replaces 951-10292. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.88 |
15% OFF Phone Price : $6.88
Back Order
Lawn & Garden Equipment Engine Carburetor Float Bowl Gasket 951-11589
#133

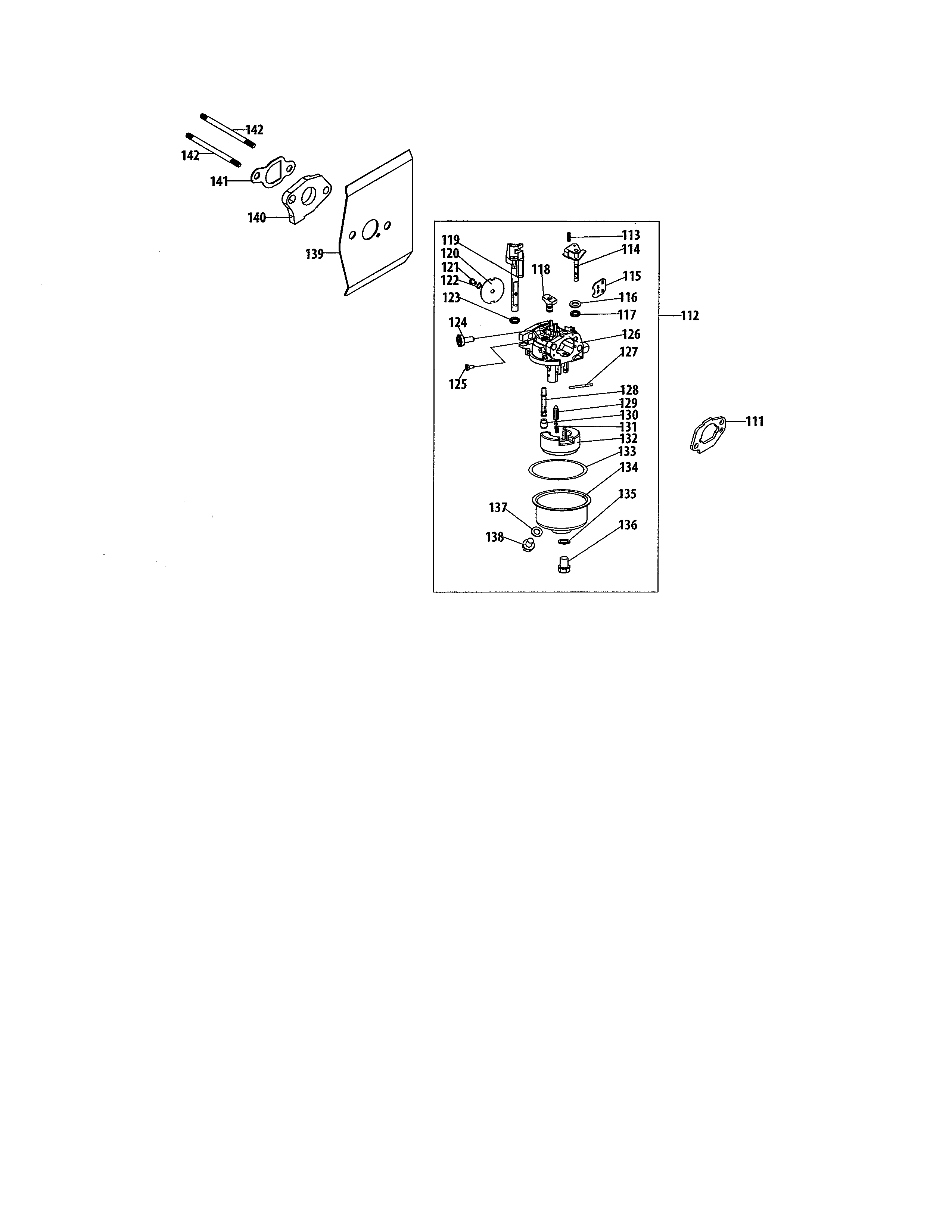

Carburetor diagram

Lawn & garden equipment engine carburetor float bowl gasket

Part #951-11589

Replaced by #951-11589A

?
Manufacturer substitution
This part replaces 951-11589. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Lawn Mower Air Filter (replaces 751-10298) 951-10298
#108

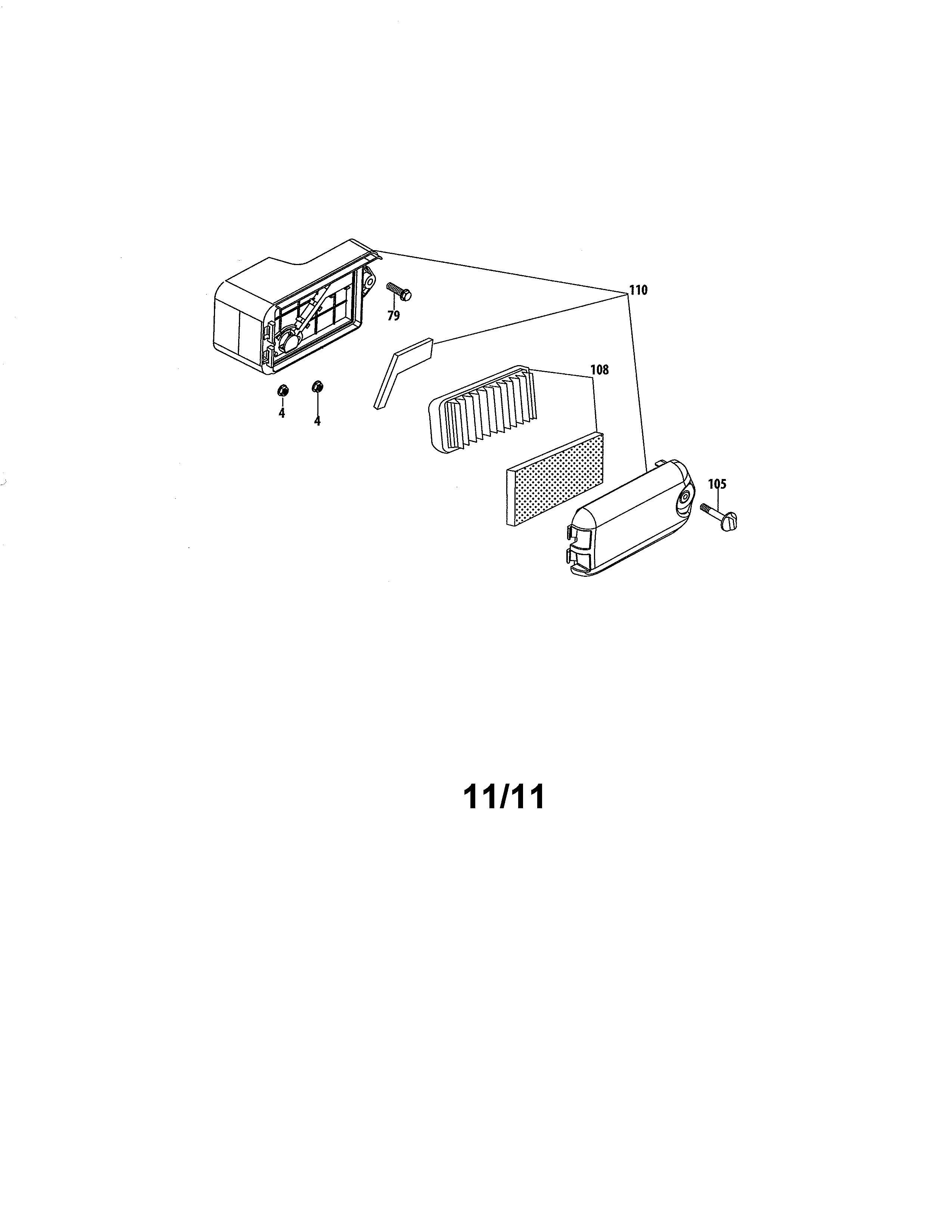

Air cleaner diagram

Lawn mower air filter (replaces 751-10298)

Part #951-10298

BEST SELLER
This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Lawn & Garden Equipment Engine Fuel Filter 951-10358A
#50

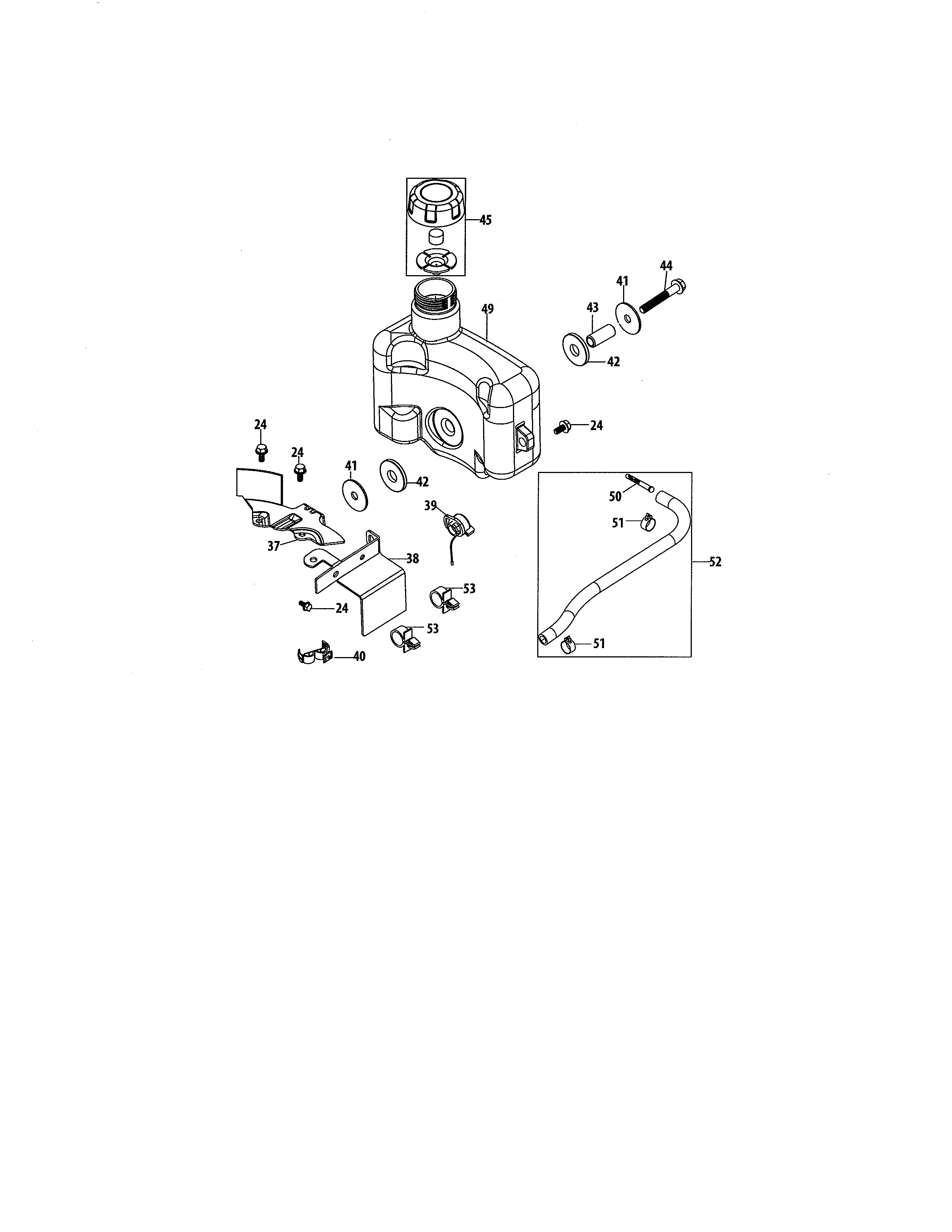

Fuel tank diagram

Lawn & garden equipment engine fuel filter

Part #951-10358A

Replaced by #951-12296A

?
Manufacturer substitution
This part replaces 951-10358A. Substitute parts can look different from the original.
BEST SELLER
$17.14
In Stock
Lawn & Garden Equipment Engine Carburetor Float Bowl Gasket 951-11349
#137

Carburetor diagram

Lawn & garden equipment engine carburetor float bowl gasket

Part #951-11349

Replaced by #951-11349A

?
Manufacturer substitution
This part replaces 951-11349. Substitute parts can look different from the original.
This item is not returnable
$5.64 |
15% OFF Phone Price : $6.64
In Stock
Kmart Lawn & Garden Equipment Engine Carburetor Insulator Gasket 951-11528
#141

Carburetor diagram

Kmart lawn & garden equipment engine carburetor insulator gasket

Part #951-11528

This item is not returnable
$6.86 |
13% OFF Phone Price : $7.86
In Stock
Lawn & Garden Equipment Engine Flywheel Key 951-10307
#78

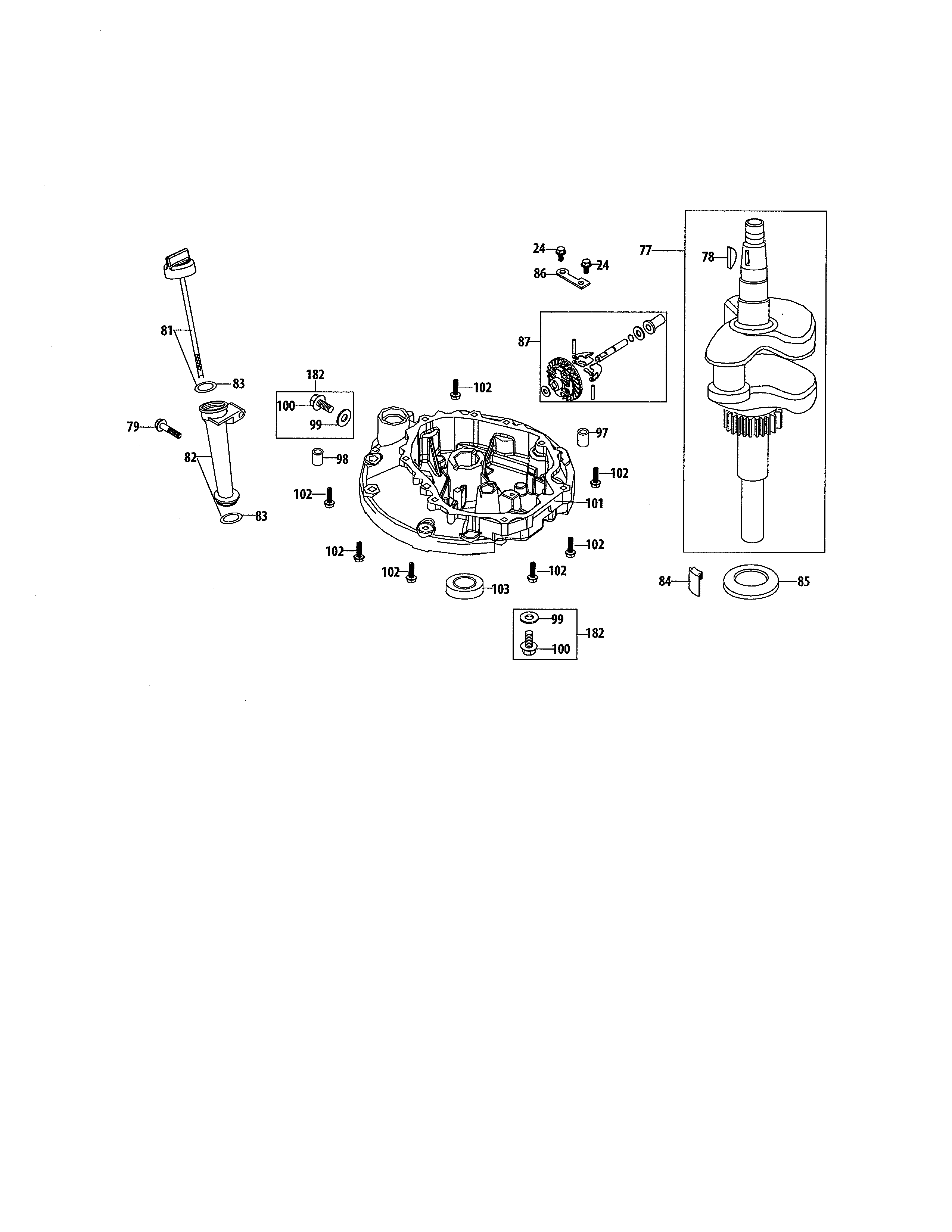

Crankshaft/crankcase cover diagram

Lawn & garden equipment engine flywheel key

Part #951-10307

Replaced by #751P10307A

?
Manufacturer substitution
This part replaces 951-10307. Substitute parts can look different from the original.
This item is not returnable
$3.22 |
24% OFF Phone Price : $4.22
In Stock
Lawn & Garden Equipment Muffler Mounting Stud 951-10342
#159A

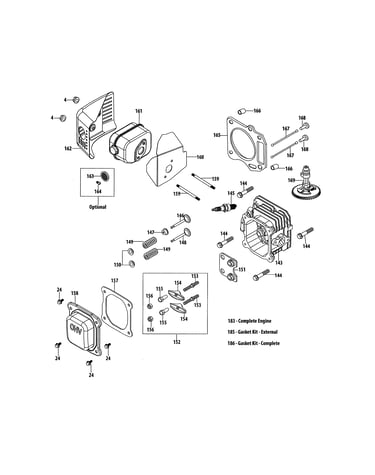

Cylinder head diagram

Lawn & garden equipment muffler mounting stud

Part #951-10342

This item is not returnable
$17.11
In Stock
Lawn & Garden Equipment Engine Rocker Arm Stud 710-04902
#153

Cylinder head diagram

Lawn & garden equipment engine rocker arm stud

Part #710-04902

This item is not returnable
$10.46 |
16% OFF Phone Price : $12.46
In Stock
Snowblower Fuel Line 951-11336
#52

Fuel tank diagram

Snowblower fuel line

Part #951-11336

$40.41 |
13% OFF Phone Price : $46.41
In Stock
