Model # WTW6600SW3 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WTW6600SW3 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

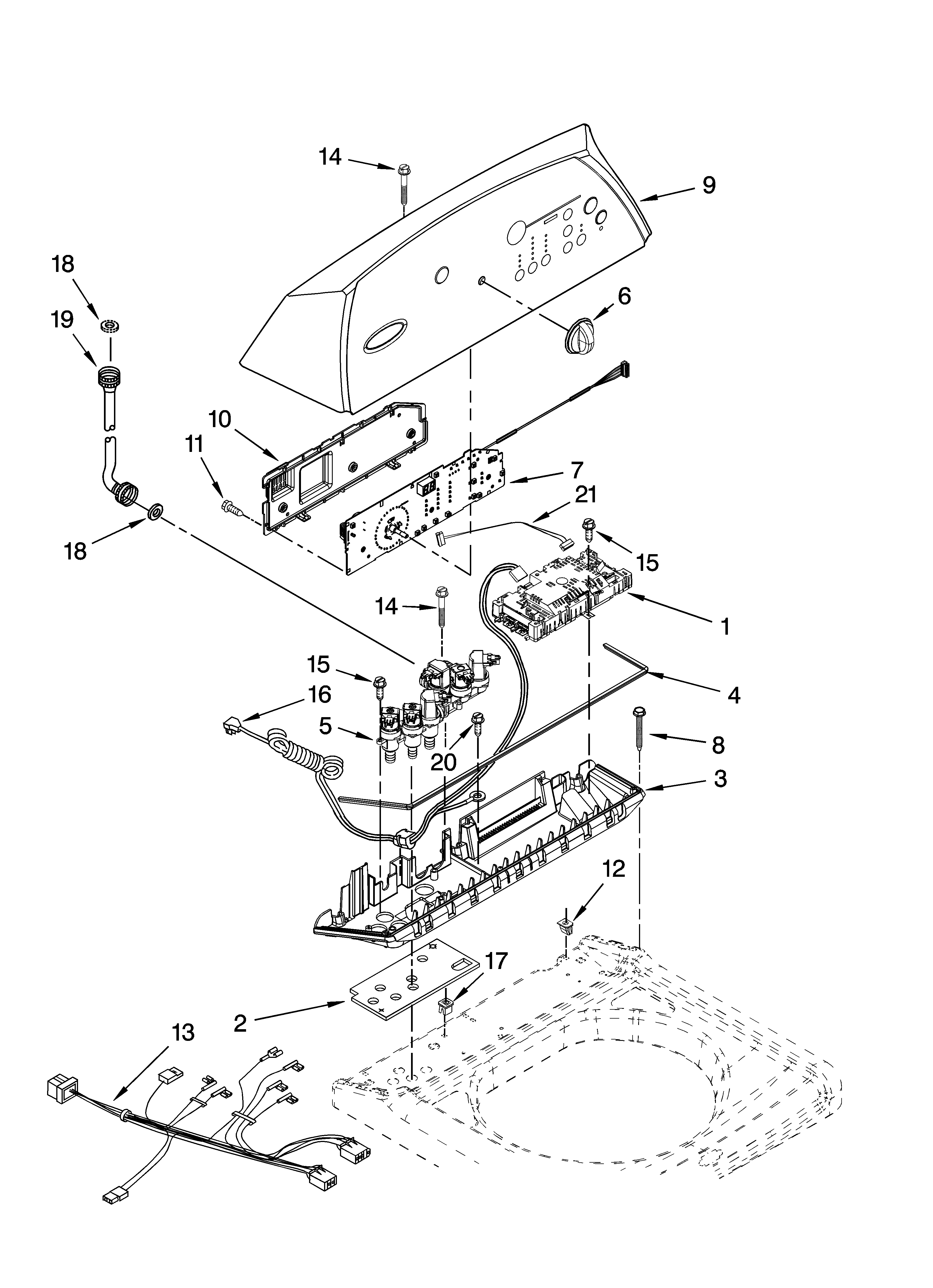

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Washer Tub Bearing And Drive Shaft Kit W10435302
#(NI)

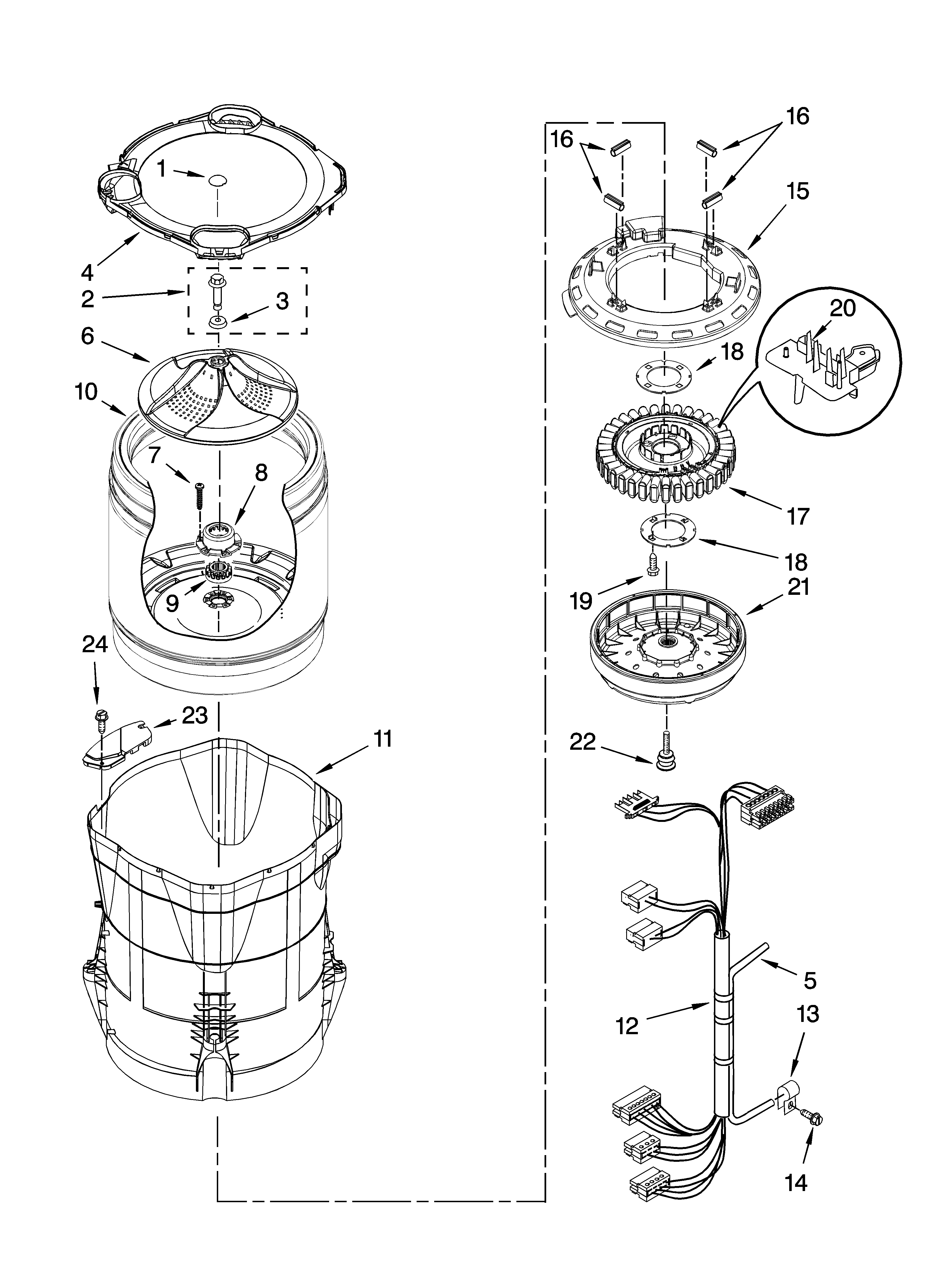

Motor, basket and tub parts diagram

Washer tub bearing and drive shaft kit

Part #W10435302

BEST SELLER
$102.06 |
11% OFF Phone Price : $114.06
In Stock
Hub W10118114
#8

Motor, basket and tub parts diagram

Hub

Part #W10118114

Replaced by #W10820039

?
Manufacturer substitution
This part replaces W10118114. Substitute parts can look different from the original.
BEST SELLER
$24.31 |
20% OFF Phone Price : $30.31
In Stock
Hub 8545953
#9

Motor, basket and tub parts diagram

Hub

Part #8545953

Replaced by #W10820039

?
Manufacturer substitution
This part replaces 8545953. Substitute parts can look different from the original.
BEST SELLER
$24.31 |
20% OFF Phone Price : $30.31
In Stock
Washer Suspension 8566146
#10

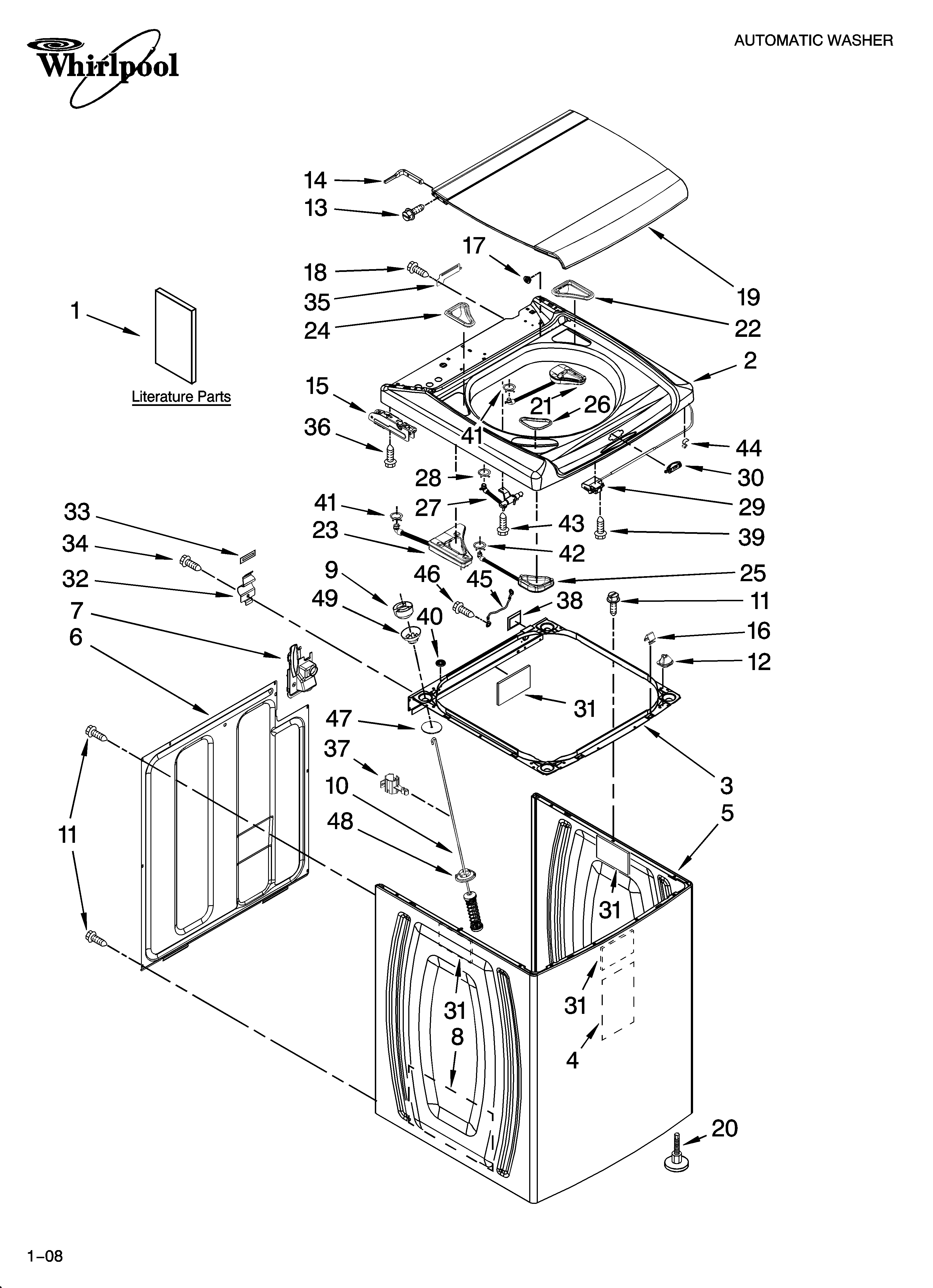

Top and cabinet parts diagram

Washer suspension

Part #8566146

Replaced by #W10820048

?
Manufacturer substitution
This part replaces 8566146. Substitute parts can look different from the original.
BEST SELLER
$60.88 |
9% OFF Phone Price : $66.88
In Stock
Pump-water W10049390
#1

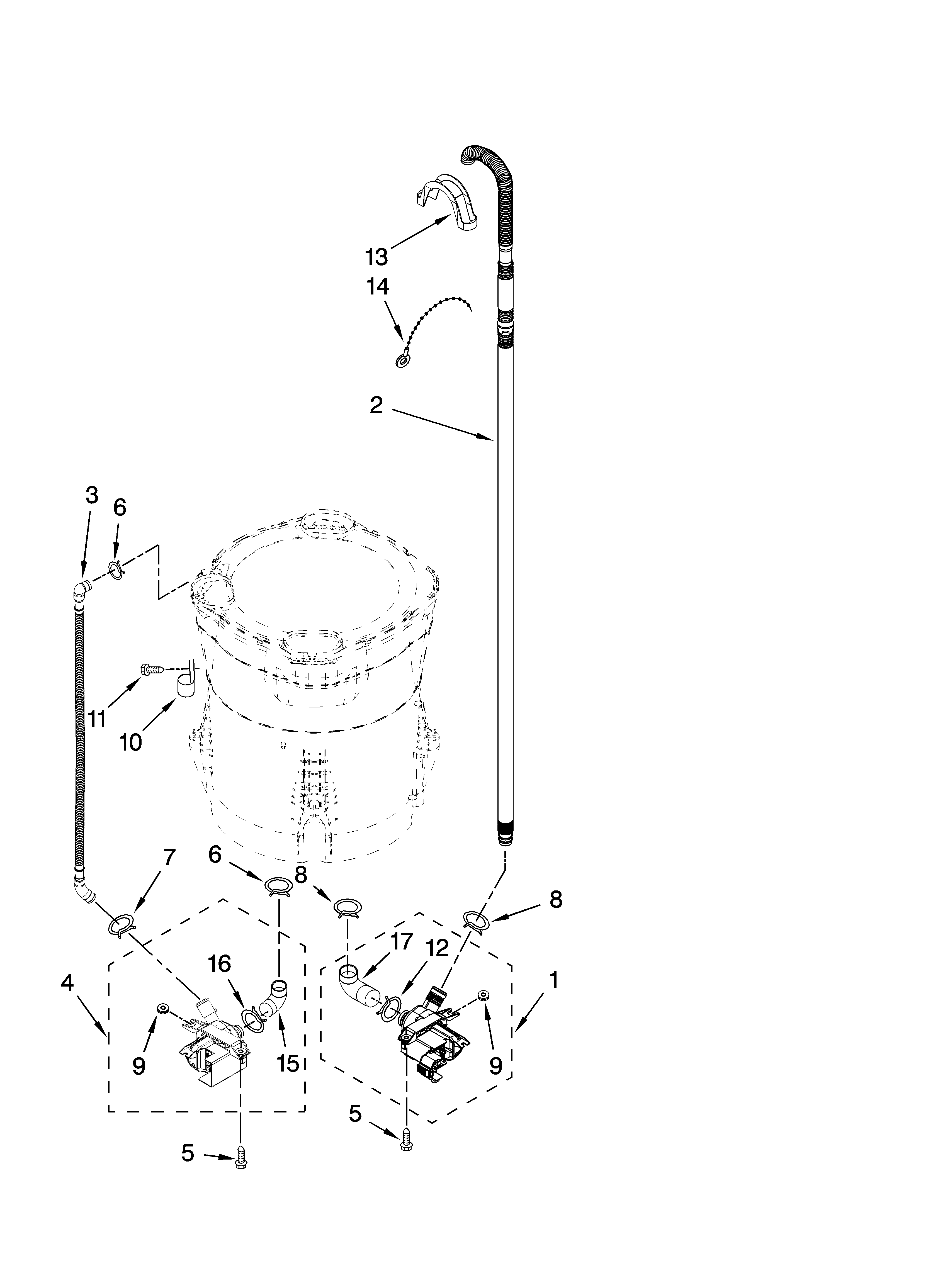

Pump parts, optional parts (not included) diagram

Pump-water

Part #W10049390

Replaced by #W10536347

?
Manufacturer substitution
This part replaces W10049390. Substitute parts can look different from the original.
BEST SELLER
$84.10 |
7% OFF Phone Price : $90.10
In Stock
Stator 8565170
#17

Motor, basket and tub parts diagram

Stator

Part #8565170

Replaced by #WPW10419333

?
Manufacturer substitution
This part replaces 8565170. Substitute parts can look different from the original.
BEST SELLER
$195.75 |
6% OFF Phone Price : $207.75
In Stock
Rotor 8565177
#21

Motor, basket and tub parts diagram

Rotor

Part #8565177

Replaced by #280146

?
Manufacturer substitution
This part replaces 8565177. Substitute parts can look different from the original.
BEST SELLER
$183.17 |
6% OFF Phone Price : $195.17
In Stock
Washer Screw 8533953
#7

Motor, basket and tub parts diagram

Washer screw

Part #8533953

Replaced by #WP8533953

?
Manufacturer substitution
This part replaces 8533953. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Lid Hinge 8563965
#14

Top and cabinet parts diagram

Washer lid hinge

Part #8563965

Replaced by #WP8563965

?
Manufacturer substitution
This part replaces 8563965. Substitute parts can look different from the original.
BEST SELLER
$17.29 |
10% OFF Phone Price : $19.29
In Stock
Sensor W10137685
#20

Motor, basket and tub parts diagram

Sensor

Part #W10137685

Replaced by #WPW10178988

?
Manufacturer substitution
This part replaces W10137685. Substitute parts can look different from the original.
BEST SELLER
$38.89 |
13% OFF Phone Price : $44.89
In Stock
