DeWalt
Drill/Driver

Model # DC845KA TYPE 1 Official DeWalt cordless drill/driver

Here are the diagrams and repair parts for Official DeWalt DC845KA-TYPE-1 cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Black & Decker Battry Cap 645221-00
#867

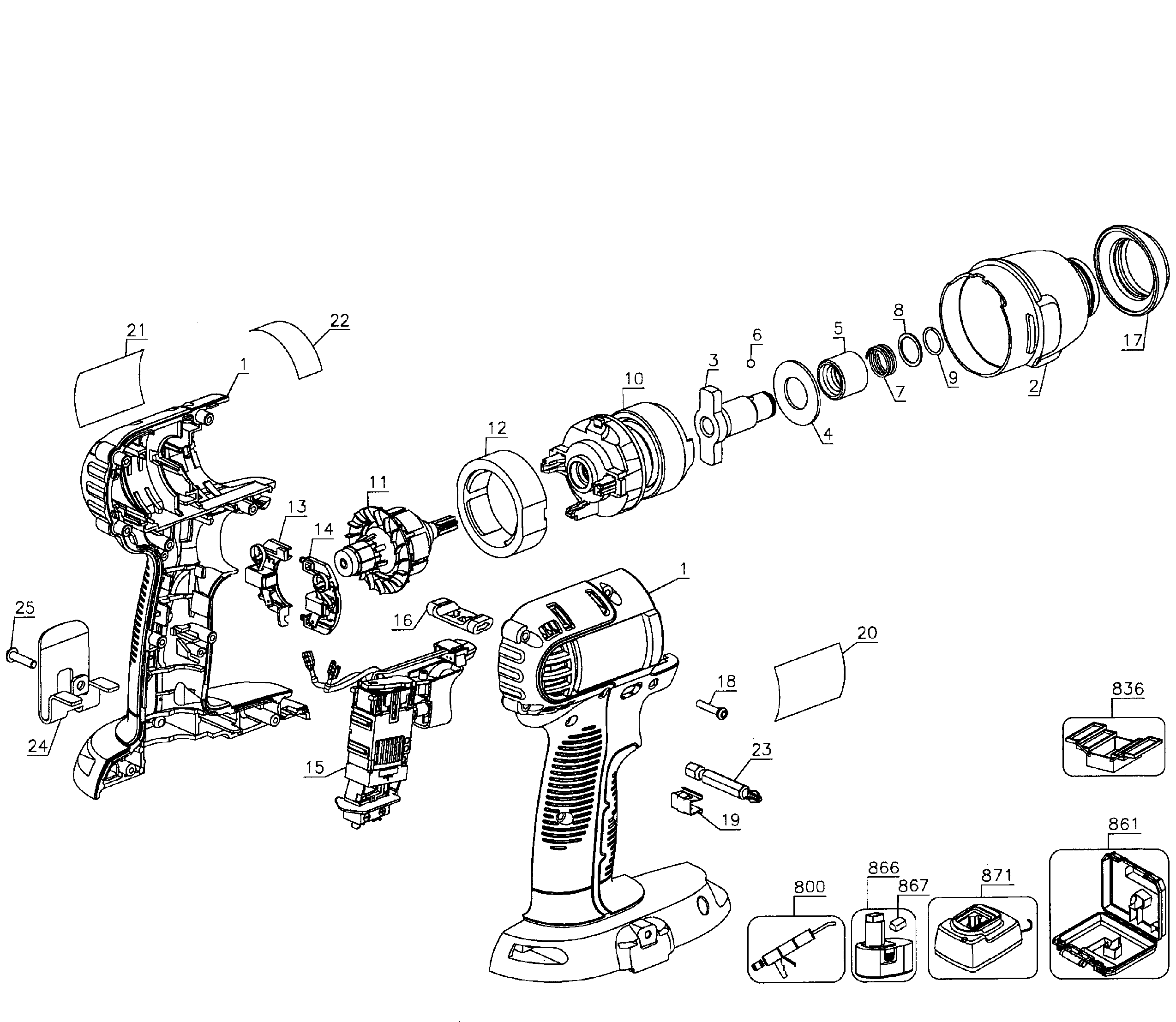

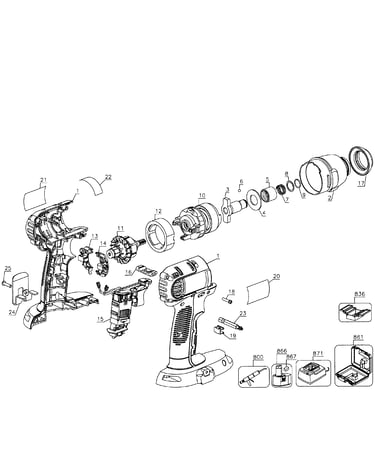

Drill cordless diagram

Black & decker battry cap

Part #645221-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Battery Charger 388683-12
#871

Drill cordless diagram

Drill battery charger

Part #388683-12

The manufacturer no longer makes this part, and there's no substitute part

Kit Box 652211-00
#861

Drill cordless diagram

Kit box

Part #652211-00

The manufacturer no longer makes this part, and there's no substitute part

Clamshell 658395-01
#1

Drill cordless diagram

Clamshell

Part #658395-01

The manufacturer no longer makes this part, and there's no substitute part

Mechanism N040122SV
#10

Drill cordless diagram

Mechanism

Part #N040122SV

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Clamshell 642887-01
#1A

Drill cordless diagram

Dewalt clamshell

Part #642887-01

The manufacturer no longer makes this part, and there's no substitute part

Lever Reve 642891-00
#16

Drill cordless diagram

Lever reve

Part #642891-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 151359-00
#7

Drill cordless diagram

Spring

Part #151359-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Bit Holder 148354-03
#19

Drill cordless diagram

Drill bit holder

Part #148354-03

The manufacturer no longer makes this part, and there's no substitute part

Bit Scrdri 607906-22
#23

Drill cordless diagram

Bit scrdri

Part #607906-22

The manufacturer no longer makes this part, and there's no substitute part
