Panasonic
VHS Players & VCRs

Model # PV-9450 Official Panasonic videocassette recorder

Here are the diagrams and repair parts for Official Panasonic PV-9450 videocassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Capstan Ro VXPS0382K2
#NI

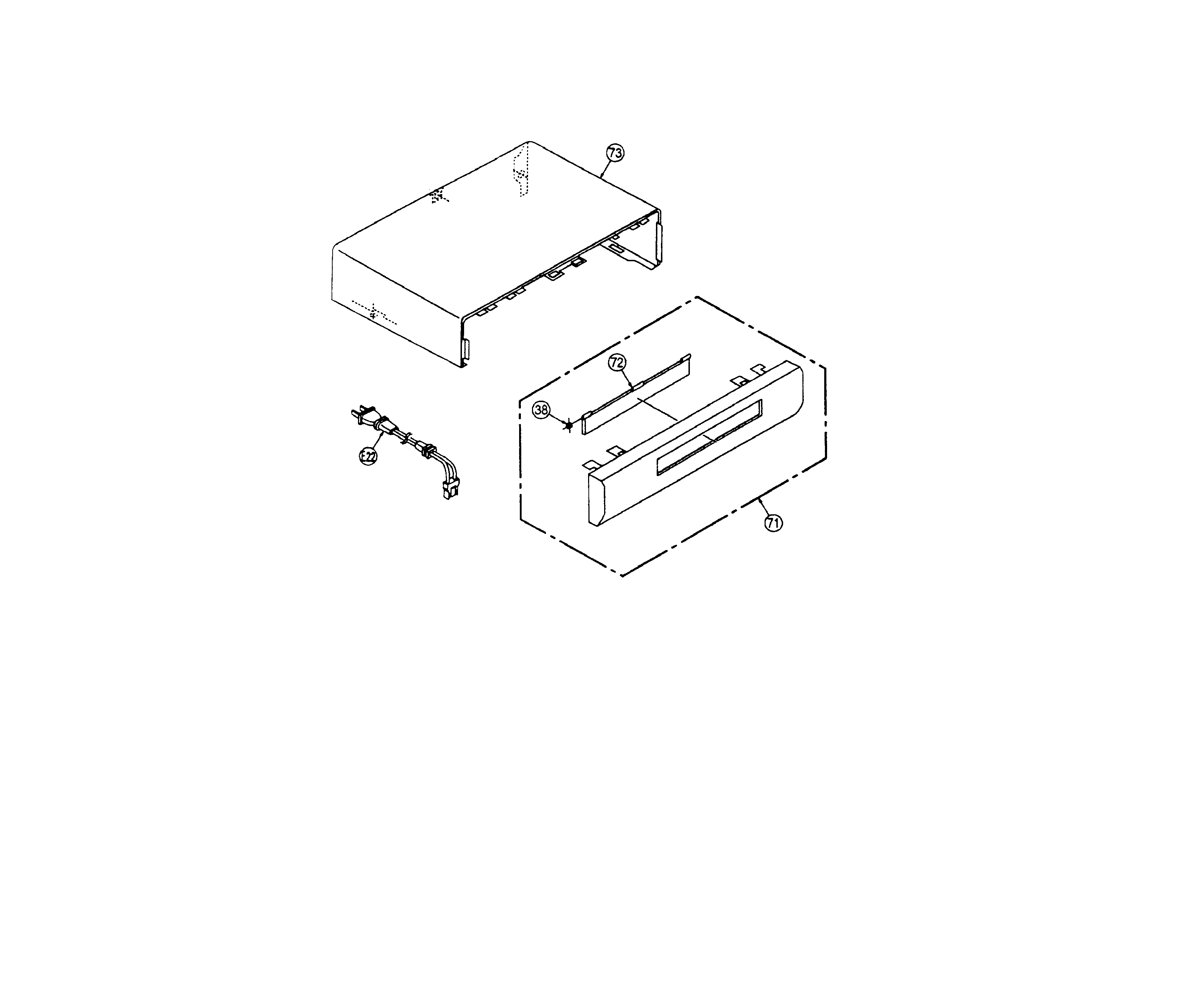

Cabinet parts diagram

Capstan ro

Part #VXPS0382K2

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord VJAS0203
#1

Cabinet parts diagram

Ac cord

Part #VJAS0203

The manufacturer no longer makes this part, and there's no substitute part

Service Manual SM-PVQ920
#NI

Cabinet parts diagram

Service manual

Part #SM-PVQ920

The manufacturer no longer makes this part, and there's no substitute part

Panel VYPS6984
#3

Cabinet parts diagram

Panel

Part #VYPS6984

The manufacturer no longer makes this part, and there's no substitute part

Capstan St VEMS0316K2
#NI

Cabinet parts diagram

Capstan st

Part #VEMS0316K2

The manufacturer no longer makes this part, and there's no substitute part

Remote VSQS1596
#NI

Cabinet parts diagram

Remote

Part #VSQS1596

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly VEPS5019A
#NI

Cabinet parts diagram

Pcb assembly

Part #VEPS5019A

The manufacturer no longer makes this part, and there's no substitute part

Spring VMBS1161
#2

Cabinet parts diagram

Spring

Part #VMBS1161

The manufacturer no longer makes this part, and there's no substitute part

Cassette Door VGPS4258
#4

Cabinet parts diagram

Cassette door

Part #VGPS4258

The manufacturer no longer makes this part, and there's no substitute part

Main Circuit Board Assembly VEPS6050HA
#NI

Cabinet parts diagram

Main circuit board assembly

Part #VEPS6050HA

The manufacturer no longer makes this part, and there's no substitute part
