Model # MG3090XBQ0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MG3090XBQ0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Magnetron 4375072
#4

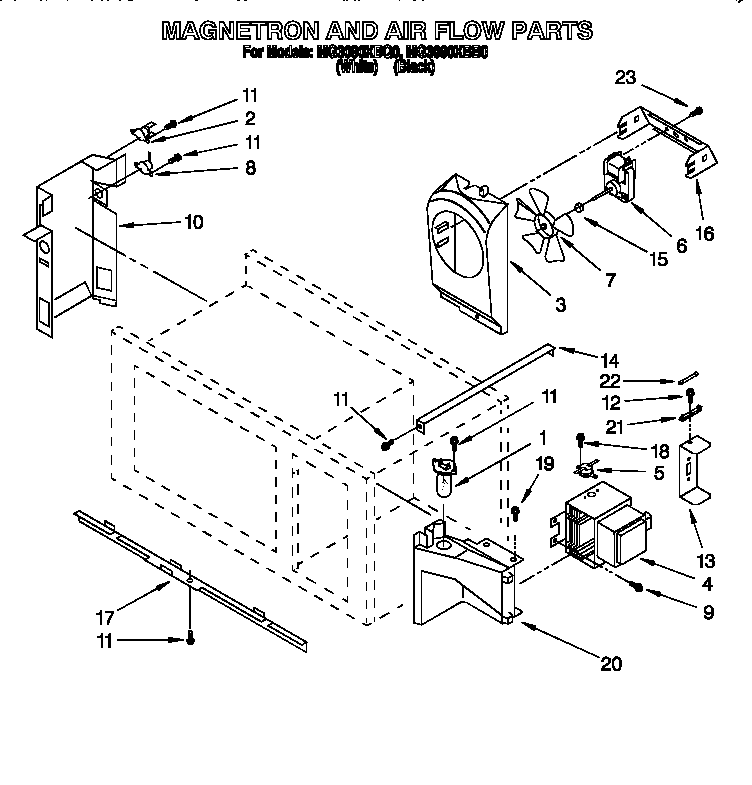

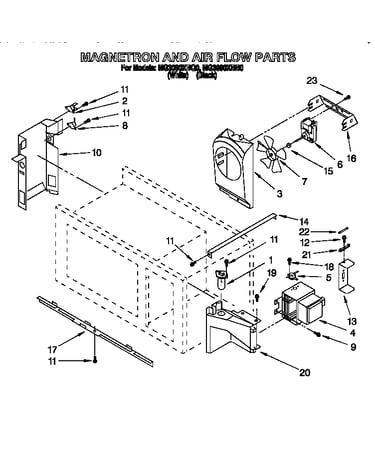

Magnetron and air flow diagram

Magnetron

Part #4375072

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Capacitor 4375020
#4

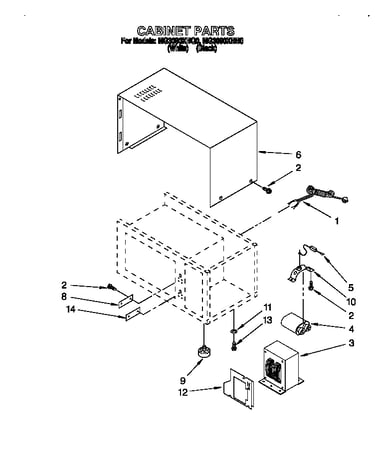

Cabinet diagram

Microwave high-voltage capacitor

Part #4375020

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375020. Substitute parts can look different from the original.
BEST SELLER
$108.39 |
10% OFF Phone Price : $120.39
In Stock
Crisper Pan 4375191
#2

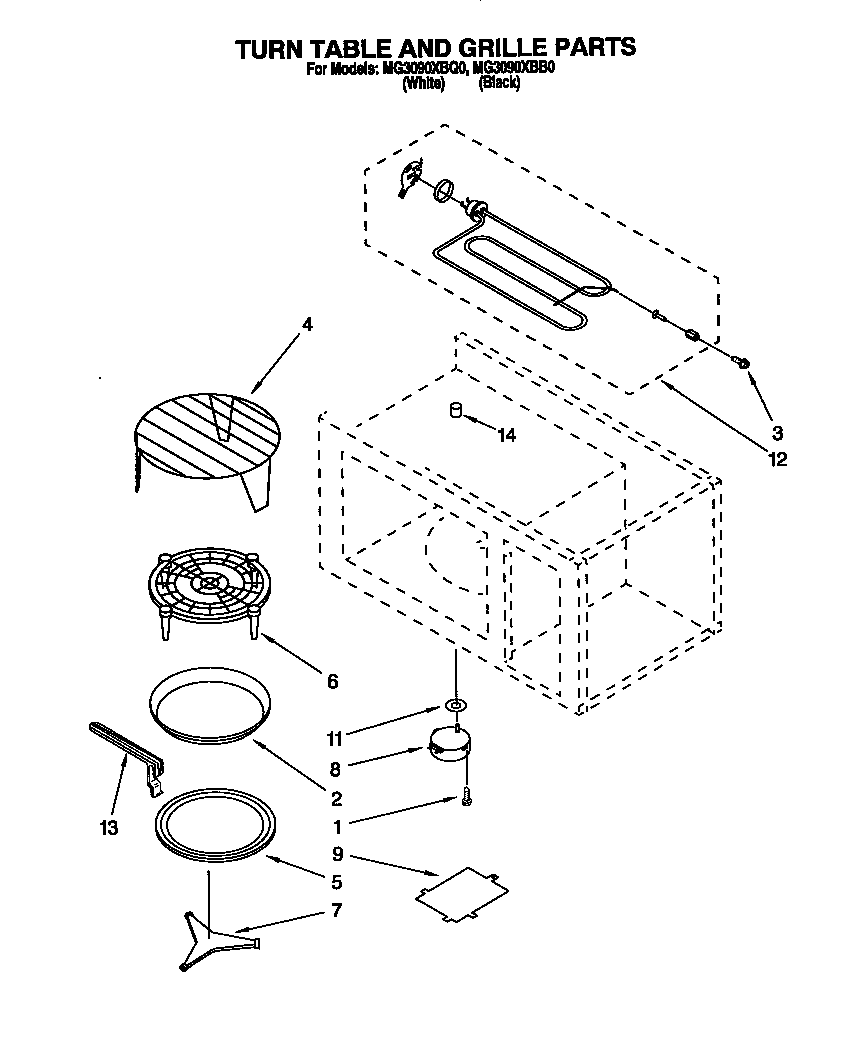

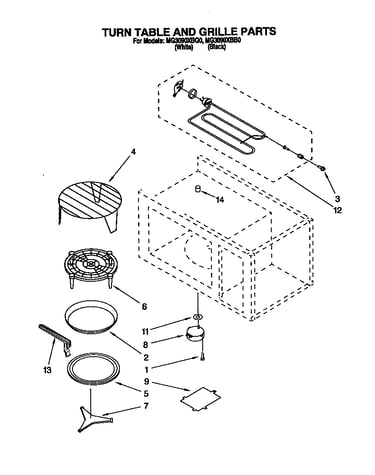

Turn table and grille diagram

Crisper pan

Part #4375191

Replaced by #WPW10120480

?
Manufacturer substitution
This part replaces 4375191. Substitute parts can look different from the original.
$55.04 |
10% OFF Phone Price : $61.04
In Stock
Screw 4375035
Screw

Part #4375035

Replaced by #8206180

?
Manufacturer substitution
This part replaces 4375035. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Microwave Magnetron Thermostat 4375079
#5

Magnetron and air flow diagram

Microwave magnetron thermostat

Part #4375079

Replaced by #WP4375079

?
Manufacturer substitution
This part replaces 4375079. Substitute parts can look different from the original.
$35.31 |
15% OFF Phone Price : $41.31
In Stock
Pan Handle 4378400
#13

Turn table and grille diagram

Pan handle

Part #4378400

Replaced by #W10851464

?
Manufacturer substitution
This part replaces 4378400. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Switch 4375074
#6

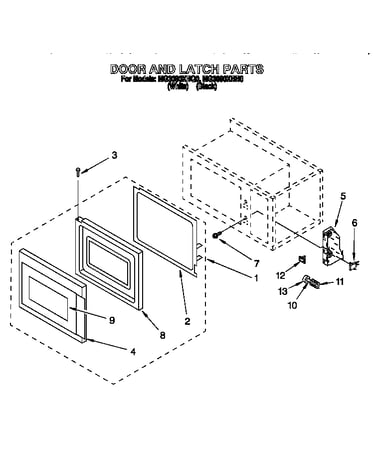

Door and latch diagram

Switch

Part #4375074

The manufacturer no longer makes this part, and there's no substitute part

Lever Switch 4375188
#5

Door and latch diagram

Lever switch

Part #4375188

The manufacturer no longer makes this part, and there's no substitute part

Element 4375081
#12

Turn table and grille diagram

Element

Part #4375081

The manufacturer no longer makes this part, and there's no substitute part

Mag Bracket 4375041
#13

Magnetron and air flow diagram

Mag bracket

Part #4375041

The manufacturer no longer makes this part, and there's no substitute part
