Model # 810T Official Horizon treadmill

Here are the diagrams and repair parts for Official Horizon 810T treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Bottle Set MF0821002A
#KIT

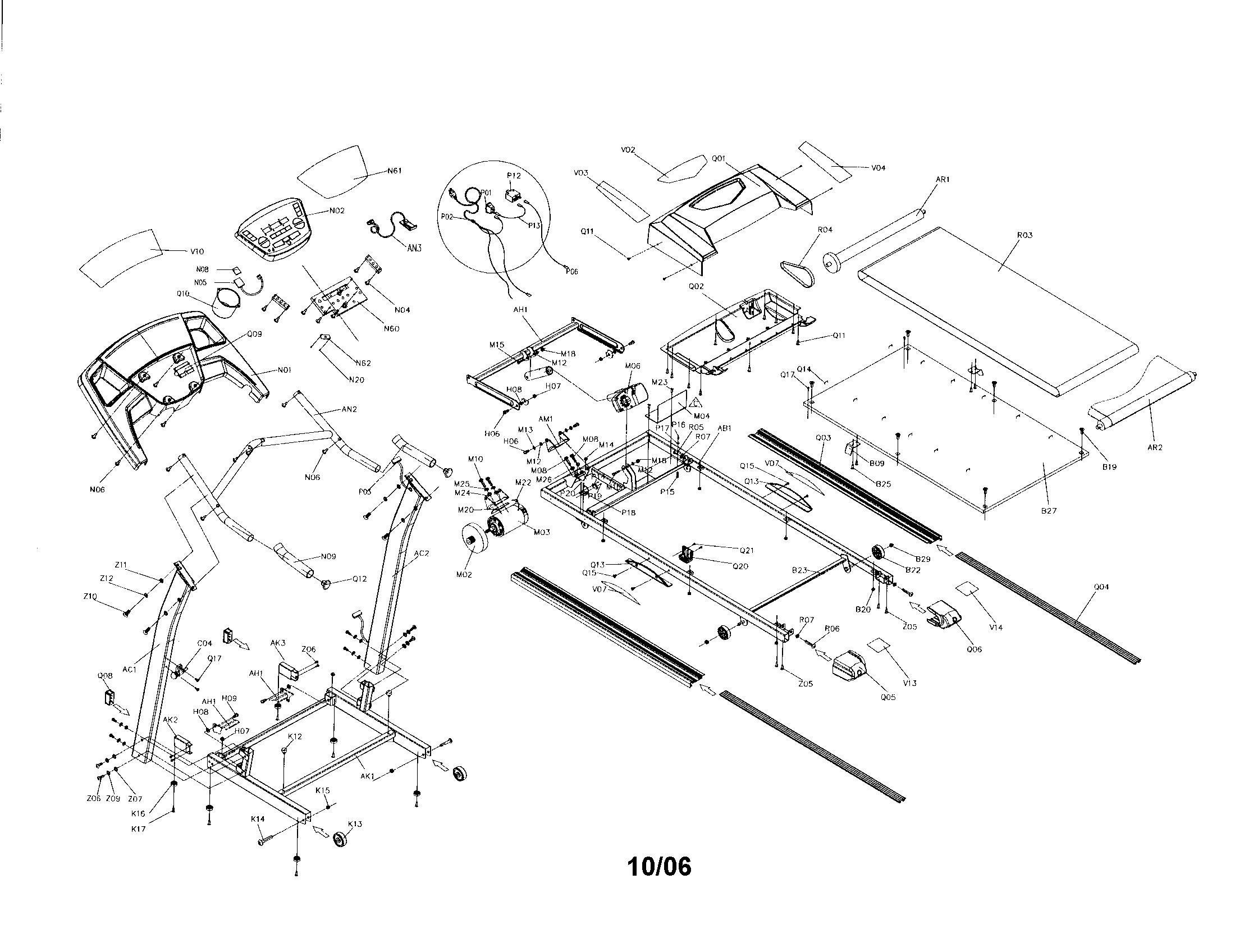

Treadmill diagram

Bottle set

Part #MF0821002A

Replaced by #1000092805

?
Manufacturer substitution
This part replaces MF0821002A. Substitute parts can look different from the original.
This item is not returnable
$16.01 |
11% OFF Phone Price : $18.01
In Stock
Screw ME0104085
#R06

Treadmill diagram

Screw

Part #ME0104085

Replaced by #004488-00

?
Manufacturer substitution
This part replaces ME0104085. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Breaker MC0702011
#P12

Treadmill diagram

Breaker

Part #MC0702011

Replaced by #003346-00

?
Manufacturer substitution
This part replaces MC0702011. Substitute parts can look different from the original.
$14.80
In Stock
Screw MZE0104074
#M08

Treadmill diagram

Screw

Part #MZE0104074

Replaced by #004481-Z

?
Manufacturer substitution
This part replaces MZE0104074. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw MZE0107023
Screw

Part #MZE0107023

Replaced by #004620-00

?
Manufacturer substitution
This part replaces MZE0107023. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Washer ME0505023
#H08

Treadmill diagram

Washer

Part #ME0505023

Replaced by #005189-00

?
Manufacturer substitution
This part replaces ME0505023. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Fix Plate MJ1040005C
#P18

Treadmill diagram

Fix plate

Part #MJ1040005C

Replaced by #007490-C

?
Manufacturer substitution
This part replaces MJ1040005C. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Nylon Nut ME0204025
Nylon nut

Part #ME0204025

Replaced by #004941-00

?
Manufacturer substitution
This part replaces ME0204025. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
T-wrench MZE1002003
#KIT

Treadmill diagram

T-wrench

Part #MZE1002003

Replaced by #005393-00

?
Manufacturer substitution
This part replaces MZE1002003. Substitute parts can look different from the original.
$8.50
In Stock
Core MC0704005
#M22

Treadmill diagram

Core

Part #MC0704005

Replaced by #003386-A

?
Manufacturer substitution
This part replaces MC0704005. Substitute parts can look different from the original.
$12.13
In Stock
