Model # YMMMF8030PZ00 Official Maytag built-in microwave

Here are the diagrams and repair parts for Official Maytag YMMMF8030PZ00 built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

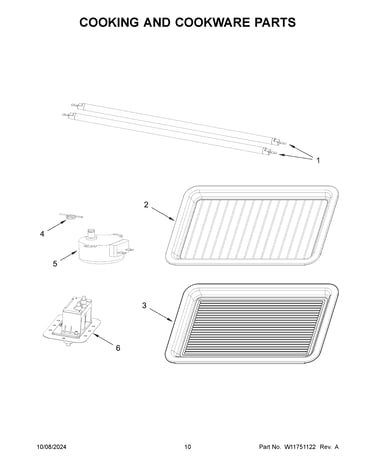

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Microwave High-voltage Capacitor 8206562
#2

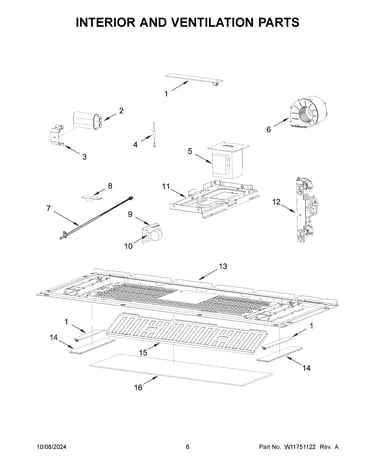

Interior and ventilation parts diagram

Microwave high-voltage capacitor

Part #8206562

$89.44 |
6% OFF Phone Price : $95.44
In Stock
Microwave Vent Damper W10748710
#2

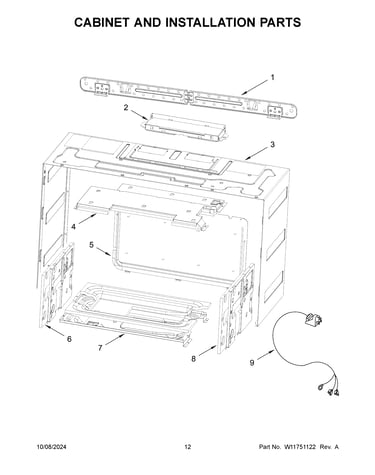

Cabinet and installation parts diagram

Microwave vent damper

Part #W10748710

Replaced by #W10843943

?
Manufacturer substitution
This part replaces W10748710. Substitute parts can look different from the original.
$57.22 |
9% OFF Phone Price : $63.22
In Stock
Door, Venting (stainless) W11662351
#2

Door and vent door parts diagram

Door, venting (stainless)

Part #W11662351

$52.11
In Stock
Sensor W10557536
#2

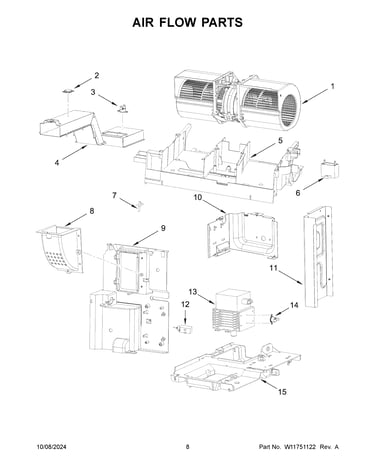

Air flow parts diagram

Sensor

Part #W10557536

$52.49 |
10% OFF Phone Price : $58.49
In Stock
Chassis_hvt_ W11586579
#11

Interior and ventilation parts diagram

Chassis_hvt_

Part #W11586579

$28.73
In Stock
Chs_outer_wr W11593183
#3

Cabinet and installation parts diagram

Chs_outer_wr

Part #W11593183

$107.96
In Stock
Console Assy W11744019
#3

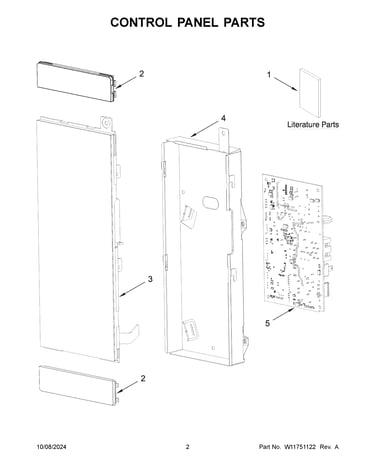

Control panel parts diagram

Console assy

Part #W11744019

$41.96
In Stock
Capacitor Bracket W11095808
#3

Interior and ventilation parts diagram

Capacitor bracket

Part #W11095808

$31.40
In Stock
Bump_out_mou W11630300
#NI

Cabinet and installation parts diagram

Bump_out_mou

Part #W11630300

$24.07
In Stock
Chassis_hood W11586584
#10

Air flow parts diagram

Chassis_hood

Part #W11586584

$31.93
In Stock
