Sharp
Countertop Microwave

Model # R-370EZ Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-370EZ microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

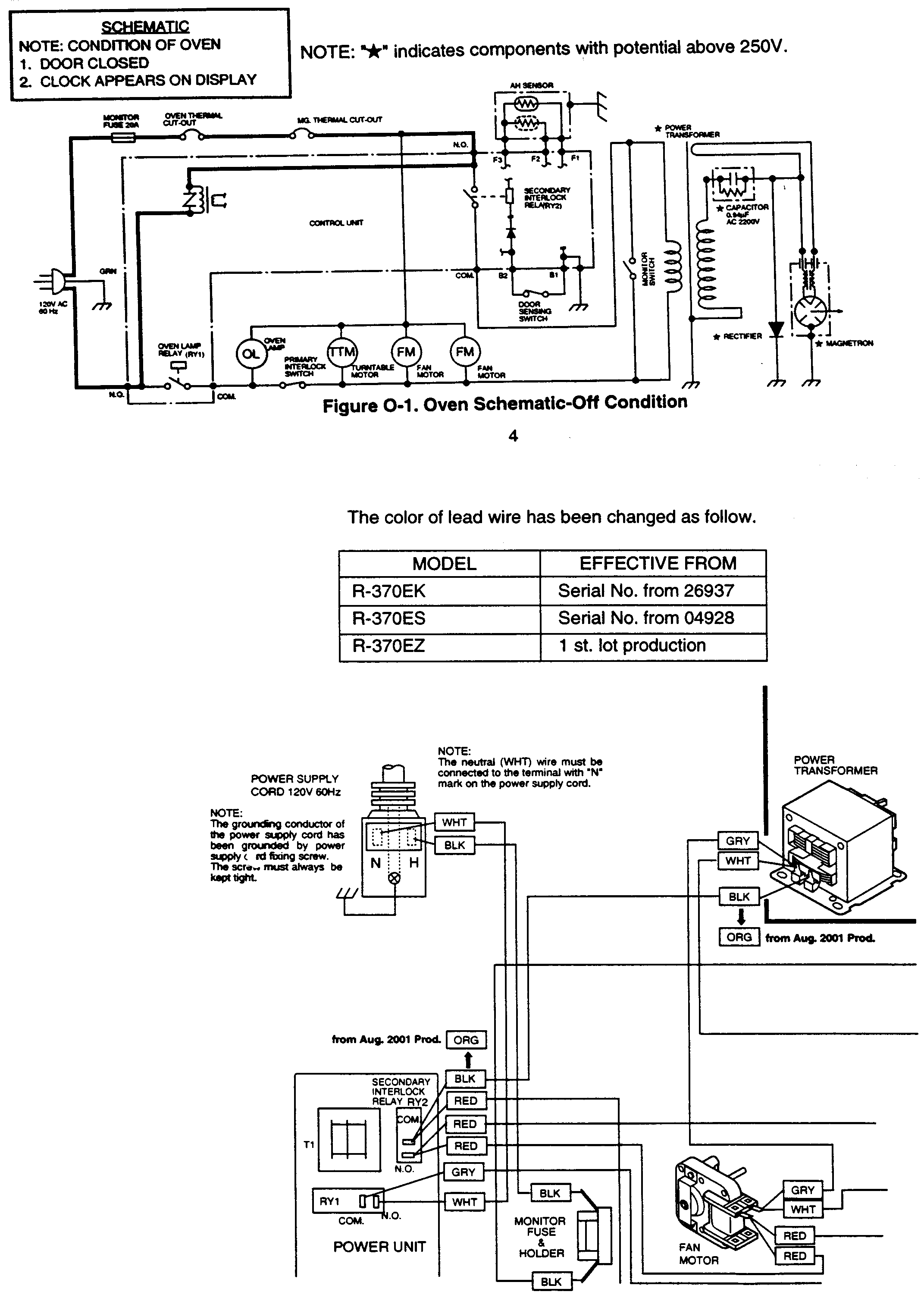

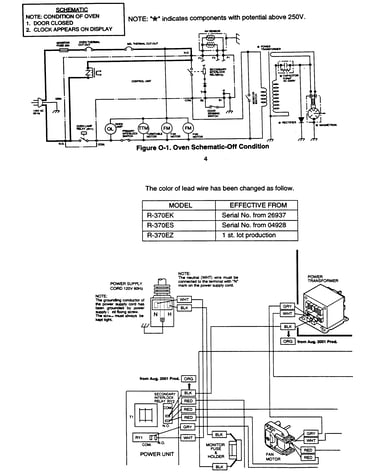

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Magnetron RV-MZA288WRE0
#1-10

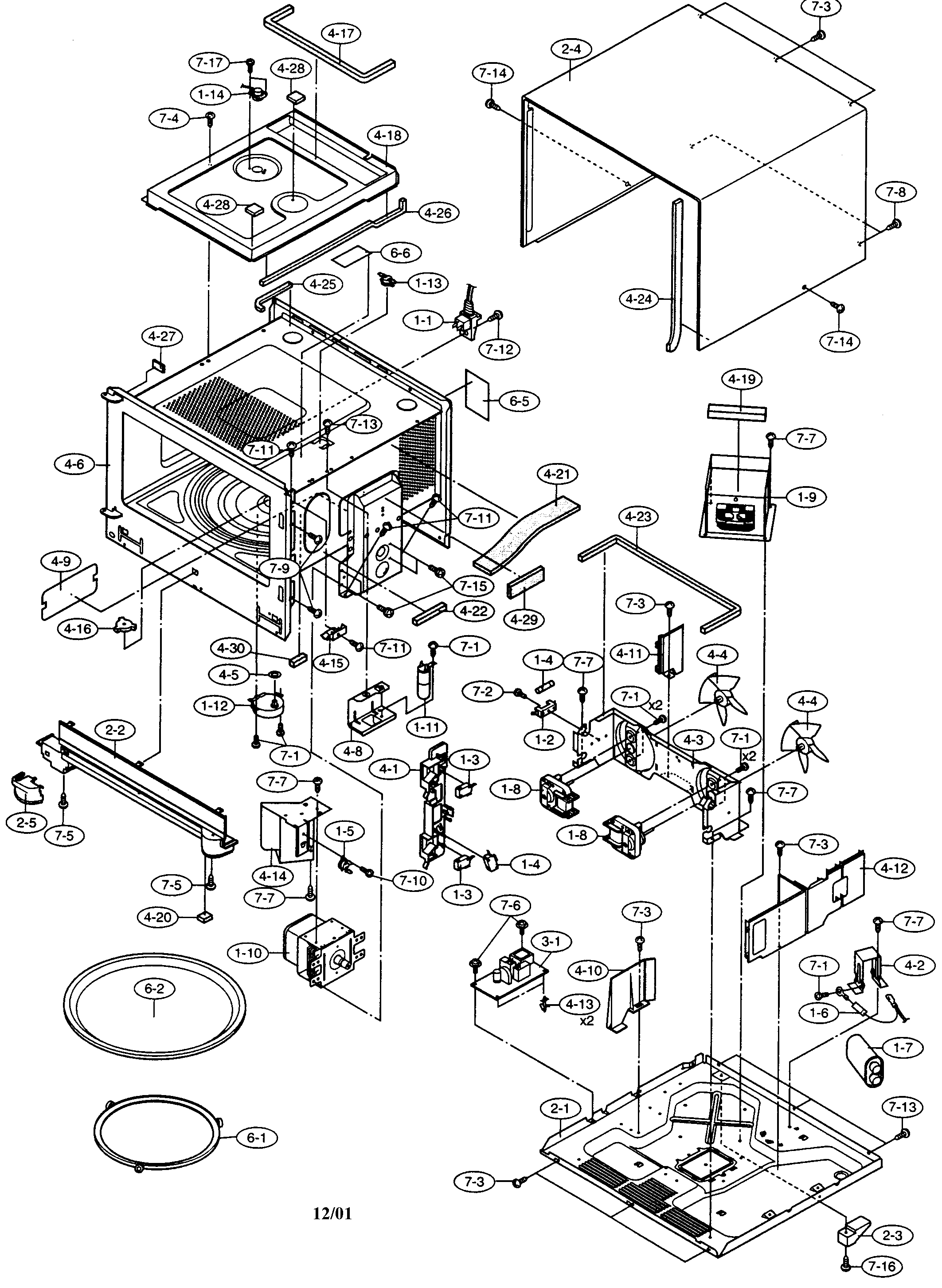

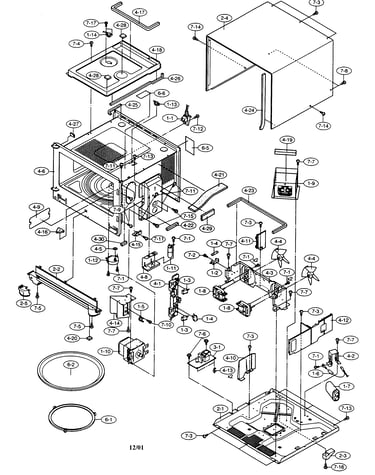

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA288WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ
#1-11

Oven/cabinet parts diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Rectifier FH-DZA100WRKZ
#1-6

Oven/cabinet parts diagram

Rectifier

Part #FH-DZA100WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA137WRE0
#1-3

Oven/cabinet parts diagram

Switch

Part #QSW-MA137WRE0

The manufacturer no longer makes this part, and there's no substitute part

Film PSHEPA775WREZ
#5-2

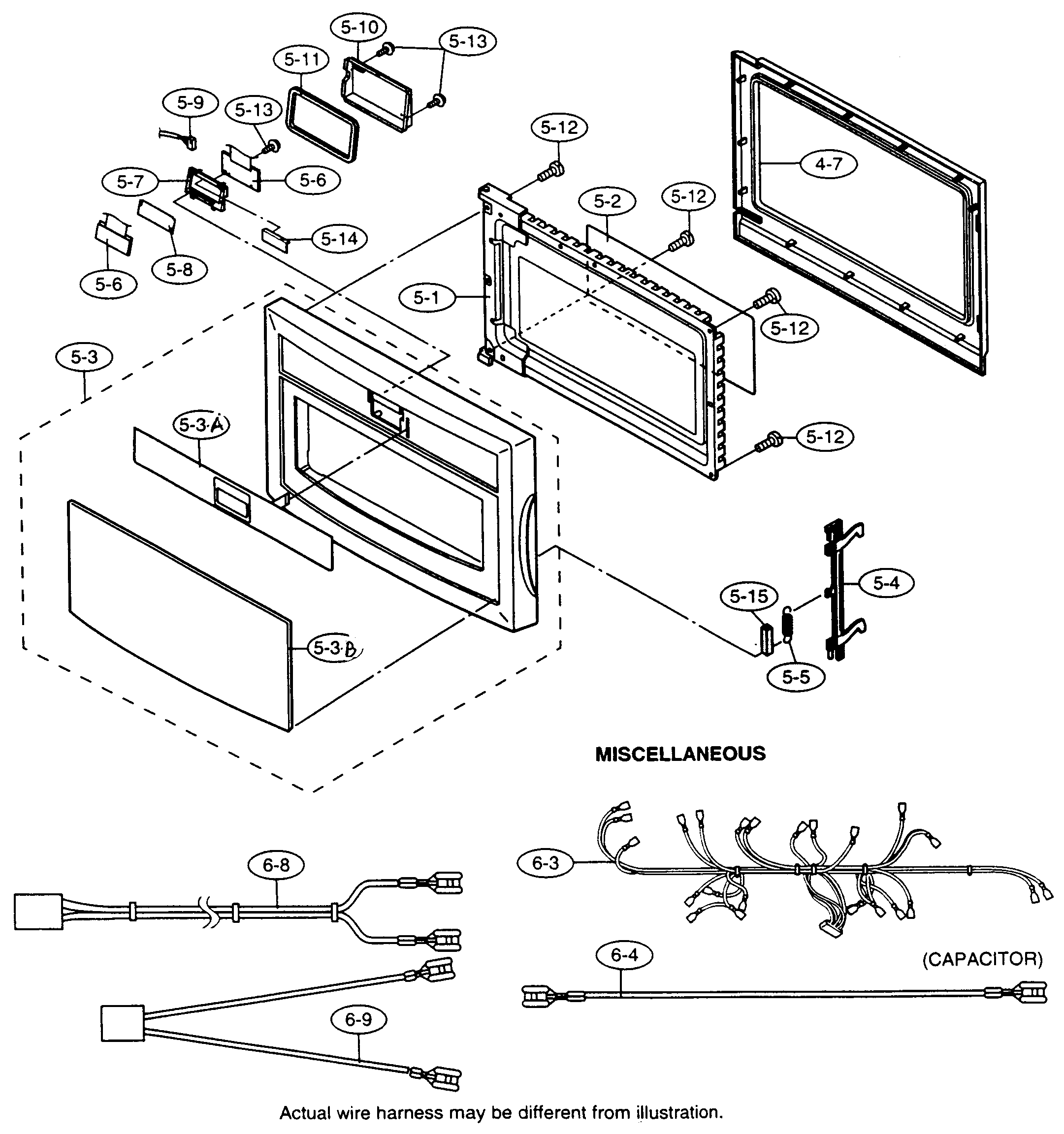

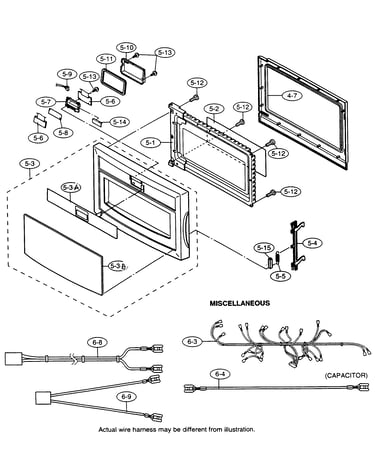

Door/miscellaneous parts diagram

Film

Part #PSHEPA775WREZ

The manufacturer no longer makes this part, and there's no substitute part

Power Control Board Assembly DPWBFC176WRKZ
#5-6

Door/miscellaneous parts diagram

Power control board assembly

Part #DPWBFC176WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Coupling PPACGA084WRF0
#4-5

Oven/cabinet parts diagram

Coupling

Part #PPACGA084WRF0

The manufacturer no longer makes this part, and there's no substitute part

Screw XOTSD40P08000
#7-3

Oven/cabinet parts diagram

Screw

Part #XOTSD40P08000

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA070WRE0
#7-8

Oven/cabinet parts diagram

Screw

Part #LX-CZA070WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor 507453
#1-12

Oven/cabinet parts diagram

Microwave turntable motor

Part #507453

The manufacturer no longer makes this part, and there's no substitute part
