Model # 867733663 Official Kenmore gas-fired forced air dual wall furnace

Here are the diagrams and repair parts for Official Kenmore 867733663 gas-fired forced air dual wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Gas Valve 505266
#29A

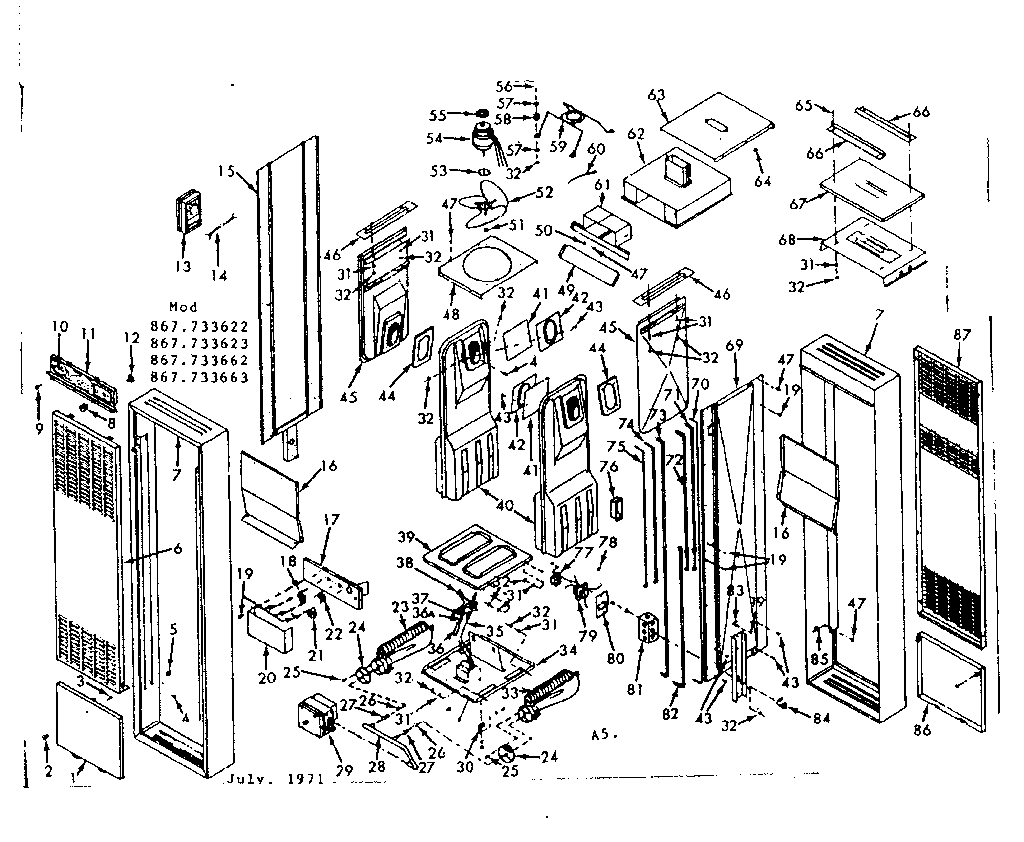

Unit parts diagram

Gas valve

Part #505266

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 505266. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
Gas Valve 505267
#29C

Unit parts diagram

Gas valve

Part #505267

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 505267. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
Gas Valve 49295
#29B

Unit parts diagram

Gas valve

Part #49295

The manufacturer no longer makes this part, and there's no substitute part

Ferrule Nut 29441
#36A

Unit parts diagram

Ferrule nut

Part #29441

Replaced by #100108370

?
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
$36.67
In Stock
Transformer 86852
#79

Unit parts diagram

Transformer

Part #86852

Replaced by #90-4031F

?
Manufacturer substitution
This part replaces 86852. Substitute parts can look different from the original.
$10.99
In Stock
Thermostat 504871
#13

Unit parts diagram

Thermostat

Part #504871

The manufacturer no longer makes this part, and there's no substitute part

Pilot Tubing 87740
#36

Unit parts diagram

Pilot tubing

Part #87740

Replaced by #100108370

?
Manufacturer substitution
This part replaces 87740. Substitute parts can look different from the original.
$36.67
In Stock
Thermocouple 503076
#35

Unit parts diagram

Thermocouple

Part #503076

The manufacturer no longer makes this part, and there's no substitute part

Switch 502171
#21

Unit parts diagram

Switch

Part #502171

Replaced by #505962

?
Manufacturer substitution
This part replaces 502171. Substitute parts can look different from the original.
$119.46
In Stock
Connector 20357
#78

Unit parts diagram

Connector

Part #20357

Replaced by #STD375005

?
Manufacturer substitution
This part replaces 20357. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
