Nordyne
Central Air Conditioner

Model # 060P3RA Official Nordyne air conditioner

Here are the diagrams and repair parts for Official Nordyne 060P3RA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

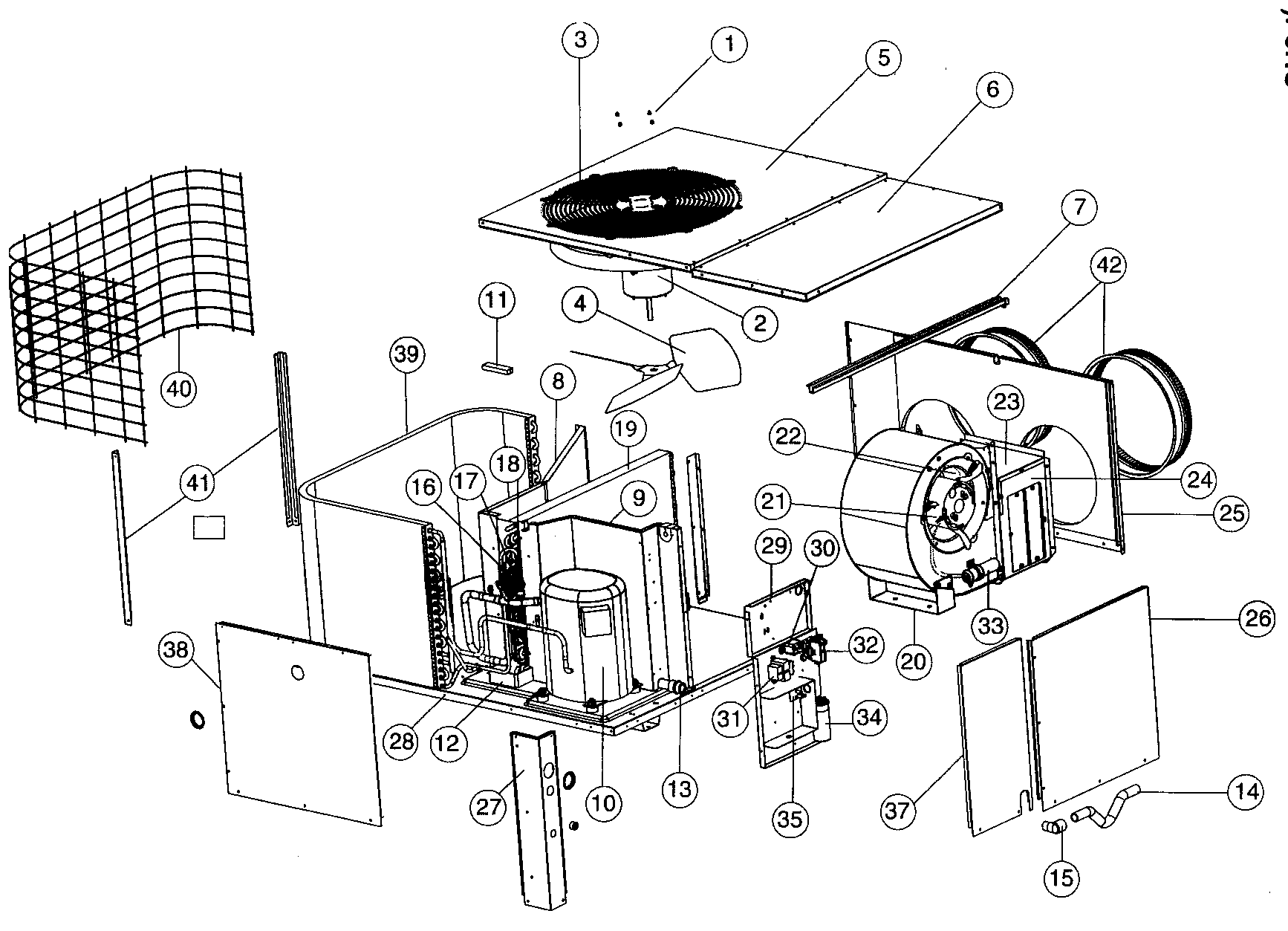

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Air Conditioner Blower Relay 621869
#30

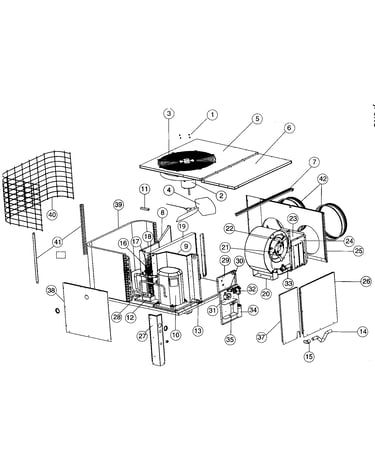

Air conditioner diagram

Air conditioner blower relay

Part #621869

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 621721
#2

Air conditioner diagram

Fan motor

Part #621721

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 667278
#4

Air conditioner diagram

Fan blade

Part #667278

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 621940
#20

Air conditioner diagram

Fan motor

Part #621940

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 669187
#12

Air conditioner diagram

Drain pan

Part #669187

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Relay 621931
#30A

Air conditioner diagram

Air conditioner blower relay

Part #621931

The manufacturer no longer makes this part, and there's no substitute part

Time Delay 621586
#35

Air conditioner diagram

Time delay

Part #621586

The manufacturer no longer makes this part, and there's no substitute part

Connector 663394
#18

Air conditioner diagram

Connector

Part #663394

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 621500
#33A

Air conditioner diagram

Capacitor

Part #621500

The manufacturer no longer makes this part, and there's no substitute part

Transformer 621708
#31

Air conditioner diagram

Transformer

Part #621708

The manufacturer no longer makes this part, and there's no substitute part
