Kenmore
Electric Water Heater

Model # 153316232 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153316232 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Water Heater Water Line Connector (replaces 9003719) 9000322
#6

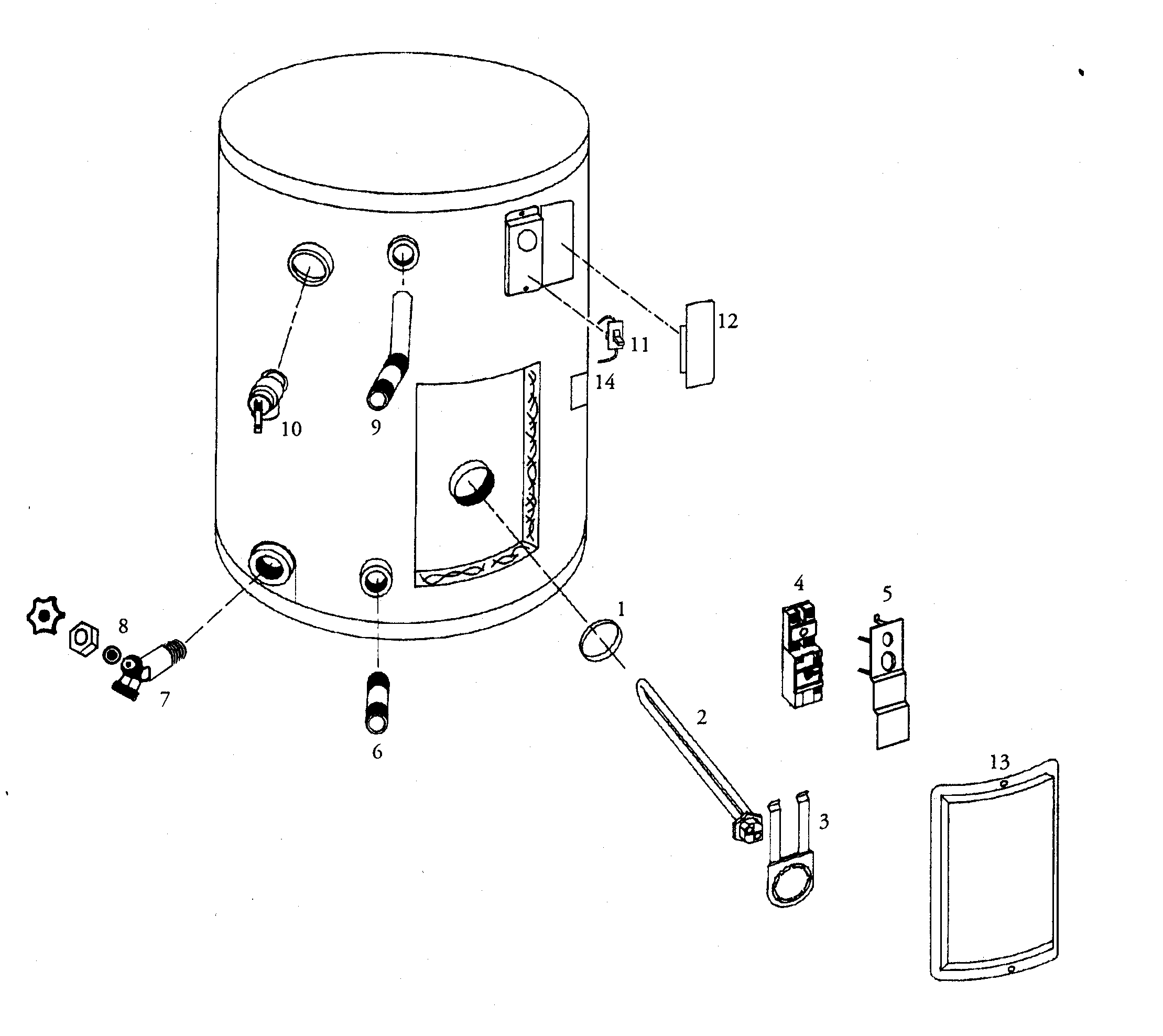

Water heater diagram

Water heater water line connector (replaces 9003719)

Part #9000322

Replaced by #100108382

?
Manufacturer substitution
This part replaces 9000322. Substitute parts can look different from the original.
$17.14
In Stock
Box Cover 9001327
#12

Water heater diagram

Box cover

Part #9001327

Replaced by #100108548

?
Manufacturer substitution
This part replaces 9001327. Substitute parts can look different from the original.
$26.67
In Stock
Elm 1650/120 9000139
#2

Water heater diagram

Elm 1650/120

Part #9000139

Replaced by #100108358

?
Manufacturer substitution
This part replaces 9000139. Substitute parts can look different from the original.
$31.11
In Stock
Water Heater Thermostat Bracket (replaces 0110238, 0110238-01, 0110322, 9000309015) 9000309
#3

Water heater diagram

Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)

Part #9000309

Replaced by #100108380

?
Manufacturer substitution
This part replaces 9000309. Substitute parts can look different from the original.
$27.78
In Stock
Nipple 9001494
#9

Water heater diagram

Nipple

Part #9001494

Replaced by #100108578

?
Manufacturer substitution
This part replaces 9001494. Substitute parts can look different from the original.
$33.33
In Stock
Water Heater On/off Switch, 120-volt (replaces 9000767) 9000340
#11

Water heater diagram

Water heater on/off switch, 120-volt (replaces 9000767)

Part #9000340

Replaced by #100108389

?
Manufacturer substitution
This part replaces 9000340. Substitute parts can look different from the original.
$35.56
In Stock
Water Heater Heating Element Gasket 9000308
#1

Water heater diagram

Water heater heating element gasket

Part #9000308

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 9000308. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Thermostat 9002300
#4

Water heater diagram

Thermostat

Part #9002300

Replaced by #100108424

?
Manufacturer substitution
This part replaces 9002300. Substitute parts can look different from the original.
$30.00
In Stock
Wheelers Water Heater Temperature And Pressure Relief Valve 9000728
#10

Water heater diagram

Wheelers water heater temperature and pressure relief valve

Part #9000728

Replaced by #100108455

?
Manufacturer substitution
This part replaces 9000728. Substitute parts can look different from the original.
$35.56
In Stock
Kenmore Elite Water Heater Washer (replaces 0540042) 9001584
#8

Water heater diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
