Gas Water Heater

Model # GSX65HRRT100 Official State water heater

Here are the diagrams and repair parts for Official State GSX65HRRT100 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Shield 9003696
#24

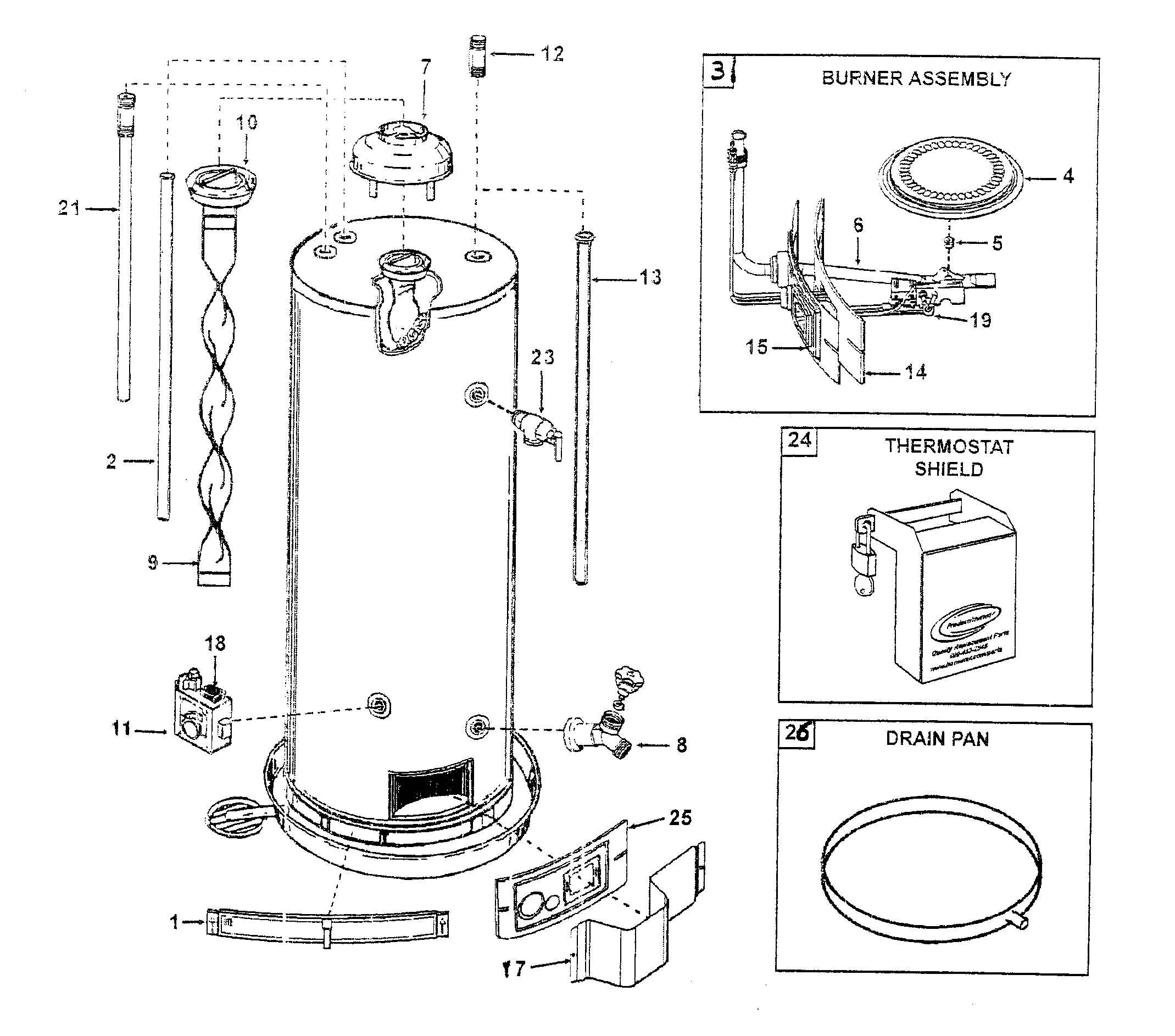

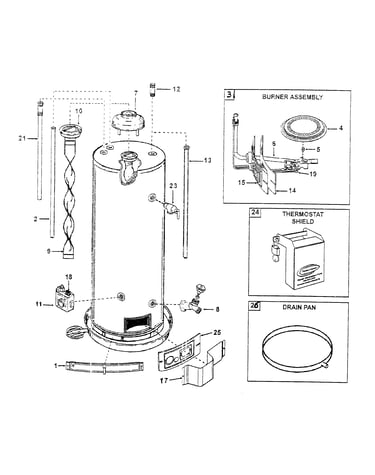

Water heater diagram

Shield

Part #9003696

$53.49
In Stock
Outer Door 9003545
#17

Water heater diagram

Outer door

Part #9003545

Replaced by #100109299

?
Manufacturer substitution
This part replaces 9003545. Substitute parts can look different from the original.
$35.56
In Stock
Drain Pan 23913-A
#26A

Water heater diagram

Drain pan

Part #23913-A

Replaced by #100108616

?
Manufacturer substitution
This part replaces 23913-A. Substitute parts can look different from the original.
$64.44
In Stock
Drain Pan 23914-A
#26B

Water heater diagram

Drain pan

Part #23914-A

Replaced by #100108615

?
Manufacturer substitution
This part replaces 23914-A. Substitute parts can look different from the original.
$92.22
In Stock
Ao Smith Water Heater Inspection Port (replaces 183568-000, 183569-001, 183570-000, 21253, 9003414005) 9003414
#25

Water heater diagram

Ao smith water heater inspection port (replaces 183568-000, 183569-001, 183570-000, 21253, 9003414005)

Part #9003414

Replaced by #100109224

?
Manufacturer substitution
This part replaces 9003414. Substitute parts can look different from the original.
$34.44
In Stock
Restrictor 9003524
#10

Water heater diagram

Restrictor

Part #9003524

Replaced by #100109288

?
Manufacturer substitution
This part replaces 9003524. Substitute parts can look different from the original.
$33.33
In Stock
Anode Rod 9003892
#2

Water heater diagram

Anode rod

Part #9003892

Replaced by #100109594

?
Manufacturer substitution
This part replaces 9003892. Substitute parts can look different from the original.
$55.56
In Stock
Drain Pan 23912-A
#26

Water heater diagram

Drain pan

Part #23912-A

Replaced by #100108459

?
Manufacturer substitution
This part replaces 23912-A. Substitute parts can look different from the original.
$63.33
In Stock
Water Heater Igniter (replaces 183798, 183798-000) 9003410
#18

Water heater diagram

Water heater igniter (replaces 183798, 183798-000)

Part #9003410

Replaced by #100109221

?
Manufacturer substitution
This part replaces 9003410. Substitute parts can look different from the original.
$25.71
In Stock
Water Heater Water Line Connector 9003719
#12

Water heater diagram

Water heater water line connector

Part #9003719

Replaced by #100108381

?
Manufacturer substitution
This part replaces 9003719. Substitute parts can look different from the original.
$22.86
In Stock
