Model # RFS9B-P1312001M Official Amana microwave

Here are the diagrams and repair parts for Official Amana RFS9B-P1312001M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

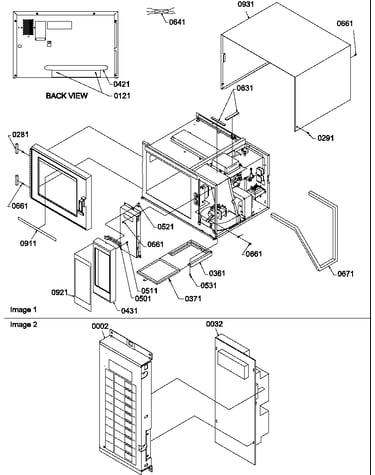

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Lamp 10664502
#711

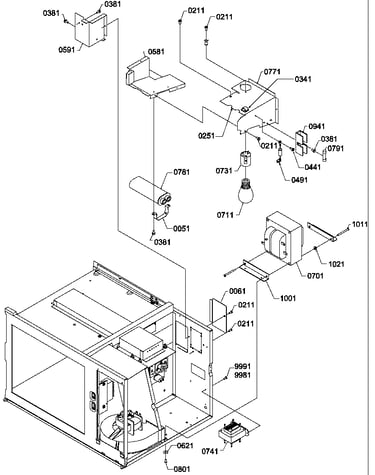

Transformer/light assy diagram

Lamp

Part #10664502

Replaced by #40A15

?
Manufacturer substitution
This part replaces 10664502. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Sealer M0275598

#181

All parts diagram

Sealer

Part #M0275598

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275598. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Screw M0216729
#801

Transformer/light assy diagram

Screw

Part #M0216729

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces M0216729. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0216515
#381

Transformer/light assy diagram

Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw M0234030
#211

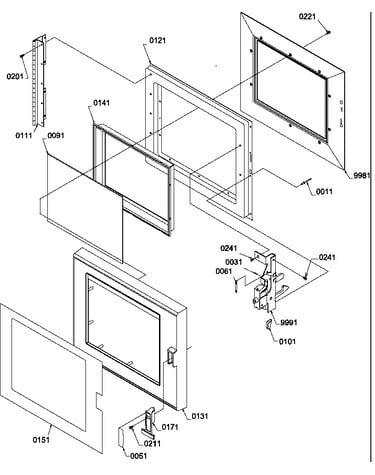

Door assy diagram

Screw

Part #M0234030

Replaced by #M0234030

?
Manufacturer substitution
This part replaces M0234030. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0234403
Screw

Part #M0234403

Replaced by #M0234403

?
Manufacturer substitution
This part replaces M0234403. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Eyelet M0571201
#561

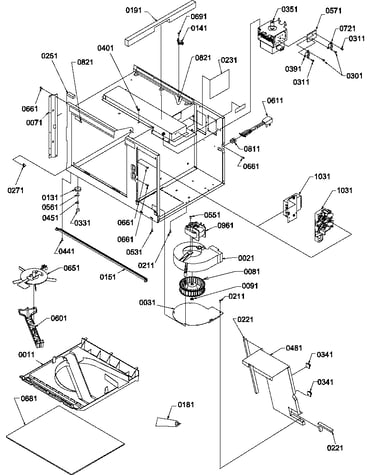

Cabinet assy diagram

Eyelet

Part #M0571201

Replaced by #M0571201

?
Manufacturer substitution
This part replaces M0571201. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Torx Screw M0216616
#241

Door assy diagram

Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, Tf M0231604
Screw, tf

Part #M0231604

Replaced by #12992301

?
Manufacturer substitution
This part replaces M0231604. Substitute parts can look different from the original.
$24.39 |
20% OFF Phone Price : $30.39
In Stock
Capacitor D8547934
#781

Transformer/light assy diagram

Capacitor

Part #D8547934

Replaced by #59001649

?
Manufacturer substitution
This part replaces D8547934. Substitute parts can look different from the original.
$31.49
In Stock
