Model # NF80L070S3A51 Official GE hvac-gas furnace

Here are the diagrams and repair parts for Official GE NF80L070S3A51 hvac-gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Lb-74940b Flame Sensor Kit (102431-02) 69W43
#210

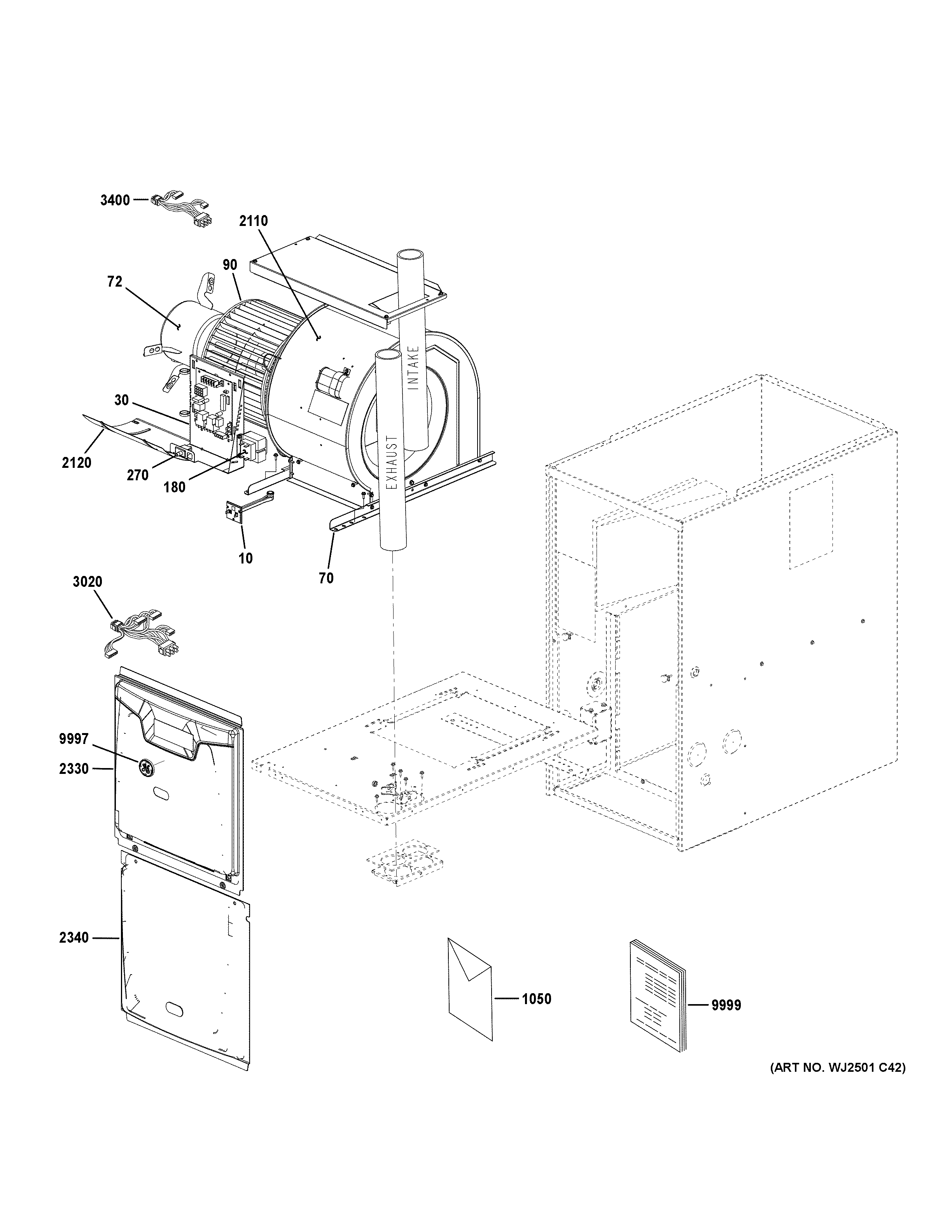

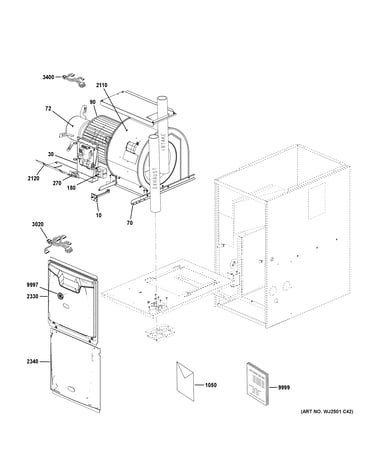

Cabinet (2) diagram

Lb-74940b flame sensor kit (102431-02)

Part #69W43

$63.98
In Stock
607436-03 Ignition Control Kit 16C81
#30

Cabinet (1) diagram

607436-03 ignition control kit

Part #16C81

$115.56
In Stock
607421-03 X 13 1/2hp Motor Prog. Blower 81W34
#71

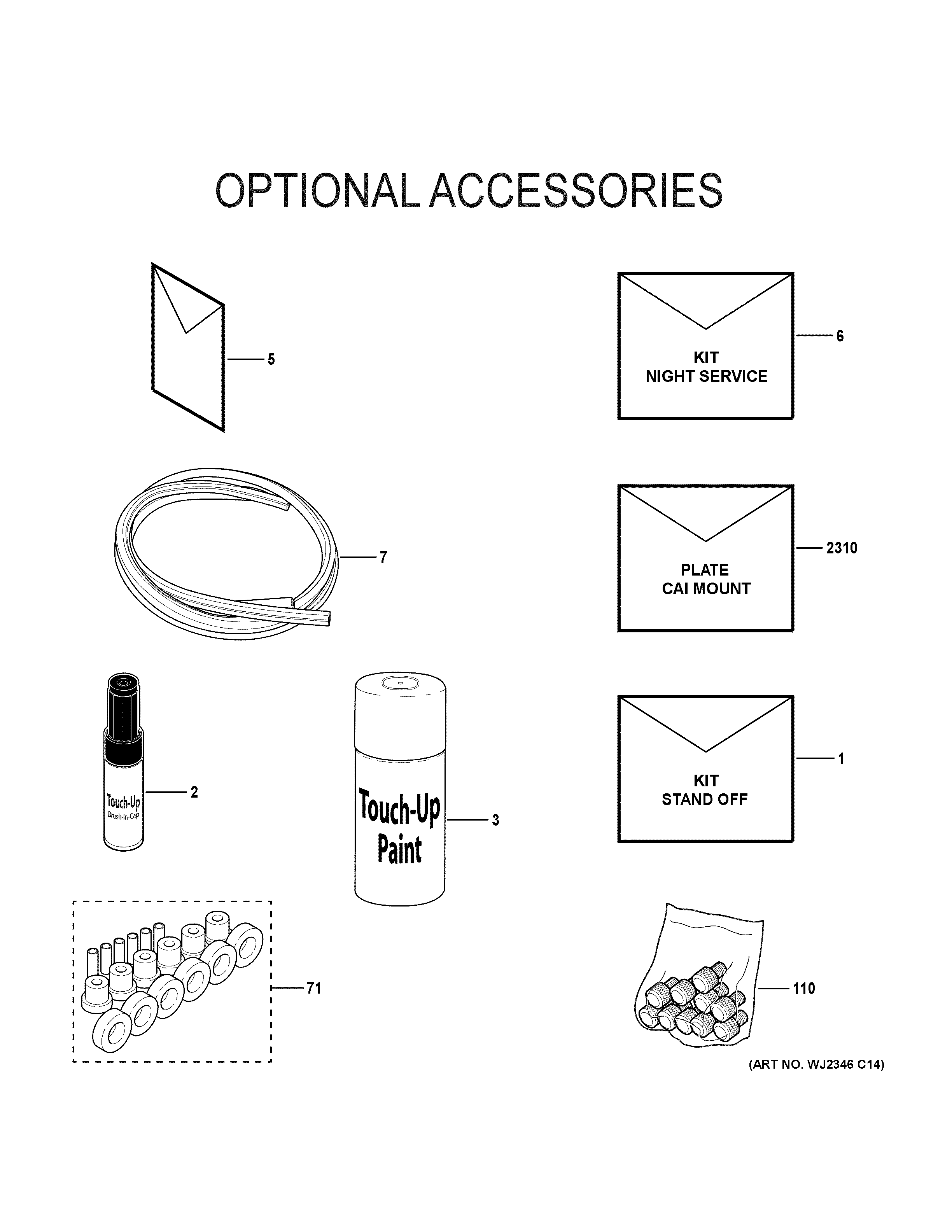

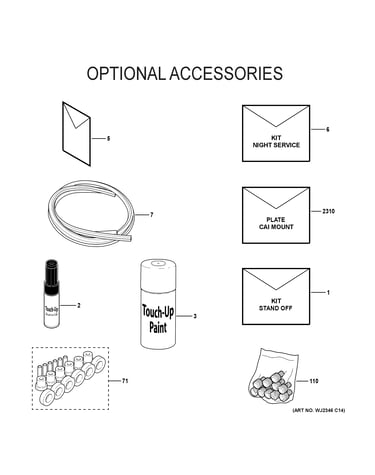

Optional accessories diagram

607421-03 x 13 1/2hp motor prog. blower

Part #81W34

$335.55
In Stock
607421-01 X 13 1/2hp Motor-prog..blower 81W32
#72

Cabinet (1) diagram

607421-01 x 13 1/2hp motor-prog..blower

Part #81W32

$335.55
In Stock
Lb-97803a Tubing-pressure Switch 98L78
#7

Optional accessories diagram

Lb-97803a tubing-pressure switch

Part #98L78

$58.22
In Stock
103247-05 Switch-pressure .68 80W53
#20

Cabinet (2) diagram

103247-05 switch-pressure .68

Part #80W53

$48.80
In Stock
102907-01 Roll Out Switch (210f) 71W49
#60

Cabinet (2) diagram

102907-01 roll out switch (210f)

Part #71W49

$31.60
In Stock
101910-05 Orifice-lp 61 69W94
#4

Cabinet (2) diagram

101910-05 orifice-lp 61

Part #69W94

$27.23
In Stock
Gea Badge 107213-05
#9997

Cabinet (1) diagram

Gea badge

Part #107213-05

$10.74
In Stock
42j3201 Transformer 42J32
#180

Cabinet (1) diagram

42j3201 transformer

Part #42J32

$28.00
In Stock
