Admiral (Kelon)
Room Air Conditioner

Model # AAWV-10CR1FAU Official Admiral (Kelon) air conditioner

Here are the diagrams and repair parts for Official Admiral (Kelon) AAWV-10CR1FAU air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Link Board 8120146
#25

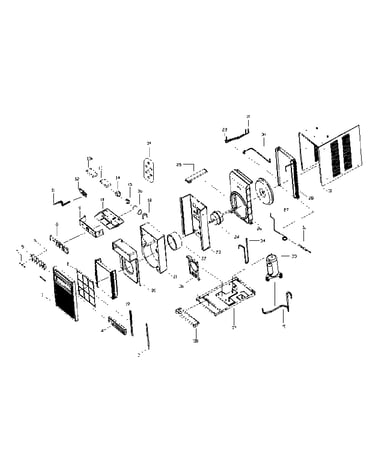

Cabinet parts diagram

Link board

Part #8120146

The manufacturer no longer makes this part, and there's no substitute part

Cover 8101052
#26

Cabinet parts diagram

Cover

Part #8101052

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 81301140
#19

Cabinet parts diagram

Evaporator

Part #81301140

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 8110647
#38

Cabinet parts diagram

Drain pan

Part #8110647

The manufacturer no longer makes this part, and there's no substitute part

Plate 8201289
#9

Cabinet parts diagram

Plate

Part #8201289

The manufacturer no longer makes this part, and there's no substitute part

Chassis 81002169
#37

Cabinet parts diagram

Chassis

Part #81002169

The manufacturer no longer makes this part, and there's no substitute part

Transformer 8140512
#14

Cabinet parts diagram

Transformer

Part #8140512

The manufacturer no longer makes this part, and there's no substitute part

Filter 8110534
#2

Cabinet parts diagram

Filter

Part #8110534

The manufacturer no longer makes this part, and there's no substitute part

Air Door 8120422
#11

Cabinet parts diagram

Air door

Part #8120422

The manufacturer no longer makes this part, and there's no substitute part

Suction Pipe 813032377
#35

Cabinet parts diagram

Suction pipe

Part #813032377

The manufacturer no longer makes this part, and there's no substitute part
