Model # 842240511 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 842240511 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Nut 4119
#57

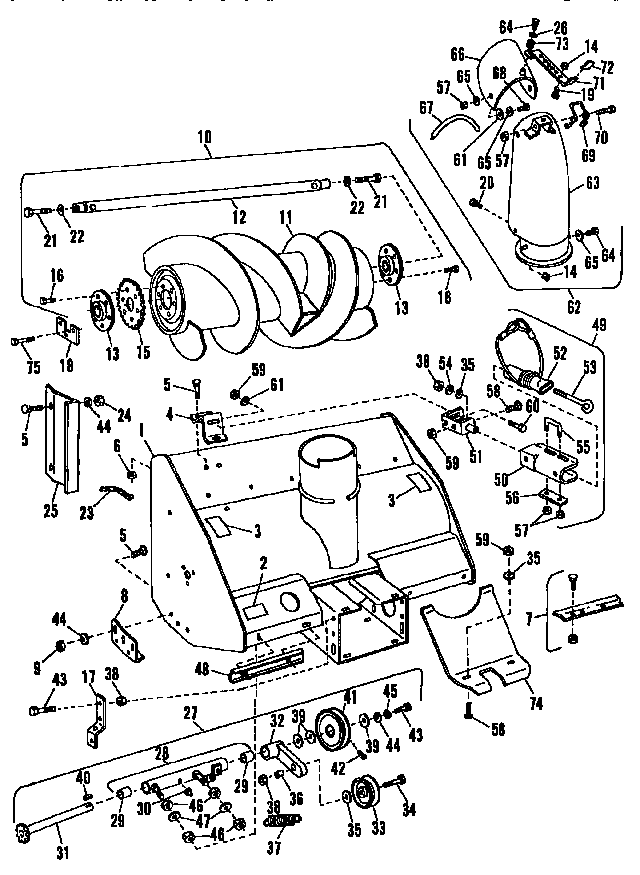

Auger assembly diagram

Nut

Part #4119

The manufacturer no longer makes this part, and there's no substitute part

Bolt 7953
#5

Auger assembly diagram

Bolt

Part #7953

The manufacturer no longer makes this part, and there's no substitute part

Nut STD541431
Nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Pulley 15015
Pulley

Part #15015

The manufacturer no longer makes this part, and there's no substitute part

Spring 3059
#7

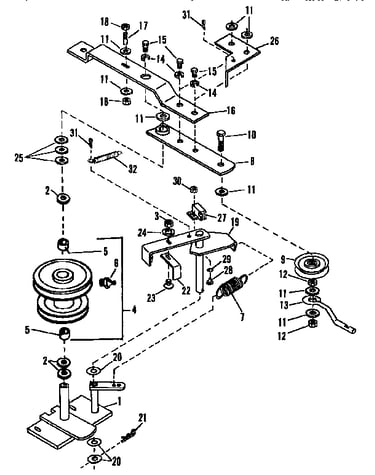

Pulley assembly diagram

Spring

Part #3059

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM-271190
Nut washer

Part #GM-271190

The manufacturer no longer makes this part, and there's no substitute part

Ramp Anchr B 21717
#83

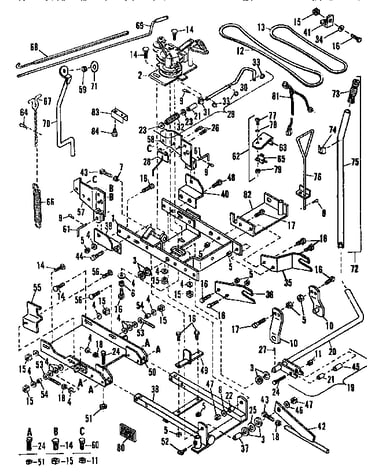

Main frame diagram

Ramp anchr b

Part #21717

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM-271184
Nut washer

Part #GM-271184

The manufacturer no longer makes this part, and there's no substitute part

Thumb Screw 21797

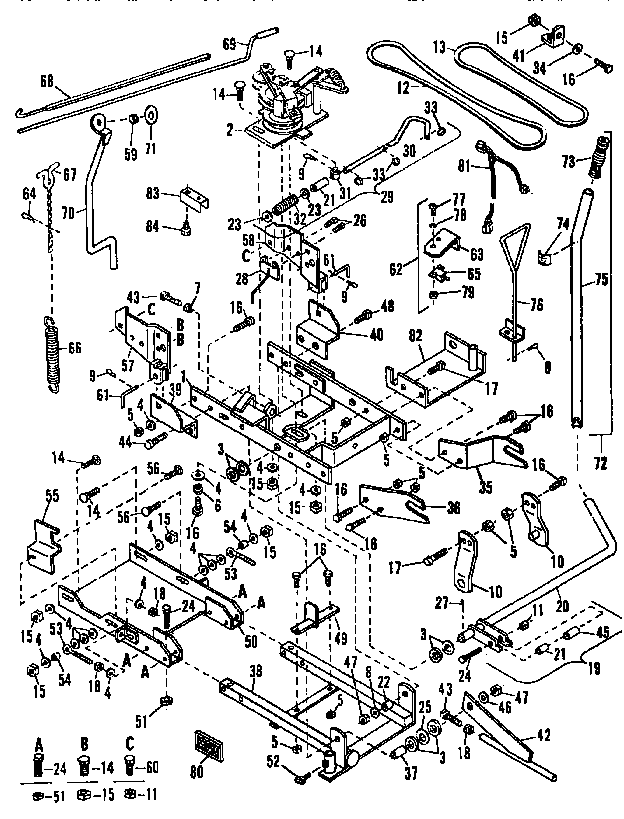

#52

Main frame diagram

Thumb screw

Part #21797

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Snowblower Attachment Wire Harness 22129
#81

Main frame diagram

Lawn tractor snowblower attachment wire harness

Part #22129

The manufacturer no longer makes this part, and there's no substitute part
