Model # 4383AT-1 Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4383AT-1 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

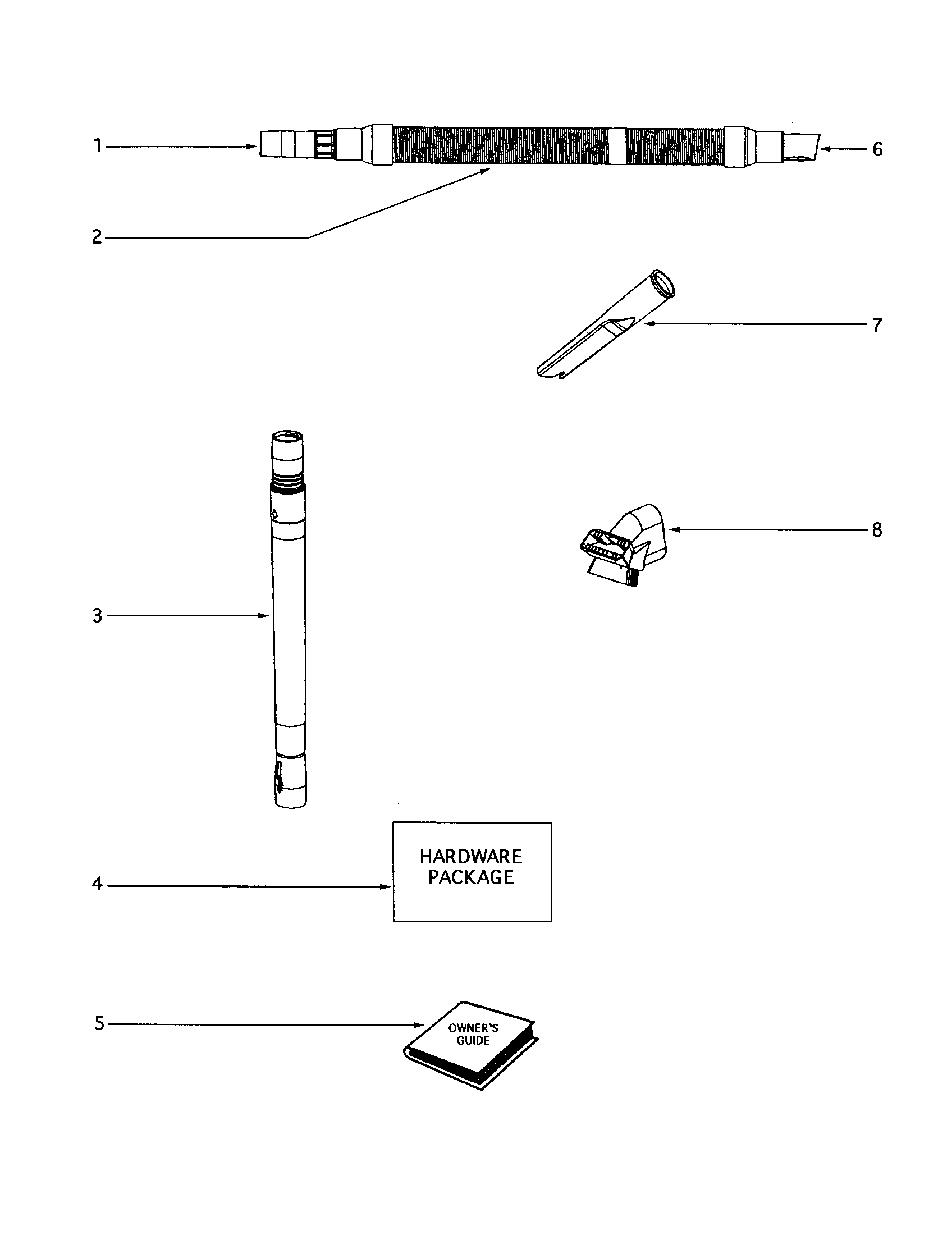

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Gasket 58506-1
#5

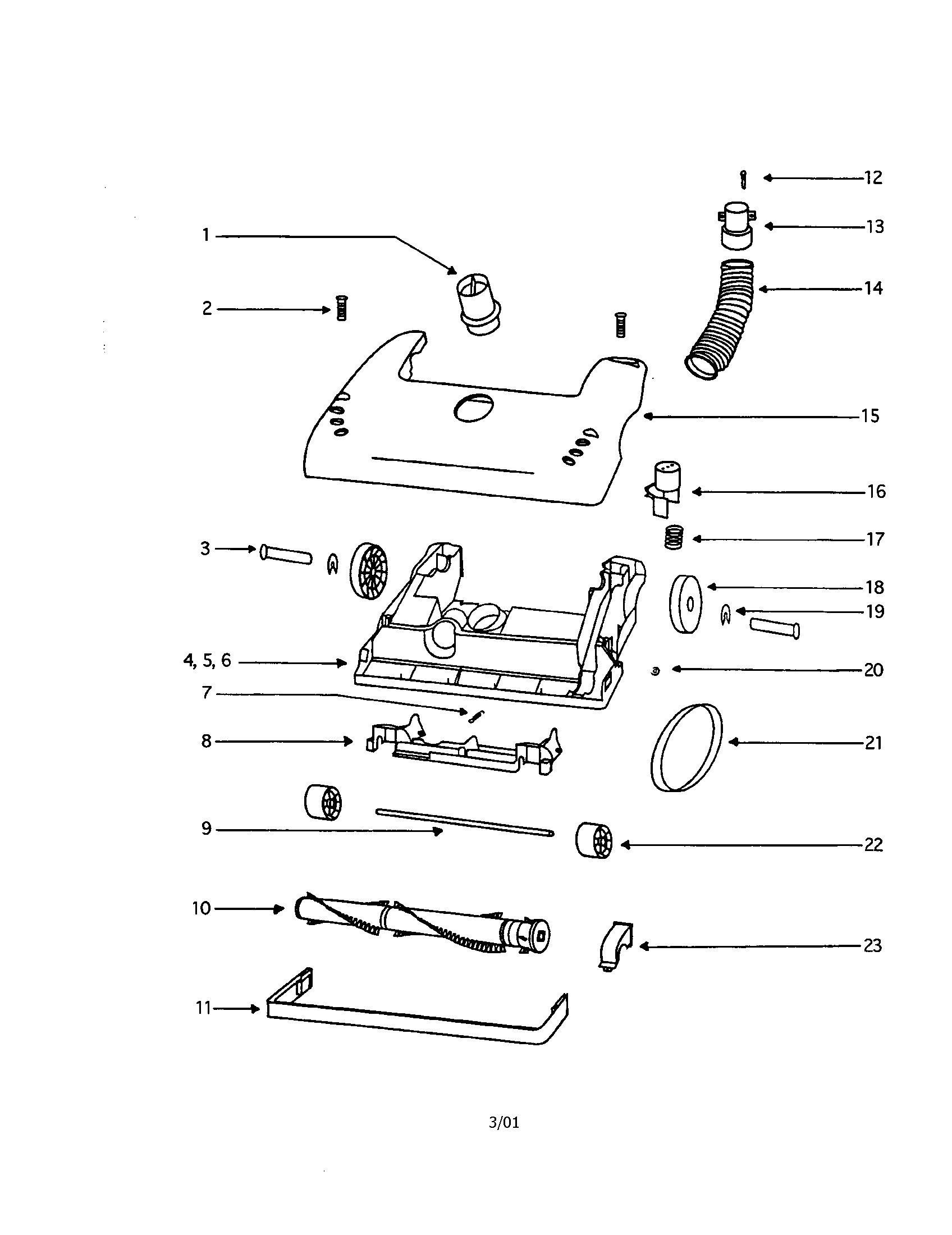

Base diagram

Gasket

Part #58506-1

The manufacturer no longer makes this part, and there's no substitute part

Adapter 59361A
#23

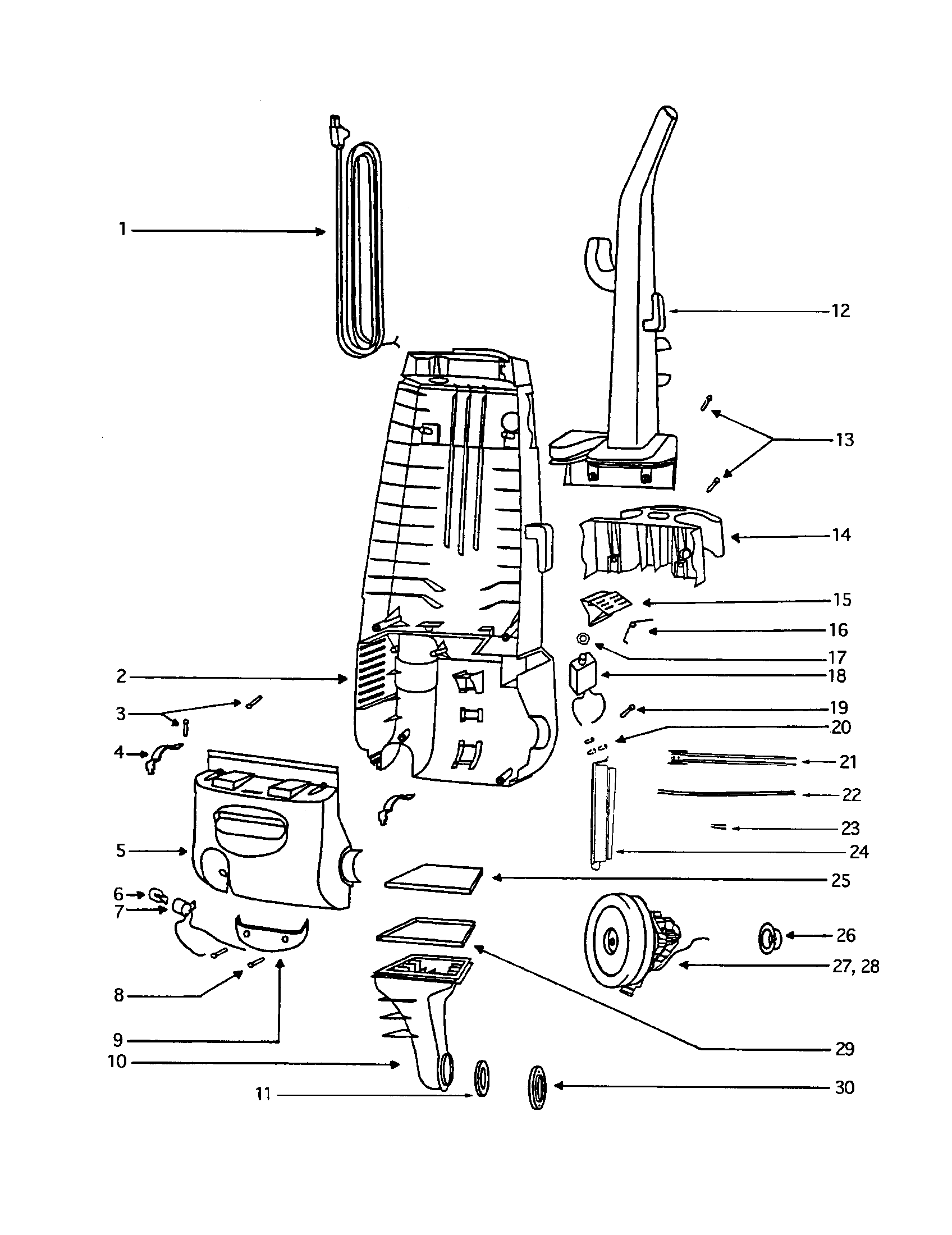

Motor cover diagram

Adapter

Part #59361A

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59595-1
#11

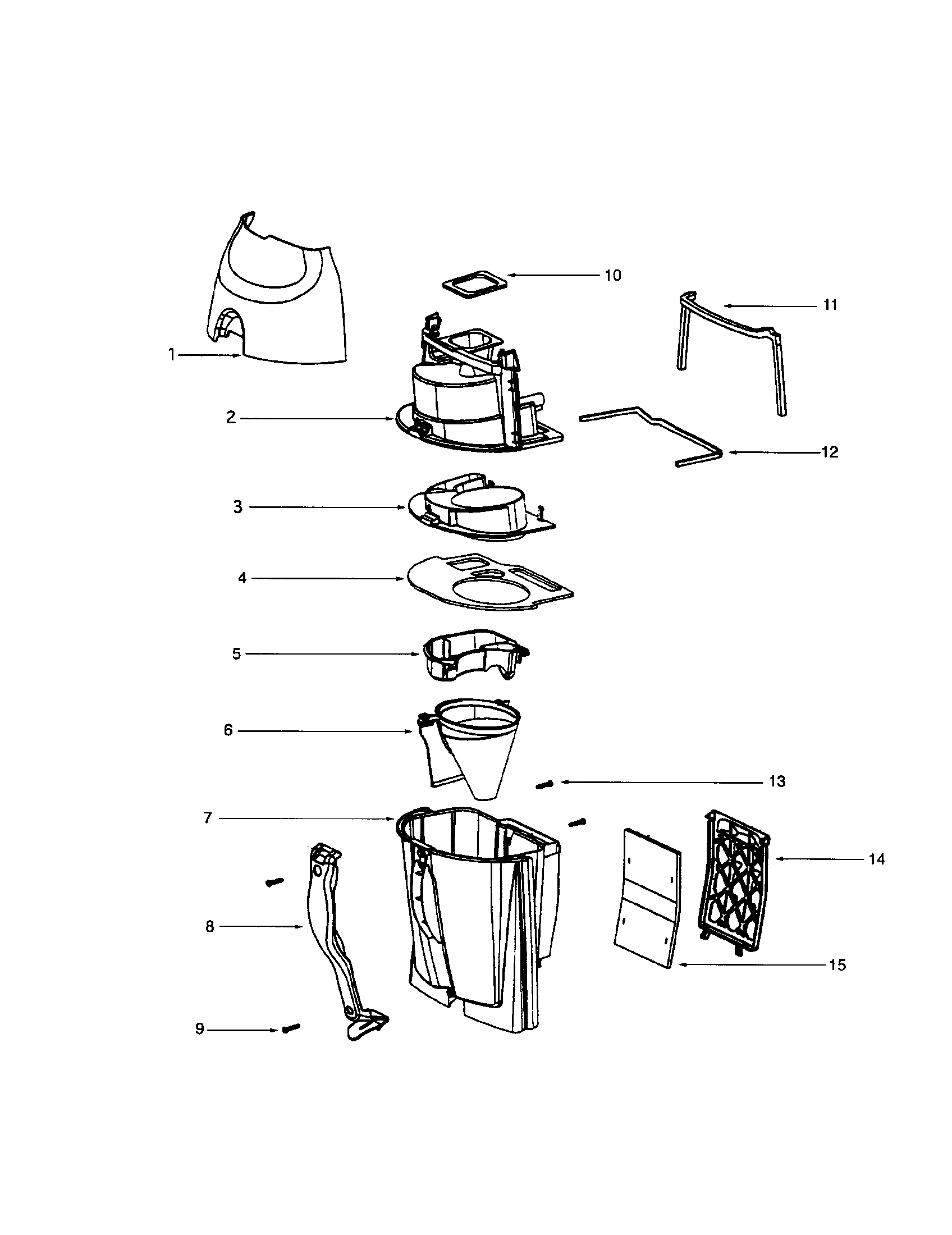

Cyclone diagram

Gasket

Part #59595-1

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#9

Motor cover diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Tube 59362B
#22

Motor cover diagram

Tube

Part #59362B

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle 38590A
#3

Base diagram

Rear axle

Part #38590A

The manufacturer no longer makes this part, and there's no substitute part

Cuff Hose 27468D-119N
#13

Base diagram

Cuff hose

Part #27468D-119N

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Spring 54943
#7

Base diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 39252-2
#21

Motor cover diagram

Thermostat

Part #39252-2

The manufacturer no longer makes this part, and there's no substitute part

Cyclone 60705-3
#2

Cyclone diagram

Cyclone

Part #60705-3

The manufacturer no longer makes this part, and there's no substitute part
