Model # 22994135 Official Kenmore oil-fired hot water boiler

Here are the diagrams and repair parts for Official Kenmore 22994135 oil-fired hot water boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Pump 9436

#NI

All parts diagram

Pump

Part #9436

Replaced by #103251

?
Manufacturer substitution
This part replaces 9436. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
Screw 100133
#2

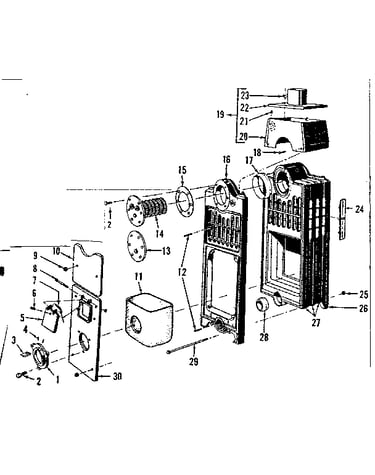

Combustion chamber and flue collector diagram

Screw

Part #100133

The manufacturer no longer makes this part, and there's no substitute part

Comb Chamber 144
#11A

Combustion chamber and flue collector diagram

Comb chamber

Part #144

Replaced by #2272183

?
Manufacturer substitution
This part replaces 144. Substitute parts can look different from the original.
$320.58
In Stock
Comb Chamber 369
#11C

Combustion chamber and flue collector diagram

Comb chamber

Part #369

Replaced by #2272185

?
Manufacturer substitution
This part replaces 369. Substitute parts can look different from the original.
$402.78
In Stock
P/t Gauge 8879
#4

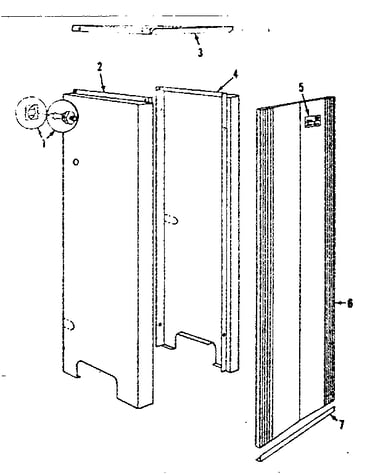

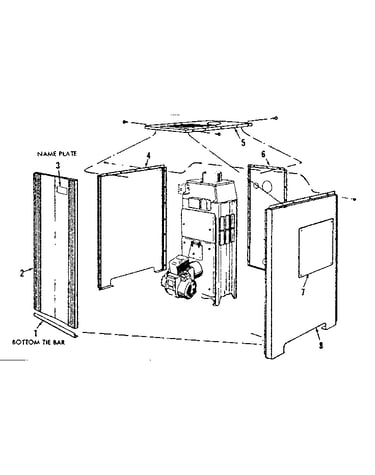

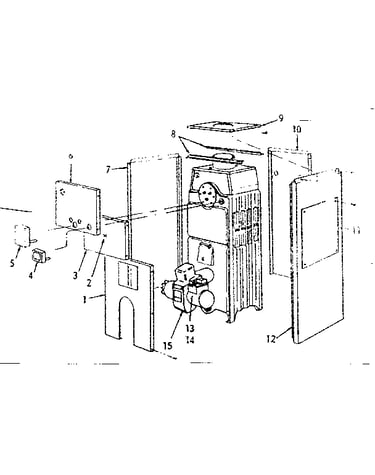

Boiler jackets diagram

P/t gauge

Part #8879

Replaced by #1260006SP

?
Manufacturer substitution
This part replaces 8879. Substitute parts can look different from the original.
$52.91
In Stock
Comb Chamber 368
#11B

Combustion chamber and flue collector diagram

Comb chamber

Part #368

Replaced by #2272184

?
Manufacturer substitution
This part replaces 368. Substitute parts can look different from the original.
$297.69 |
$12.00 OFF Phone Price : $309.69
In Stock
Burner Oil 348.78729
#15B

Boiler jackets diagram

Burner oil

Part #348.78729

The manufacturer no longer makes this part, and there's no substitute part

Plate 13-6A
#24

Combustion chamber and flue collector diagram

Plate

Part #13-6A

The manufacturer no longer makes this part, and there's no substitute part

Tankles Coil 1365-50
#14A

Combustion chamber and flue collector diagram

Tankles coil

Part #1365-50

The manufacturer no longer makes this part, and there's no substitute part

Burner Oil 348.78728
#15A

Boiler jackets diagram

Burner oil

Part #348.78728

The manufacturer no longer makes this part, and there's no substitute part
