Dacor
Dishwasher

Model # EDWH24S Official Dacor dishwasher

Here are the diagrams and repair parts for Official Dacor EDWH24S dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

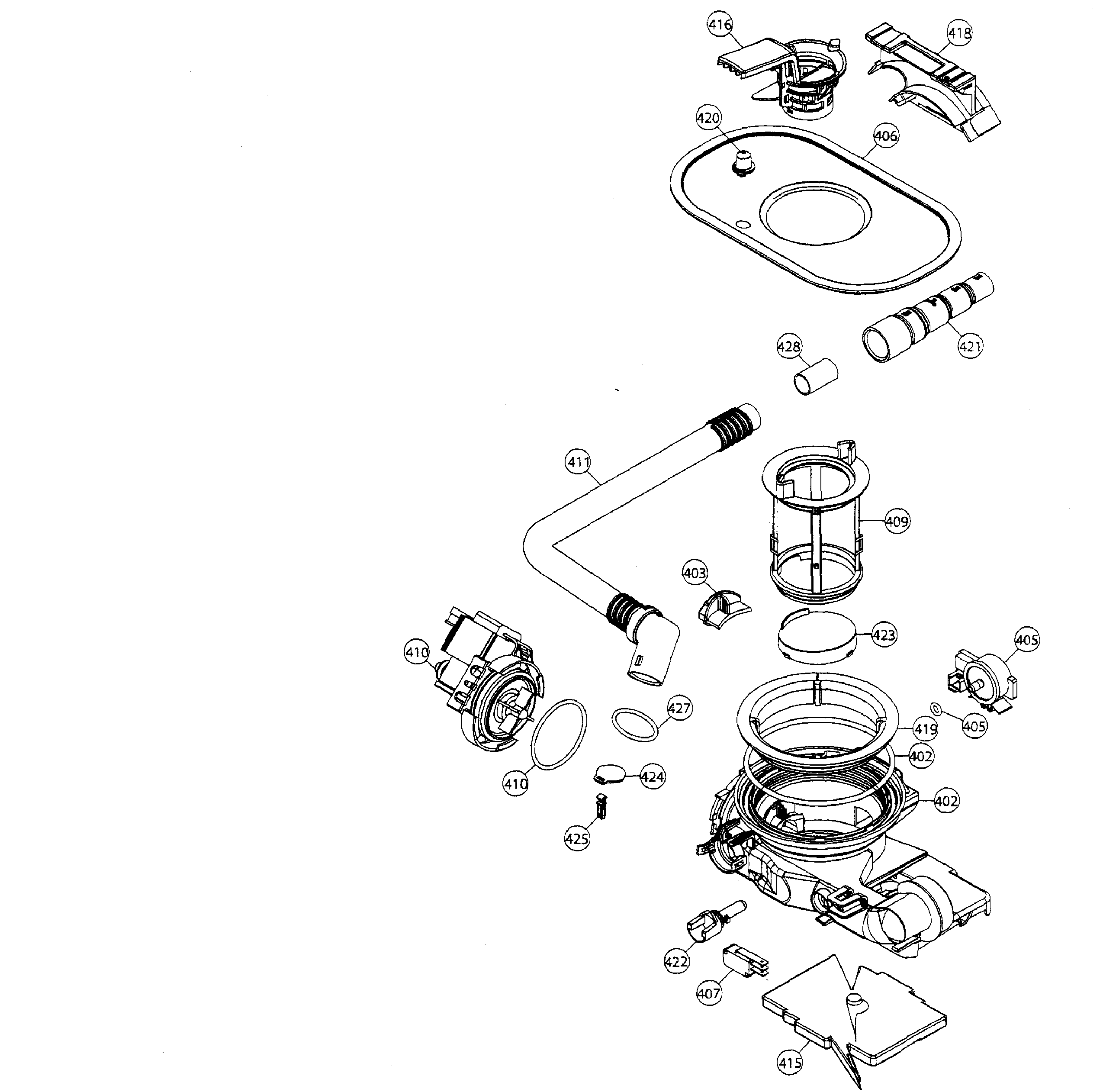

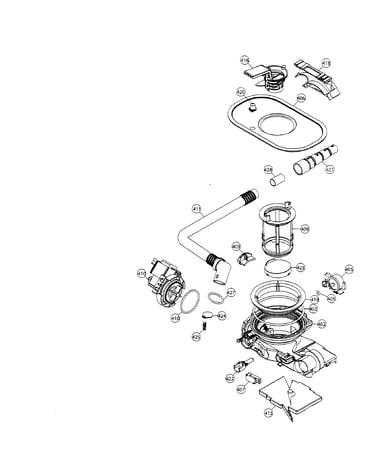

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Door Strip 105108
#227

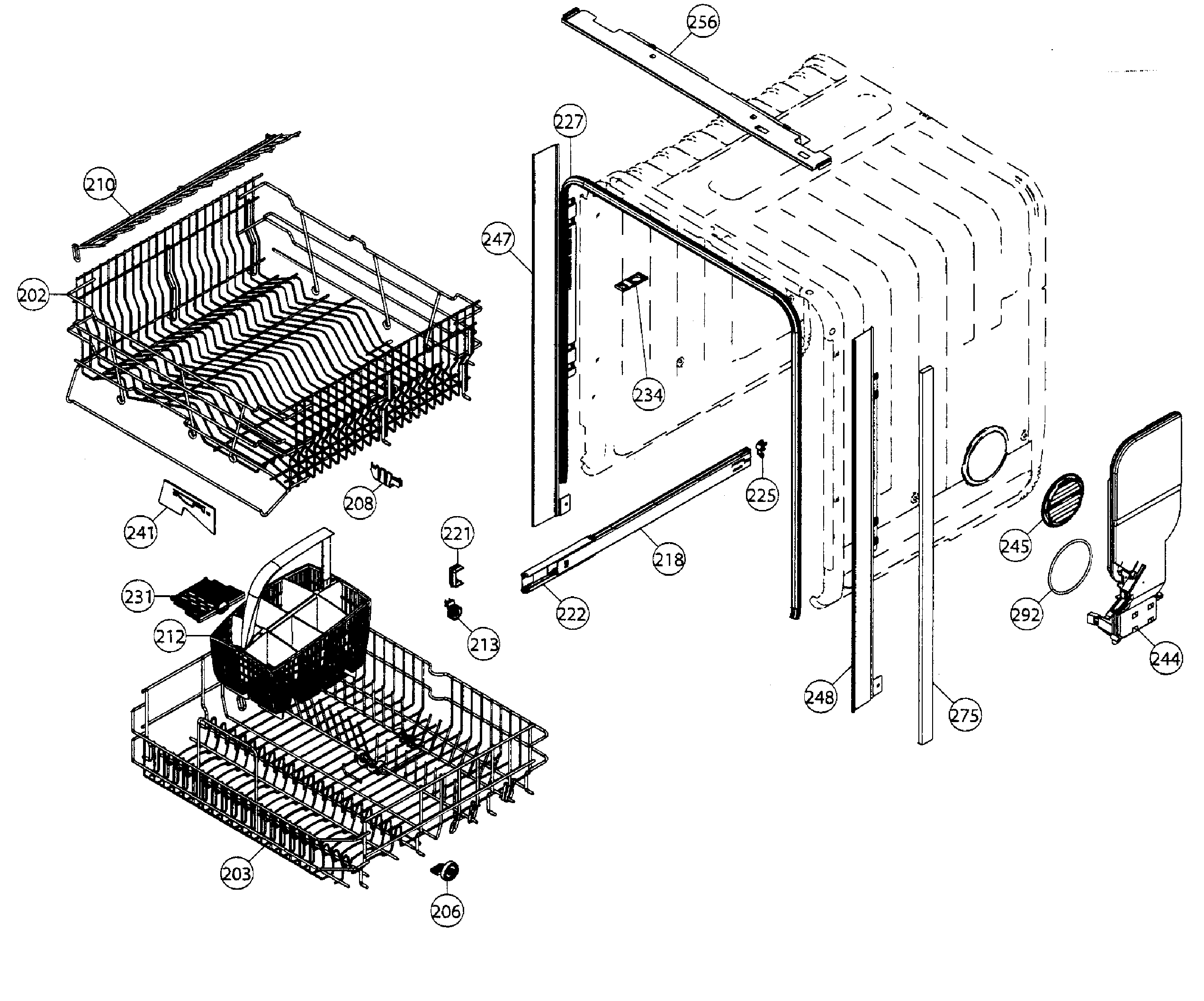

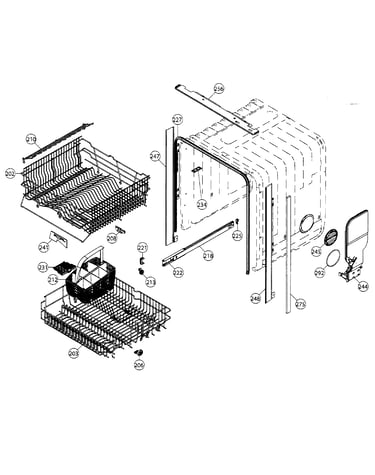

Baskets assy diagram

Door strip

Part #105108

$93.49
In Stock
Inner Door 105263
#501

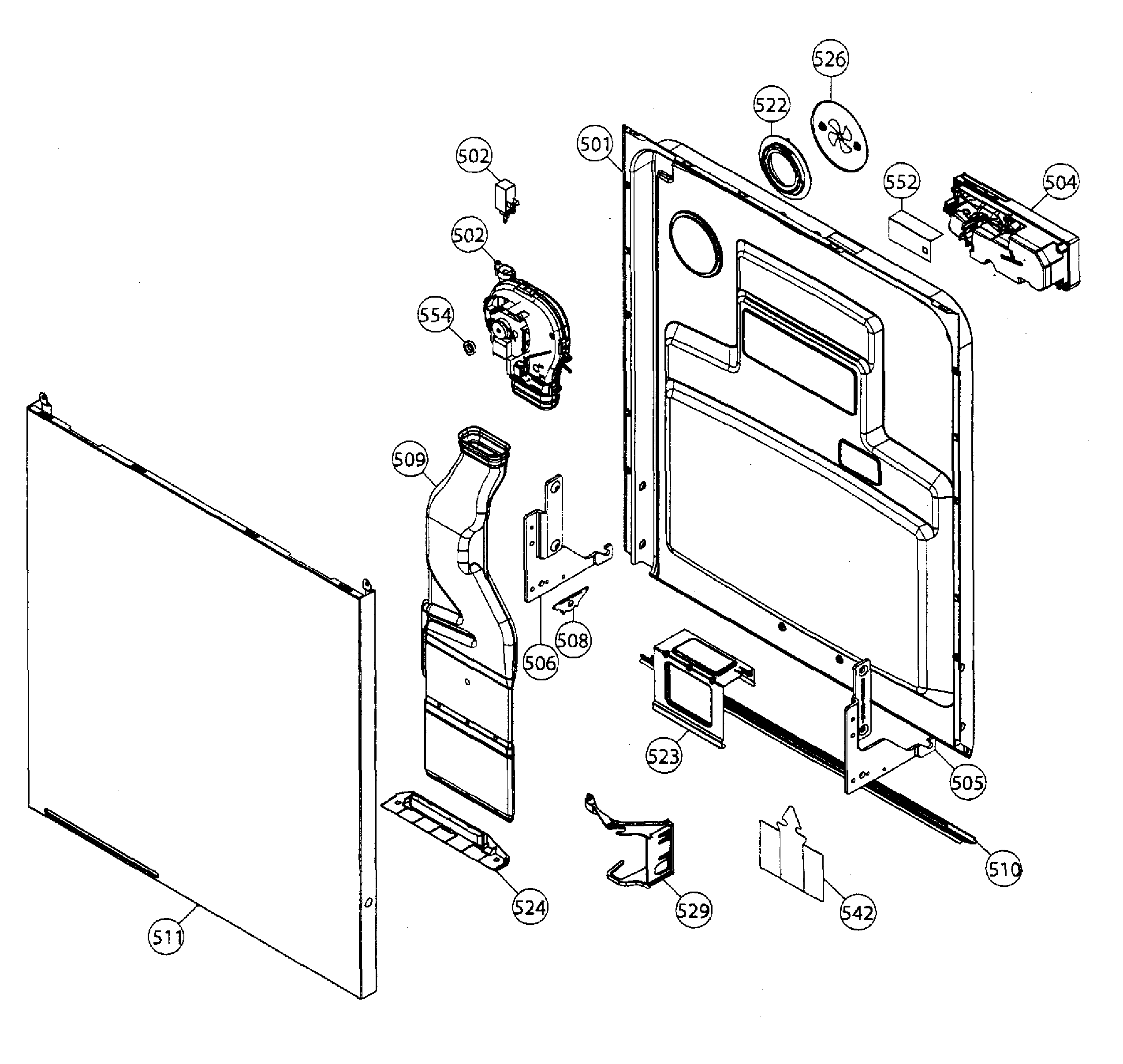

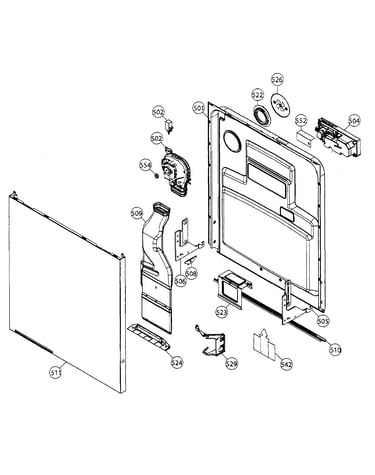

Door assy diagram

Inner door

Part #105263

$478.49
In Stock
Sealing 105191
#306

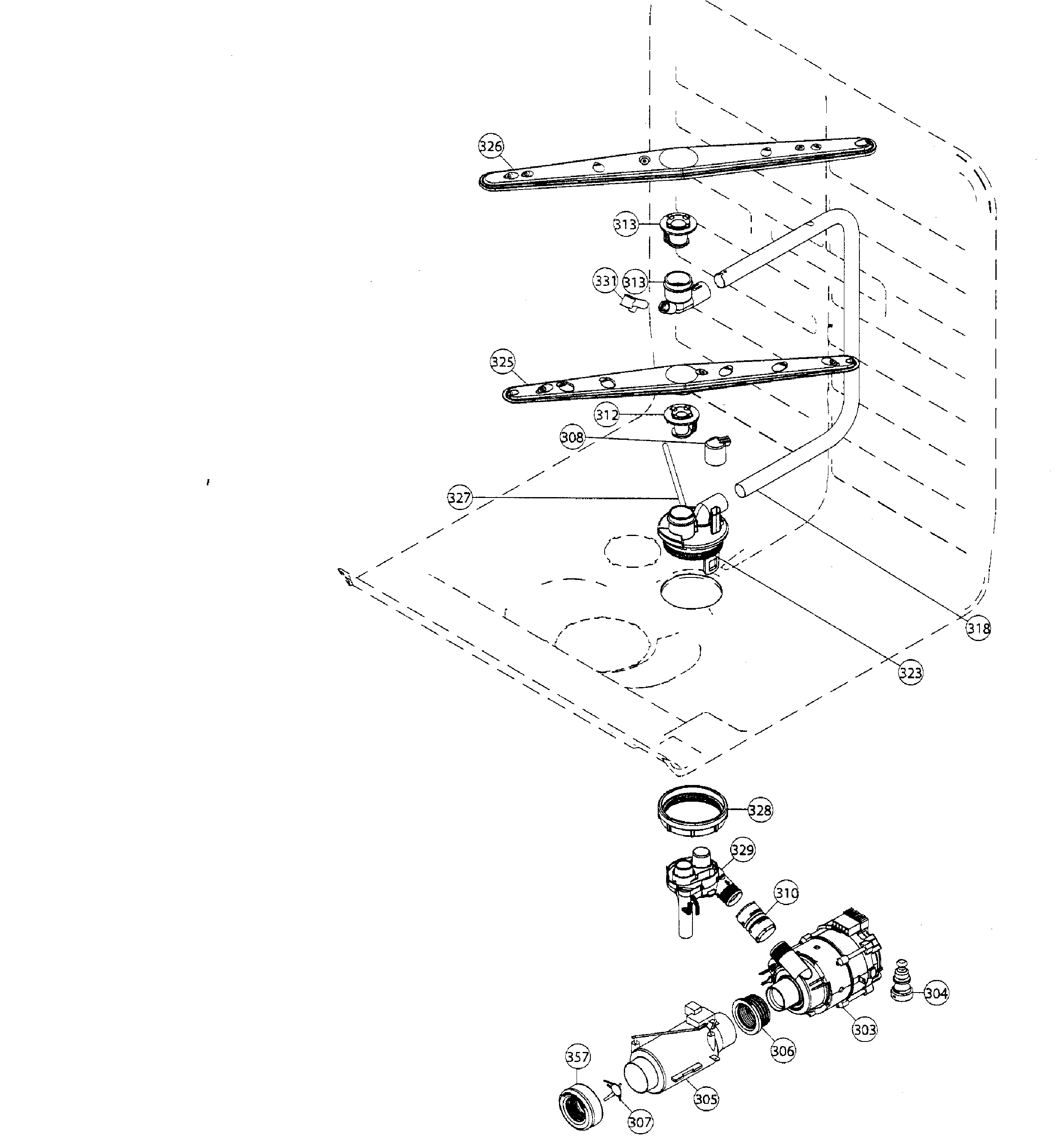

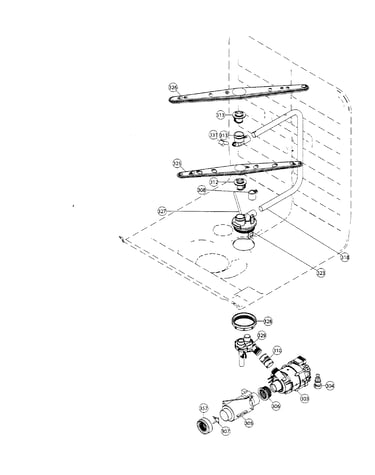

Wash system diagram

Sealing

Part #105191

$19.99
In Stock
Panel 105167
#102

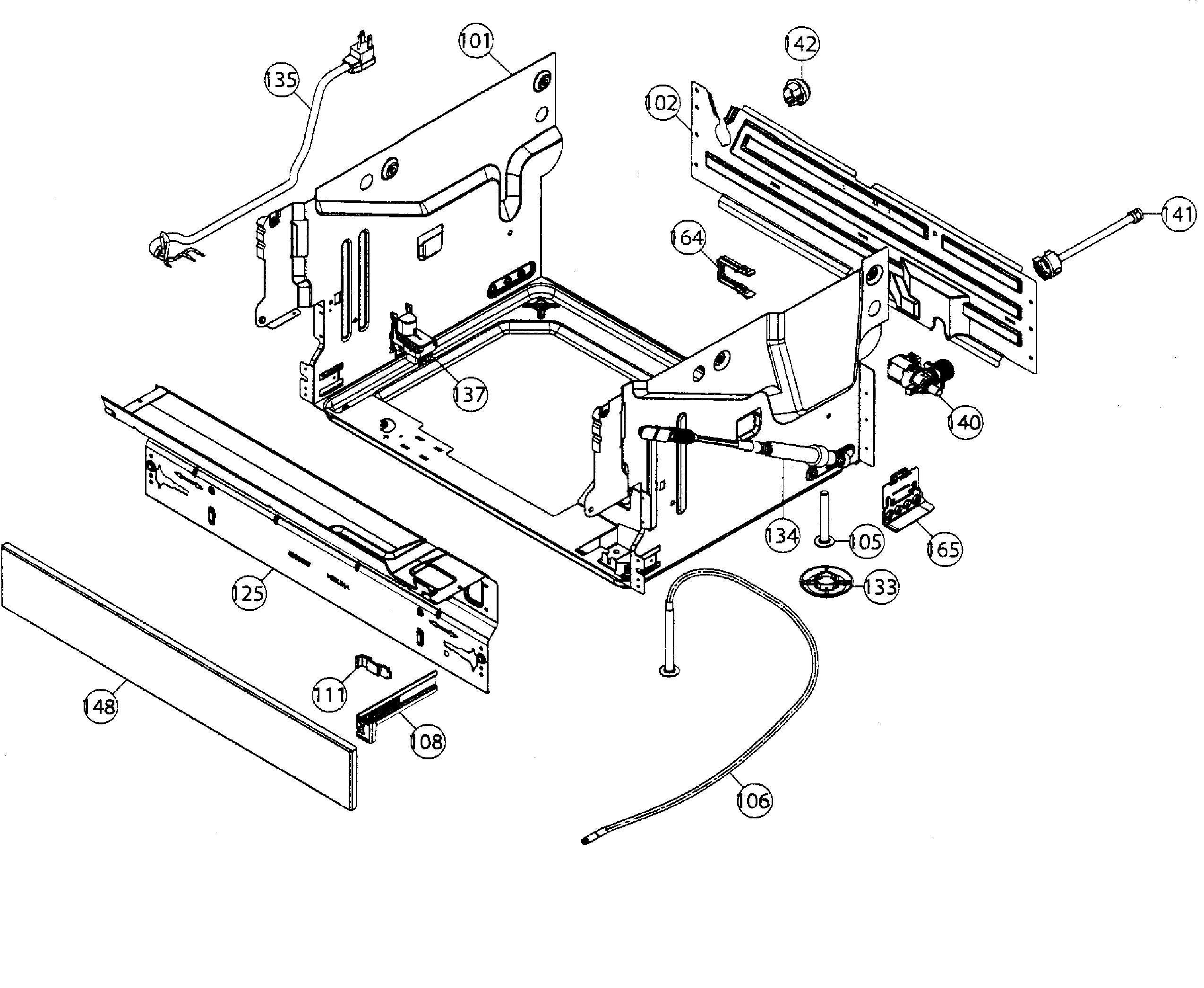

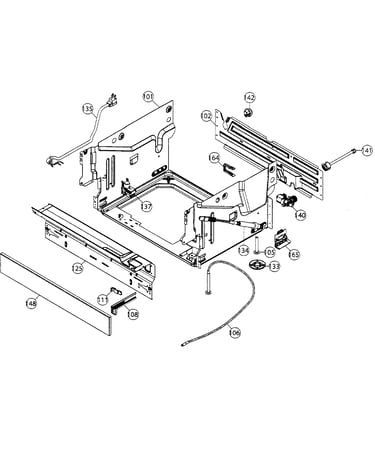

Base assy diagram

Panel

Part #105167

$31.49
In Stock
Cable Set 105281
#610

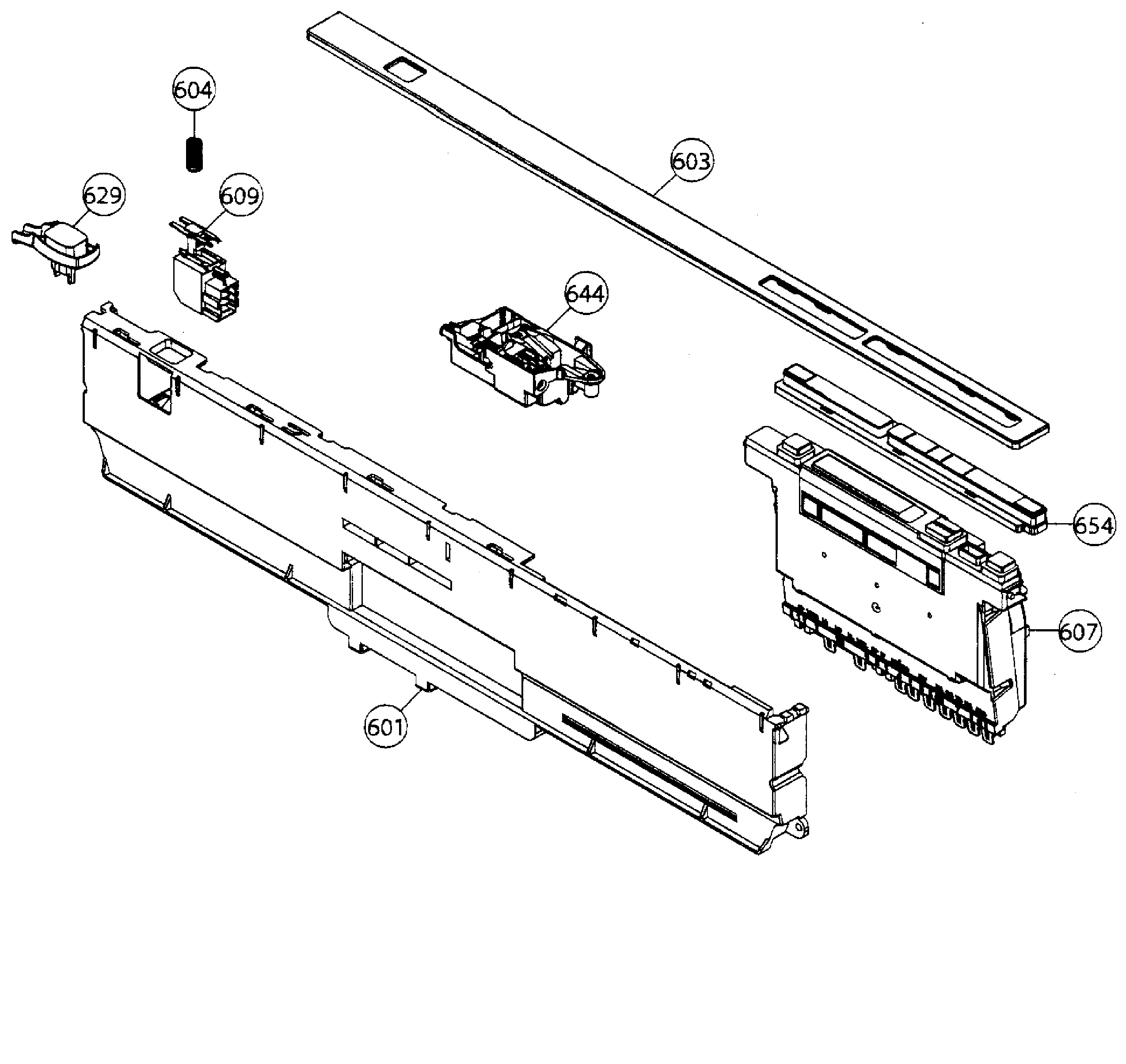

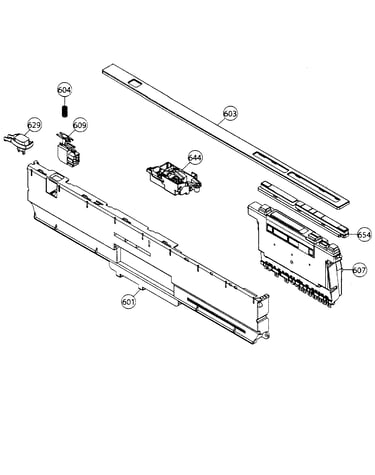

Control panel diagram

Cable set

Part #105281

$26.99
In Stock
Cable Set 105174
#616

Control panel diagram

Cable set

Part #105174

$33.49
In Stock
Channel 105177
#329

Wash system diagram

Channel

Part #105177

$37.99
In Stock
Wine Shelf 105122
#210

Baskets assy diagram

Wine shelf

Part #105122

$68.49
In Stock
Spacer Motor 105260
#554

Door assy diagram

Spacer motor

Part #105260

$11.99
In Stock
Spray Arm 105131
#325

Wash system diagram

Spray arm

Part #105131

$115.99
In Stock
